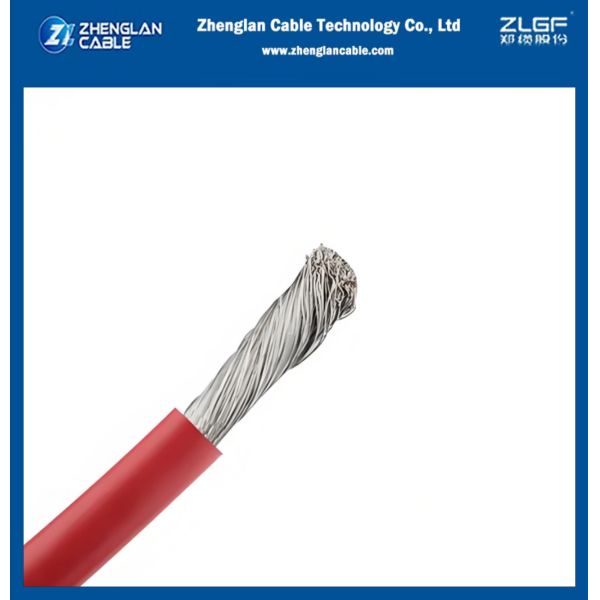

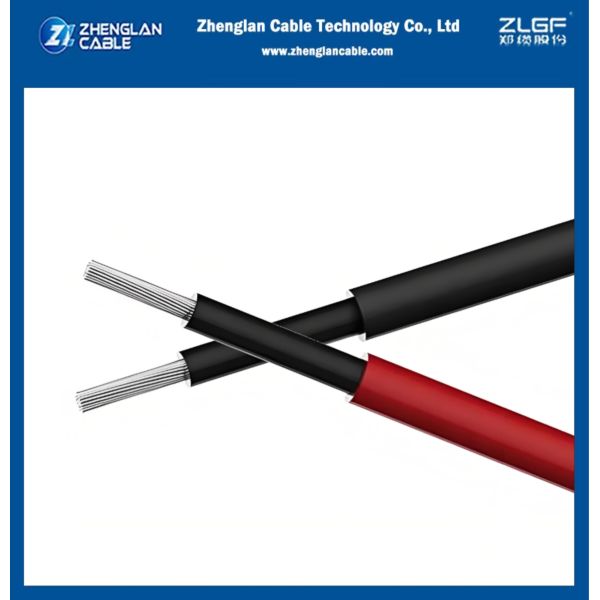

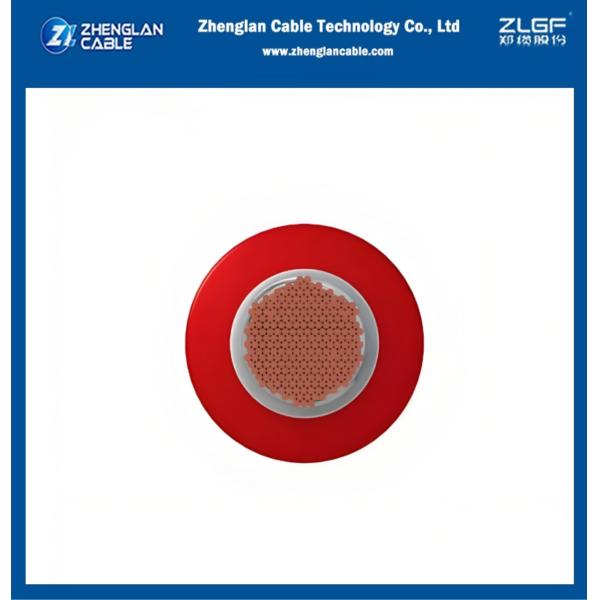

Photovoltaic Cable DC 1.5KV CU/XLPO/XLPO 4mm2 Tinned coppersolar cable H1Z2Z2-K
Photovoltaic Cable DC 1.5KV CU/XLPO/XLPO 4mm2 Tinned coppersolar cable H1Z2Z2-K
Photovoltaic Cable DC 1.5KV CU/XLPO/XLPO 4mm2 Tinned coppersolar cable H1Z2Z2-K
Photovoltaic Cable DC 1.5KV CU/XLPO/XLPO 4mm2 Tinned coppersolar cable H1Z2Z2-K
Photovoltaic Cable DC 1.5KV CU/XLPO/XLPO 4mm2 Tinned coppersolar cable H1Z2Z2-K
Photovoltaic Cable DC 1.5KV CU/XLPO/XLPO 4mm2 Tinned coppersolar cable H1Z2Z2-K
Specifications
Brand Name :
Zhenglan Cable
Model Number :
solar cable 4mm2
Certification :
3C，ISO 9001:2015，ISO 14001:2005
Place of Origin :
China
MOQ :
5000meters single color
Price :
Negotiable
Payment Terms :
T/T,L/C,,Western Union
Supply Ability :
80000M/DAY
Delivery Time :
7-15DAY
Packaging Details :
1000m/drum
Material :
Tinned Copper
Insulation :
cross linkedin polyolefin
Outer sheath :
cross linkedin polyolefin
Size :
4mm2
Standard :
EN50618, EN50332-1
Voltage :
DC 1.5KV
Description

Description

Single core, solar (photovoltaic) cable with a conductor cross-sectional area of 4mm² and a nominal current carrying capacity of 55A at 60°C.

Manufactured to European standard H1Z2Z2-K with a flexible, stranded, tinned copper conductor and a black, UV resistant sheath to prevent fade and degradation.

Ideal for small to medium sized solar panel installations on campervans, motorhomes, caravans and boats.

Specifications


  • Voltage rating: 1500V DC
  • Nominal current rating: 55A (up to 60°C - derate at higher temps)
  • Nominal conductor cross sectional area: 4.0mm²
  • Maximum overall cable diameter: 5.6mm
  • Conductor material: Class 5 flexible tinned copper
  • Conductor resistance @ 20°C: 5.09 Ω/km
  • Insulation material: Halogen-free cross-linked compound
  • Sheath material: Halogen-free cross-linked, flame retardant compound
  • Sheath insulation colour: Black
  • Minimum band radius: 5 x OD
  • Temperature rating: -40°C to +90°C
  • Standards: See datasheet under the Manuals & Guides tab
Nominal Section
(mm²)
Nominal Stranding
(mm)
Core Structure
No./Dia.
(mm)
Nominal Insulation Thickness
(mm)
Nominal Sheath Thickness
(mm)
Max.O.D.
(mm)
Reference Weight
(kg/km)
1×4.0
56/0.30
2.59
1.14
0.82
6.4
87
