Aluminum Conductor AAC 705MCM Arbutus 402.8MCM 37/3.72mm ASTMB231/231M
Aluminum Conductor AAC 705MCM Arbutus 402.8MCM 37/3.72mm ASTMB231/231M
Specifications
Brand Name :
Zhenglan Cable
Model Number :
Aluminum conductor AAC Arbutus 402.8MCM 37/3.72mm ASTMB231/231M
Certification :
CE ISO CCC
Place of Origin :
Henan,China
MOQ :
1000m
Price :
1-15USD/meter
Payment Terms :
T/T, L/C, Western Union...
Supply Ability :
50000m/day
Delivery Time :
≥10days
Packaging Details :
Export wooden drum & iron wooden drum or as customer require
Conductor Material :
Aluminum conductors
Conductor Type :
Stranded
Application :
Overhead
Standard :
BS IEC ASTM DIN
Description

Aluminum conductor AAC Arbutus 402.8MCM 37/3.72mm ASTMB231/231M

Aluminum conductor AAC Arbutus 402.8MCM 37/3.72mm ASTMB231/231M Application:

Bare aluminum conductor are made of stranded 1350 aluminum. They are classified as follows:
Class AA For bare conductors usually used in overhead lines.
Class A For conductors to be covered with weather-resistant materials and for bare conductors where greater flexibility is required.
Compact strand conductor for use in bare overhead applications or for use with weather-resistant coverings or insulations is also available.

Aluminum conductor AAC Arbutus 402.8MCM 37/3.72mm ASTMB231/231 Manufacture Standard
AAC bare conductors meet or exceed the following ASTM specifications :
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-400 Compact Round Concentric-Lay-Stranded Aluminum 1350 Conductors
Aluminum conductor AAC Arbutus 402.8MCM 37/3.72mm ASTMB231/231M Features:
Single stranded conductor is flexible and durable
All aluminum construction is relatively lightweight and cost-effective
Higher corrosion resistance than ACSR
No insulation or jacket
Applications:
Overhead power transmission
Extra High Voltage (EHV) transmission lines
Primary and secondary distribution
Sub-service spans down to private premises
Maintains high ampacity
Suitable for shorter spans on towers and poles

Aluminum conductor AAC 705MCM Arbutus 402.8MCM 37/3.72mm ASTMB231/231M Technical data

Code Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
AWG&MCM mm2 No.×mm mm kg/km KN Ω/Km A
Arbutus 795 402.8 37/3.72 26.04 1109 61.8 0.0715 605

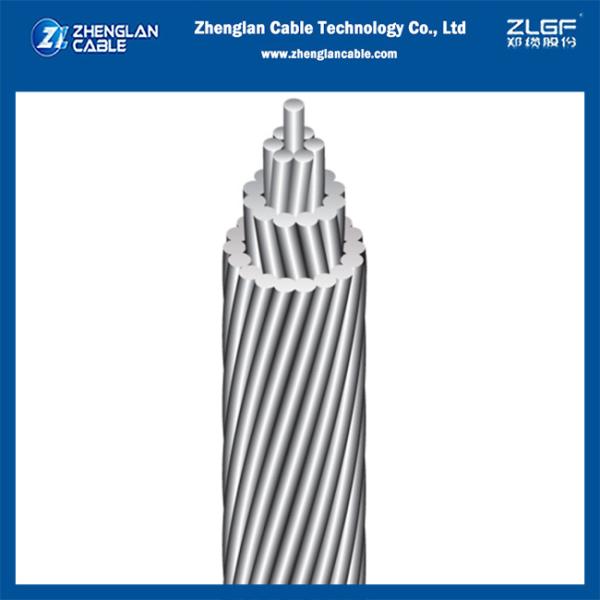

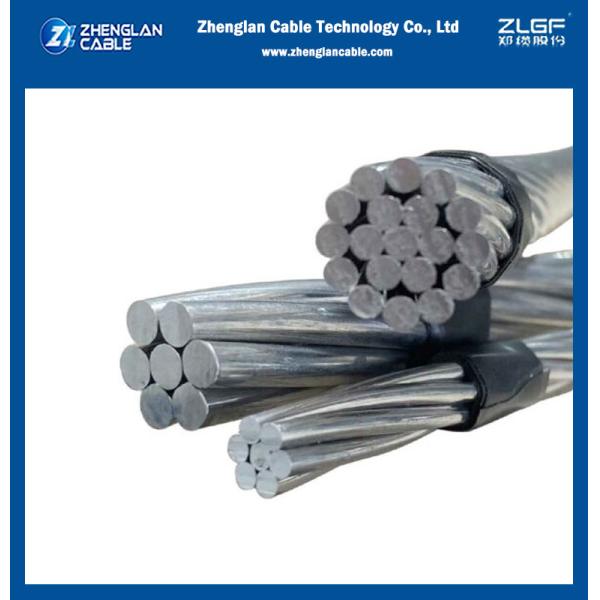

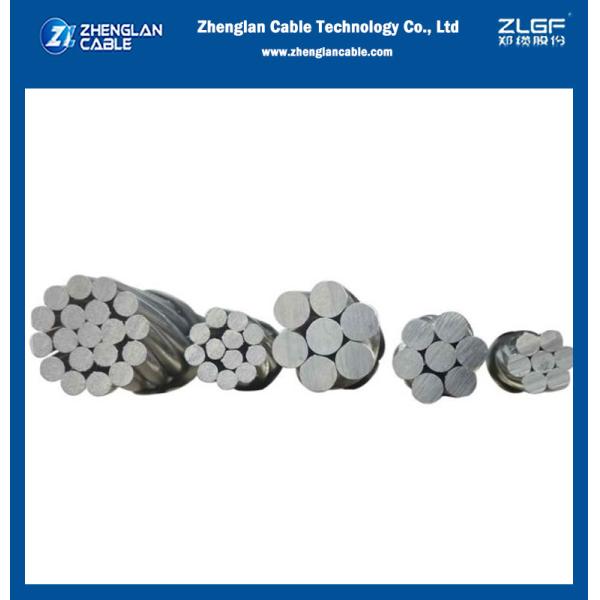

Aluminum conductor AAC Conductor images

Aluminum Conductor AAC 705MCM Arbutus 402.8MCM 37/3.72mm ASTMB231/231M

Aluminum Conductor AAC 705MCM Arbutus 402.8MCM 37/3.72mm ASTMB231/231M

Aluminum Conductor AAC 705MCM Arbutus 402.8MCM 37/3.72mm ASTMB231/231M
