0.6/1KV Low Voltage Copper PVC Insulated Power Cables 1Core for IEC 60502, IEC 60228（ CU/PVC）
0.6/1KV Low Voltage Copper PVC Insulated Power Cables 1Core for IEC 60502, IEC 60228（ CU/PVC）
Specifications
Brand Name :
ZhengLan
Model Number :
0.6/1KV Low Voltage Copper PVC Insulated Power Cables 1Core for IEC 60502, IEC 60228（ CU/PVC）
Certification :
ISO9001,CCC, CE, Etc
Place of Origin :
Henan, China
MOQ :
500 meters
Price :
0.5-100USD/m
Payment Terms :
L/C, T/T, , Western Union
Supply Ability :
80000m/day
Delivery Time :
7-10 Working Days
Packaging Details :
Fully wooden drum, steel wooden drum, fully steel drum or customized
Insulation Material :
PVC
Size :
4~500mm2
Type :
Low Voltage
Number of cores :
1core
Rated voltage :
0.6/1KV
Conductor Material :
Cu
Description

0.6/1KV Low Voltage Copper PVC Insulated Power Cables 1Core for IEC 60502, IEC 60228( CU/PVC)

0.6/1KV Low Voltage Copper PVC Insulated Power Cables 1Core for IEC 60502, IEC 60228（ CU/PVC）

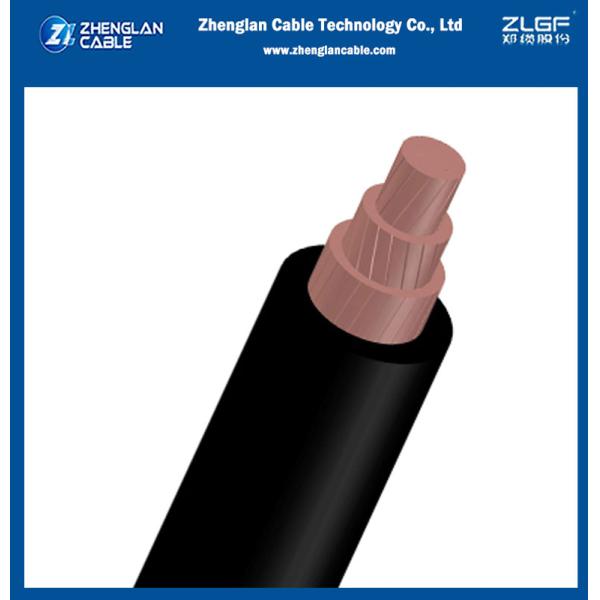

Power cable, single-core, copper conductor, PVC insulated

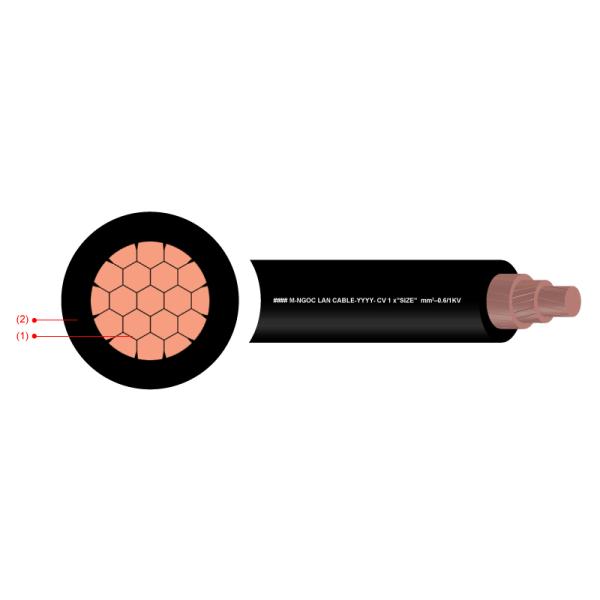

Structure
(1). Conductor: Annealed plain copper (class 2, circular compacted
(2). Insulation: Polyvinyl chloride (PVC)
Color: Black or other colours
Standards
IEC 60502, IEC 60228
Application
Laid on cable ladder, tray, in duct in a thermal insulated wall, on a wall or spaced from wall, on the dry and closed cable trench in workshops, building, from source to machine or device, in duct in the ground.
Classification
• Rated voltage (Uo/U): 0.6/1kV
• Max. conductor temperature in normal operation: 70ºC
• Max. conductor temperature in short-circuit for 5s max duration: 160ºC
Characteristics

Nominal area Structure Diameter Thickness
of insulation		 Overall
diameter		 DC resistance
at 20 0C		 Current rating Approx. weight Test voltage
50Hz-5min
(mm2) (N0 x mm) (mm) (mm) (mm) (Ω/km) (A) (kg/km) (kVr.m.s)
4 7 x 0.85 2.55 1.0 4.55 4.610 47 51 3.5
6 7 x 1.04 3.12 1.0 5.12 3.080 59 72 3.5
10 CC 3.80 1.0 5.80 1.830 73 119 3.5
16 CC 4.90 1.0 6.90 1.150 108 178 3.5
25 CC 6.10 1.2 8.50 0.727 130 275 3.5
35 CC 7.10 1.2 9.50 0.524 165 366 3.5
50 CC 8.15 1.4 10.95 0.387 204 495 3.5
70 CC 9.75 1.4 12.55 0.268 242 698 3.5
95 CC 11.50 1.6 14.70 0.193 283 957 3.5
120 CC 12.90 1.6 16.10 0.153 355 1,200 3.5
150 CC 14.35 1.8 17.95 0.124 420 1,470 3.5
185 CC 16.05 2.0 20.05 0.0991 450 1,830 3.5
240 CC 18.40 2.2 22.80 0.0754 550 2,309 3.5
300 CC 20.65 2.4 25.45 0.0601 607 2,991 3.5
400 CC 23.45 2.6 28.65 0.0470 742 3,987 3.5
500 CC 26.45 2.8 32.05 0.0366 864 4,855 3.5


0.6/1KV Low Voltage Copper PVC Insulated Power Cables 1Core for IEC 60502, IEC 60228（ CU/PVC）


0.6/1KV Low Voltage Copper PVC Insulated Power Cables 1Core for IEC 60502, IEC 60228（ CU/PVC）
0.6/1KV Low Voltage Copper PVC Insulated Power Cables 1Core for IEC 60502, IEC 60228（ CU/PVC）

Why Choose Zhenglan Cable:

  • OEM/ODM services provided
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
  • Registered capital of $30 million and factory covers an area of 60,000㎡
  • Advanced test equipment and procedures, 100% inspection before factory
  • Enough stocks and the higest efficient shipping time guarranteed
  • Professional pre-sales and after-sales services provided
