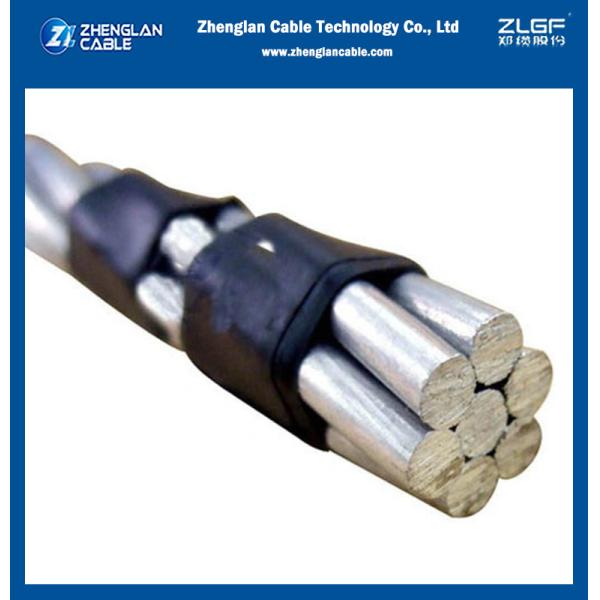

All Aluminum Conductor Bare Conductor Wire 9.3mm Overall Diameter AAC Cables
All Aluminum Conductor Bare Conductor Wire 9.3mm Overall Diameter AAC Cables
All Aluminum Conductor Bare Conductor Wire 9.3mm Overall Diameter AAC Cables
All Aluminum Conductor Bare Conductor Wire 9.3mm Overall Diameter AAC Cables
All Aluminum Conductor Bare Conductor Wire 9.3mm Overall Diameter AAC Cables
All Aluminum Conductor Bare Conductor Wire 9.3mm Overall Diameter AAC Cables
Specifications
Brand Name :
Zhenglan Cable
Model Number :
Aluminum Stranded Conductor
Certification :
3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Place of Origin :
Henan, China
MOQ :
1000m
Price :
According to the specifications
Payment Terms :
T/T, L/C,
Supply Ability :
20km per day
Delivery Time :
15 days
Packaging Details :
Wooden drum, wood and steel drum, as customer's request
Core :
Normal or Customized
Cable Mark :
Ink printing or Embossing Content Customized
Cable Drum Length :
as per requirement
characted :
Bare Conductor
structure :
7/3.10mm
Total Area :
50mm²
Overall diameter :
9.3mm
Weight :
145kg/km
Rated strength :
8.28kn
Description

All Aluminum Conductor AAC Cables Aluminum Stranded Conductor China Factory

AAC-DIN 48201-5 Parameter

Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
Nominal Teorical
mm^2 mm^2 No.×mm mm kg/km KN Ω/Km A
16 15.89 7/1.70 5.1 43 2.84 1.8022 83
25 24.25 7/2.10 6.3 66 4.17 1.181 108
35 34.36 7/2.50 7.5 94 5.78 0.8333 134
50 49.48 7/3.00 9 135 7.94 0.5787 168
50 48.35 19/1.80 9 133 8.45 0.5951 166
70 65.81 19/2.10 10.5 181 11.32 0.4372 200
95 93.27 19/2.50 12.5 256 15.68 0.3085 248
120 116.99 19/2.80 14 322 18.78 0.2459 285
150 147.11 37/2.25 15.8 406 25.3 0.196 328
185 181.62 37/2.50 17.5 500 30.54 0.1588 373
240 242.54 61/2.25 20.3 670 39.51 0.1191 445
300 299.43 61/2.50 22.5 827 47.7 0.0965 506

All Aluminum Conductor Bare Conductor Wire 9.3mm Overall Diameter AAC Cables

APPLICATION

All Aluminum Conductor is also known as aluminium stranded conductor. It is manufactured from electrolytically refined aluminium, with a minimum purity of 99.7%.

STANDARD

Aluminum stranded conductor are basic design to BS 215-1 / BS EN 50182 / IEC 61089 / ASTM B 231/B 231M / DIN 48201-5 standards

Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.

CONSTRUCTION

A concentric lay stranded conductor consisting of Aluminum Alloy 1350-H19 wires. AAC is available in both single layer and multi-layer constructions

Notes:

AAC ampacity based on 75 ºC conductor temp, 25 ºC ambient, 2ft1s wind, 961 watts/sq. foot sun, 0.5 coefficients of emissivity and absorption

All aluminum conductor TECHNICAL DATA

All Aluminum Conductor Bare Conductor Wire 9.3mm Overall Diameter AAC Cables

All Aluminum Conductor Bare Conductor Wire 9.3mm Overall Diameter AAC Cables

All Aluminum Conductor Bare Conductor Wire 9.3mm Overall Diameter AAC Cables

All Aluminum Conductor Bare Conductor Wire 9.3mm Overall Diameter AAC Cables

Factory show

All Aluminum Conductor Bare Conductor Wire 9.3mm Overall Diameter AAC Cables

All Aluminum Conductor Bare Conductor Wire 9.3mm Overall Diameter AAC Cables

Why you choose us?

OEM/ODM services provided;

Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;

Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;

Registered capital of $30 million and factory covers an area of 60,000㎡;

Advanced test equipment and procedures, 100% inspection before factory;

Enough stocks and the higest efficient shipping time guarranteed;

Professional pre-sales and after-sales services provided
