19 Cores Unarmoured Electrical Control Cable For Supervisory Electrical Equipment
19 Cores Unarmoured Electrical Control Cable For Supervisory Electrical Equipment
Specifications
Brand Name :
Zhenglan cable
Model Number :
300V CVV 19C Electrical Control Cable
Certification :
3C，ISO 9001:2015，ISO 14001:2005
Place of Origin :
Henan, China
MOQ :
Negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
5 million one year
Delivery Time :
5~10 days
Packaging Details :
Rolls or Customerised
Price :
Negotiable
Material :
Copper
Sheath :
PVC / XLPE insulated
Application :
Supervisory Electrical Equipment
Colour :
Standard or Customerised
Core :
19
character :
Unarmoured
Description

19 Cores Unarmoured Electrical Control Cable For Supervisory Electrical Equipment

IEC 60502 Type Cable

0.6/1 kV CVV
IEC 60502 (2-37 core)

Conductor: Concentric Stranded copper wire
Insulation: PVC Black color
Identification : Printed White number on the surface of Black insulation
Filler: Suitable filler
Binding tape: Suitable tape
Sheath : PVC Black color
Application: For supervisory electrical equipment, station control circuits, outdoor, suitable installation in dry or wet cable trenches.

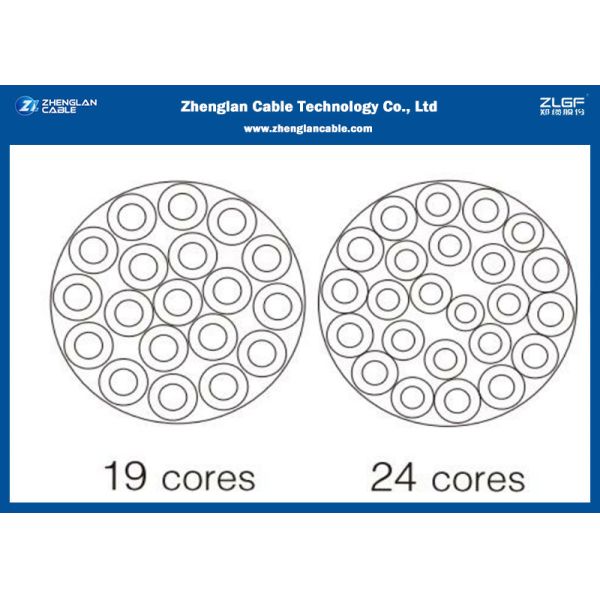

19 Cores Unarmoured Electrical Control Cable For Supervisory Electrical Equipment

19 Core CVV Control Cable

No. of core Nominal
cross-
sectional area
sq.mm		 No.& dia.
of wires No./mm		 Thickness
of insulation mm		 Thickness
of sheath
mm		 Overall diameter (Approx.)
mm		 Maximum conductor resistance
(at20C)
Ohm/km		 Minimum insulation resistance
(at70C)
Ohm/km		 Cable
weight (Approx.) kg/km		 Standard Length
m
19 0.5 7/0.30 0.8 1.8 18.0 36.0 0.0162 365 500/D
0.75 7/0.37 0.8 1.8 19.0 24.5 0.0142 445 500/D
1 7/0.40 0.8 1.8 19.5 18.1 0.0135 480 500/D
1.5 7/0.50 0.8 1.8 21.5 12.1 0.0115 620 500/D
2.5 7/0.67 0.8 1.8 24.0 7.41 0.0093 905 500/D
4 7/0.85 1.0 1.8 29.5 4.61 0.0092 1385 500/D
6 7/1.04 1.0 1.9 32.5 3.08 0.0078 1885 500/D

Why Choose Zhenglan Cable:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.
