1KV ABC Cable 3x50+1x35mm2 Aluminum Core XLPE Insulated Aluminum Alloy XLPE Insulated NTP 370.254
1KV ABC Cable 3x50+1x35mm2 Aluminum Core XLPE Insulated Aluminum Alloy XLPE Insulated NTP 370.254
Specifications
Brand Name :
Zhenglan Cable
Model Number :
1KV ABC Cable 3x50+1x35mm2 Aluminum core XLPE insulated Aluminum alloy XLPE insulated NFC-33-209
Certification :
ISO 9001:2015，ISO 14001:2005; CCC
Place of Origin :
Wuzhi, Henan, CN
MOQ :
1000-5000m depends on the specificaion
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
40000 M/day
Delivery Time :
10 days
Packaging Details :
Wooden drum, iron wooden drum or as required
Phase cable Material :
AAC/XLPE
Neutral cable :
with neutral AAAC/XLPE
Standard :
NTP 370.254
structure :
AAC/XLPE
Voltage :
0.6/1KV
Port :
Qingdao
Description

1KV ABC Cable 3x50+1x35mm2 Aluminum core XLPE insulated Aluminum alloy XLPE insulated NTP 370.254

1KV ABC Cable 3x50+1x35mm2 Aluminum core XLPE insulated Aluminum alloy XLPE insulated NTP 370.254 are designed for overhead secundary distribution networks. The use of these cable decrease energy theft. Cross-linked polyethylene allows more current capacity and high insulation resistance, lower inductive reactance than with bare conductors, used in overhead distribution lines. Insulators are not necessary for installation. Resistance to abrasion, weather and sunlight.

1KV aerial bundled cable xlpe insulated 2x16mm2 NFC-33-209 ​ structure

Construction:
1. Conductor: Aluminium 1350, class 2.
2. Insulation: Cross linked polyethylene XLPE.
3. Insulated neutral messenger: AAAC - All Alloy Aluminium 6201 - XLPE.
Core Identification: 1, 2, 3.........
Electrical Properties
Rated Voltage 0.6/1kV
Test Voltage 3.5 kV
Minimum Laying Temperature -20°C
Operating Temperature -40°C~ +90°C
Maximum Short-circuit Temperature 250°C
Maximum Conductor Temperature 80°C

Other related standards: IEC60502, NFC33-209, BS7870, AS/NZS 3560, ANSI/ICEA S-76-474, etc.
1KV ABC Cable 3x50+1x35mm2 Aluminum core XLPE insulated Aluminum alloy XLPE insulated NTP 370.254 ​ technical data
No. of cores and cross sectional area(mm2) Nominal insulation thickness(mm) Approximate diameter of cable(mm)

Max DC resistance

at 20℃(Ω/km)

 Approx. weight(kg/km)
3x50+1x35 1.52(phase); 1.14(neutral) 26.7 0.641 666

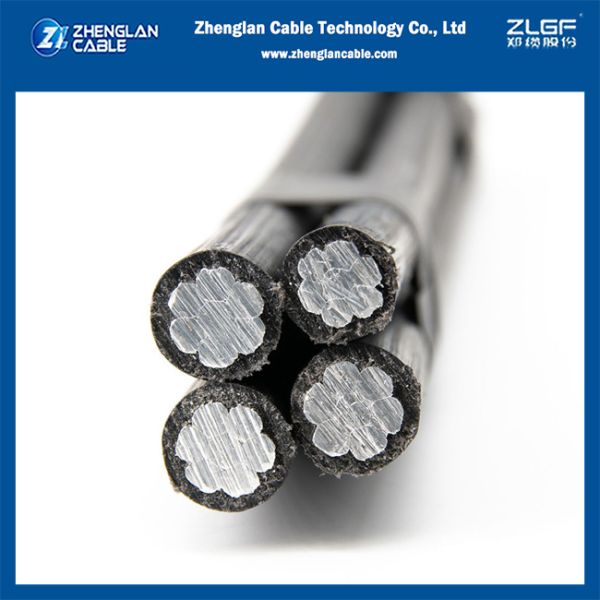

1KV ABC Cable 3x50+1x35mm2 Aluminum core XLPE insulated Aluminum alloy XLPE insulated NTP 370.254 ​ images
1KV ABC Cable 3x50+1x35mm2 Aluminum Core XLPE Insulated Aluminum Alloy XLPE Insulated NTP 370.254
1KV ABC Cable 3x50+1x35mm2 Aluminum Core XLPE Insulated Aluminum Alloy XLPE Insulated NTP 370.254
