12/20KV Copper Core Medium Voltage Power Cable Unarmored XLPE Insulated(XHIV) for Utility and Industrial Applications
12/20KV Copper Core Medium Voltage Power Cable Unarmored XLPE Insulated(XHIV) for Utility and Industrial Applications
Specifications
Brand Name :
Zhenglan cable
Model Number :
12/20KV Copper Core Medium Voltage Power Cable Unarmored XLPE Insulated(XHIV) for Utility and Industrial Applications
Certification :
3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Place of Origin :
Henan, China
MOQ :
3000 meters
Price :
USD 1- USD 200
Payment Terms :
L/C,T/T,,Western Union
Supply Ability :
100000 meter per month
Delivery Time :
7-10 Working Days
Packaging Details :
Wooden drum, wood and steel drum,as customer's request
Material :
Copper
Out Sheath Color :
Black or Customized
Core :
single core
Cable Mark :
Ink printing or Embossing Content Customized
Metallic screen :
copper tape screen
Characted :
XLPE insulated, PVC sheathed, Unarmored
Description
12/20KV XHIV Cable - Copper Core Medium Voltage Power Cable
12/20KV XHIV copper core medium voltage power cable, unarmored 1x120mm², designed for reliable power distribution in utility and industrial applications.
Application
Portuguese model medium voltage cables for power distribution and power supply stations. Suitable for fixed installations in indoor or outdoor environments, including open air cable trays, underground ducts, or direct burial applications.

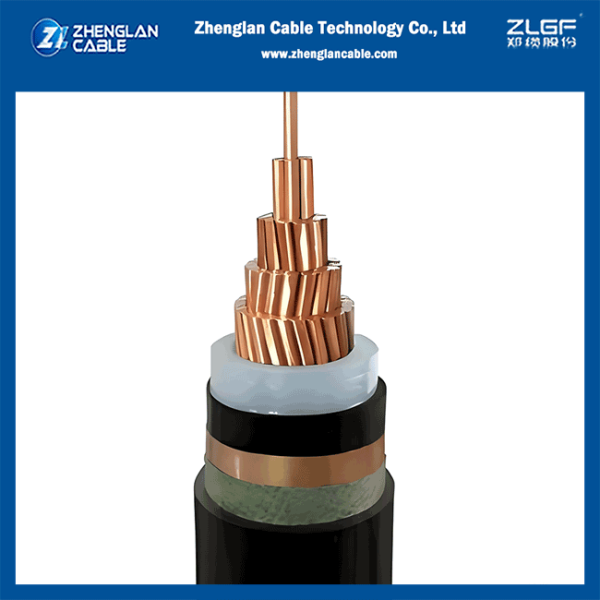

Cable Construction
Conductor: Plain annealed stranded circular compacted copper conductor (Class 2)
Conductor Screen: Extruded layer of cross-linkable semi-conducting compound
Insulation: Extruded layer of cross-linked polyethylene (XLPE)
Insulation Screen: Extruded layer of cross-linkable semi-conducting compound
Metallic Screen: Flat plain copper tape helically applied over insulation screen with suitable overlap
Outer Sheath: Extruded layer of Polyvinyl chloride (PVC)
Technical Specifications
Cable Size Conductor Type Conductor Screen Thickness (mm) Insulation Thickness (mm) Outer Sheath Thickness (mm) Overall Diameter (mm) Max DC Resistance @ 20°C (Ω/km)
1x120mm² Circular 0.6 5.5 2.0 32 0.153
Product Reference
12/20KV Copper Core Medium Voltage Power Cable Unarmored XLPE Insulated(XHIV) for Utility and Industrial Applications
Why Choose Zhenglan Cable
Our medium voltage cables are manufactured using the monosil process with state-of-the-art facilities and rigorous quality control procedures. We maintain cleanliness-controlled conditions throughout production to ensure absolute homogeneity of finished insulation materials.
  • OEM/ODM services available
  • Compliance with GB, IEC, BS, ASTM, DIN, VDE, and JIS standards; custom requirements accepted
  • Certified to ISO 9001:2015, ISO 14001:2015, and OHSAS 18001:2007
  • $30 million registered capital with 60,000㎡ factory area
  • Advanced testing equipment with 100% pre-shipment inspection
  • Ample stock inventory with guaranteed efficient shipping
  • Professional pre-sales and after-sales support
