3.6 KV Power Cables RV-K Flexible Copper Conductor PVC Jacket
3.6 KV Power Cables RV-K Flexible Copper Conductor PVC Jacket
3.6 KV Power Cables RV-K Flexible Copper Conductor PVC Jacket
3.6 KV Power Cables RV-K Flexible Copper Conductor PVC Jacket
Specifications
Brand Name :
Zhenglan Cable
Model Number :
RV-K Cable
Place of Origin :
China
Certification :
ISO9001/CCC/CE/TUV
Packaging Details :
Fully wooden drum, steel wooden drum, fully steel drum or customized
Temperature Rating :
-40°C To 90°C
Jacket :
PVC
Conductor Material :
Class 5 Flexible Copper Conductor
Insulation :
XLPE
Voltage Rating :
0.6/1(1.2) KV; 1.8/3 (3.6) KV
Conductor Shape :
Circular
Port :
Shanghai Or Qingdao...
Out Sheath Color :
Black Or Customized
Description

Product Description:

RV-K cable, widely utilized in industrial and commercial electrical installations, is a low-voltage power cable renowned for its robust insulation and flexibility. This cable type is well-suited for fixed installations, whether underground, outdoor, or in damp environments.High flexibility, which simplifies installation.

Standards:

IEC 60502-1; UNE 21123-2

Structure:

Conductors: Flexible copper, class 5

Insulation: XLPE (Cross-linked Polyethylene)

Sheath: PVC (Polyvinyl Chloride) or similar material, typically black

Features:

Voltage Rating Uo/U (Um): 0.6/1 kV; 1.8/3kV

Test voltage: 3500V

Permissible operating temperature of the conductor: 90°C

Short circuit temperature at the conductor: +250°C (Short circuit duration max. 5 s)

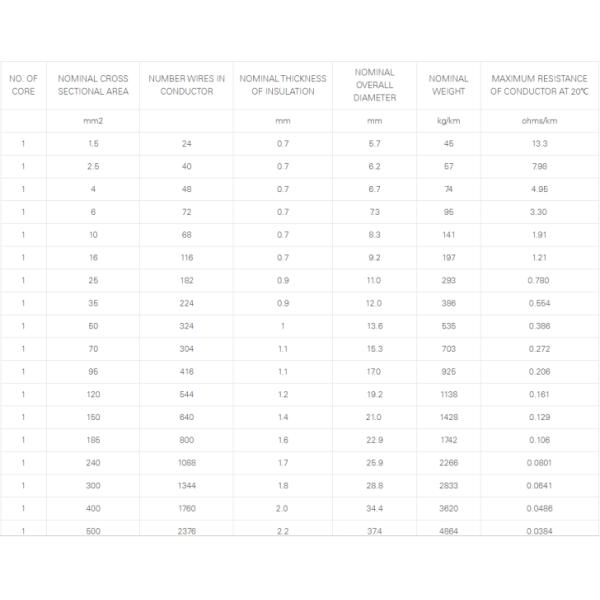

Technical parameter table:

3.6 KV Power Cables RV-K Flexible Copper Conductor PVC Jacket

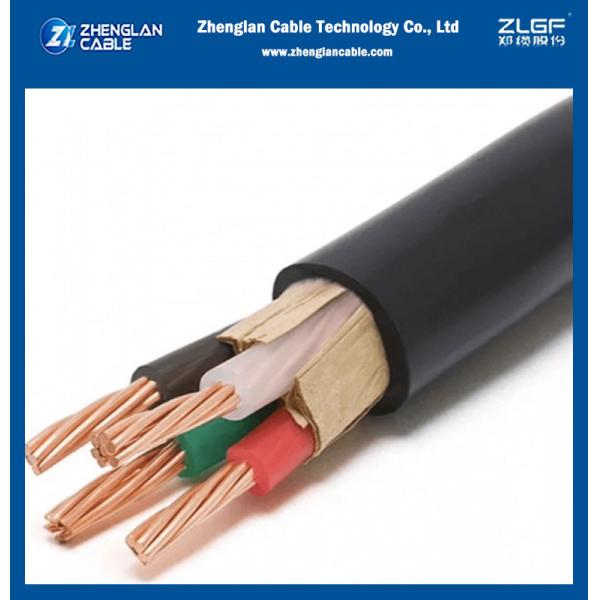

Image:

3.6 KV Power Cables RV-K Flexible Copper Conductor PVC Jacket3.6 KV Power Cables RV-K Flexible Copper Conductor PVC Jacket

Why Choose Us:

OEM/ODM services provided.
Products comply with GB, IEC, BS, ASTM, DIN, VDE, and JIS standards; Customer standard requirements accepted.
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
Registered capital of $30 million and factory covers an area of 60,000㎡.
Advanced test equipment and procedures, 100% inspection before factory;
Enough stocks and the highest efficient shipping time guaranteed.
Professional pre-sales and after-sales services are provided
