MV Power Cable AWA Armored with Aluminum/Copper Conductor Single Core XLPE Insulation for Industrial Use
MV Power Cable AWA Armored with Aluminum/Copper Conductor Single Core XLPE Insulation for Industrial Use
Specifications
Brand Name :
Zhenglan cable
Model Number :
MV power cable AWA armored type 1x70mm2 12/20KV
Certification :
3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Place of Origin :
Henan, China
MOQ :
3000 meters
Price :
USD 1- USD 200
Payment Terms :
L/C,T/T,,Western Union
Supply Ability :
100000 meter per month
Delivery Time :
7-10 Working Days
Packaging Details :
Wooden drum, wood and steel drum,as customer's request
Material :
Aluminum/Copper
Out Sheath Color :
Black or Customized
Core :
single core
Cable Mark :
Ink printing or Embossing Content Customized
Metallic screen :
copper wire+copper tape screen or copper tape
Armor :
Aluminum wire armor
Description
MV Power Cable AWA Armored Type 1x70mm² 12/20KV
Product Description
MV power cable AWA armored type 1x70mm² 12/20KV is designed for power supply stations, indoor installations, cable ducts, protected outdoor laying, underground applications, and installation on cable trays for industrial facilities, switchboards, and power stations. Its excellent laying characteristics allow for easy installation even in challenging line pathways. The cable features an inner conducting layer between the conductor and XLPE insulation, along with a firmly bonded outer conducting layer on the XLPE insulation, ensuring a partial discharge-free construction with high operational reliability.

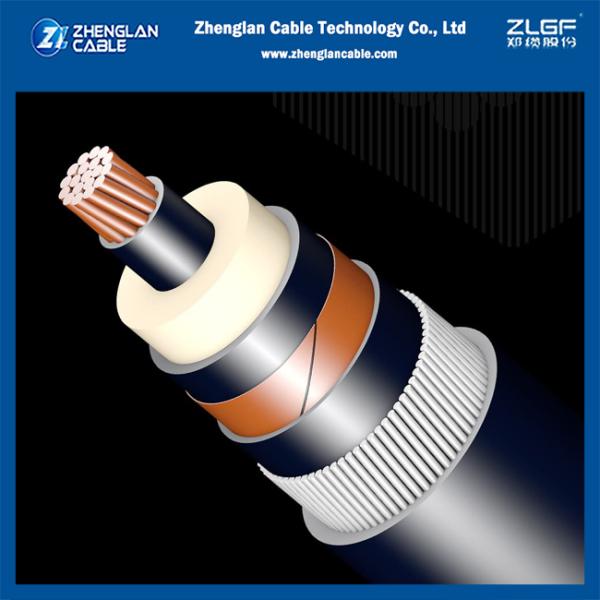

Construction
  • Conductor: Copper or aluminum, Class 2: stranded conductor; Minimum size: 25mm²
  • Conductor screen: Non-metallic, semi-conducting compound
  • Insulation: Cross-linked polyethylene (XLPE)
  • Insulation screen: Non-metallic, semi-conducting compound
  • Metallic screen: Copper wire and copper tape or copper tape only
  • Outer sheath: Polyvinyl chloride (PVC), PE, LSZH/LSOH available
Technical Data Sheet
Nom. Cross-Section Area Nom. Insulation Thickness Copper Tape Thickness Copper Wire Screen Area* Nom. Bedding Thickness Armour Wire Size Nom. Sheath Thickness Approx. Overall Diameter Approximate Weight (kg/km)
70 mm² 5.5 mm 0.1 mm 16 mm² 1.2 mm 2 mm 2.1 mm 35 mm 1840 (Cu)
1420 (AL)
Product Reference
MV Power Cable AWA Armored with Aluminum/Copper Conductor Single Core XLPE Insulation for Industrial Use
Why Choose Zhenglan Cable
Our medium voltage cables are manufactured using the monosil process with specialized equipment, state-of-the-art research facilities, and rigorous quality control. We maintain cleanliness-controlled conditions throughout production to ensure absolute homogeneity of insulation materials.
  • OEM/ODM services available
  • Compliance with GB, IEC, BS, ASTM, DIN, VDE, JIS standards; custom standards accepted
  • Certified to ISO 9001:2015, ISO 14001:2015, and OHSAS 18001:2007
  • $30 million registered capital with 60,000㎡ factory area
  • Advanced test equipment with 100% inspection before shipment
  • Ample stock inventory with guaranteed efficient shipping
  • Professional pre-sales and after-sales services
