20.8/36kV Single Core XLPE Insulated Aluminum cable for underground use 1x95/16mm2 NA2X(F)2Y
20.8/36kV Single Core XLPE Insulated Aluminum cable for underground use 1x95/16mm2 NA2X(F)2Y
Specifications
Brand Name :
Zhenglan cable
Model Number :
18/30KV Single Core XLPE Insulated MV Power Cable with Water Blocking and Copper Wire Screen for Reliable Power Distribution
Certification :
3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007
Place of Origin :
Henan, China
MOQ :
3000 meters
Price :
USD 1- USD 200
Payment Terms :
L/C,T/T,,Western Union
Supply Ability :
100000 meter per month
Delivery Time :
7-10 Working Days
Packaging Details :
Wooden drum, wood and steel drum,as customer's request
Material :
Aluminum
Out Sheath Color :
Black or Customized
Core :
single core
Cable Mark :
Ink printing or Embossing Content Customized
Metallic screen :
copper wire+copper tape screen or copper tape
Armor :
No armor
Description
20.8/36kV Single Core XLPE Insulated Aluminum cable for underground use 1x95/16mm2

The cables are suitable for permanent installation indoors, outdoors, in the ground, and in cable ducts.
This product may only be installed by a qualified electrician. The product was developed in accordance with recognized standards. The applicable installation regulations must be applied.

Construction
  • Conductor: Copper or aluminum, Class 2: stranded conductor
  • Conductor screen: Non-metallic, semi-conducting compound
  • Insulation: Cross-linked polyethylene (XLPE)
  • Insulation screen: Non-metallic, semi-conducting compound
  • Water prevention layer: swellable water prevention tape
  • Metallic screen: Copper wire and copper tape or copper tape only
  • Water prevention layer: swellable water prevention tape
  • Outer sheath: Polyvinyl chloride PE
Technical Specifications
Nom. Cross-Section Area Nom. Insulation Thickness Copper Tape Thickness Copper Wire Screen Area* Conductor material
95mm² 9.3mm 0.1 mm 16 mm² aluminum
Nom. Sheath Thickness Approx. Overall Diameter Approximate Weight
2.1 mm 40.5 mm 1535 kg/km

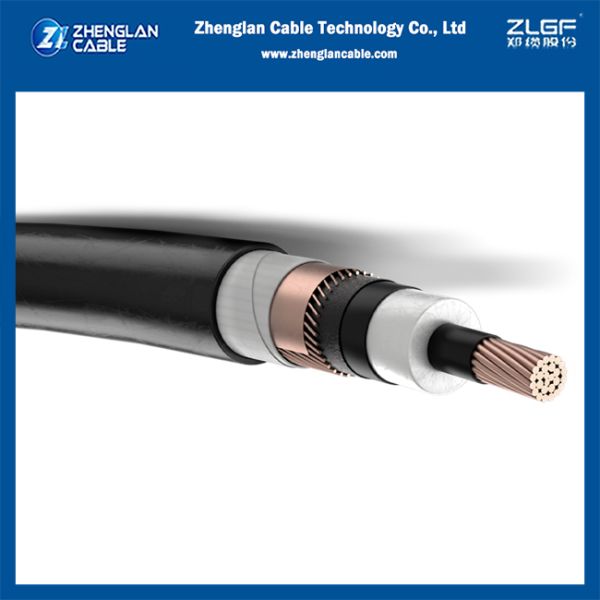

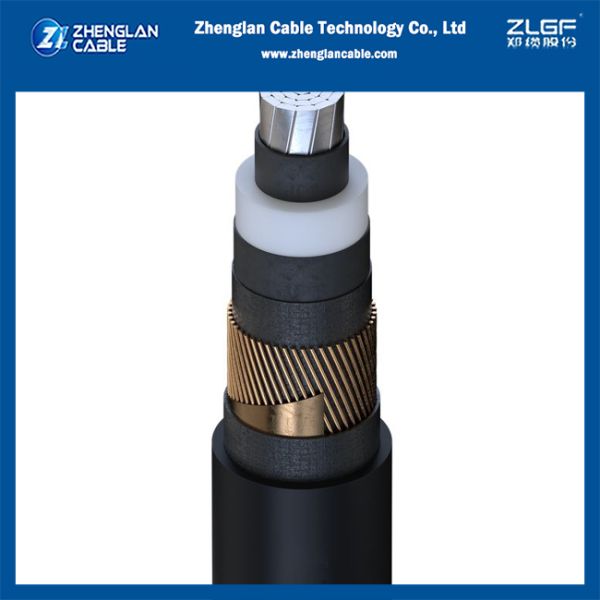

Product Image
20.8/36kV Single Core XLPE Insulated Aluminum cable for underground use 1x95/16mm2 NA2X(F)2Y
Why Choose Zhenglan Cable

Our medium voltage cables are manufactured using the monosil process with specialized equipment, state-of-the-art research facilities, and rigorous quality control. We maintain cleanliness-controlled conditions throughout production to ensure absolute homogeneity of insulation materials.

  • OEM/ODM services available
  • Compliance with GB, IEC, BS, ASTM, DIN, VDE, JIS standards; custom standards accepted
  • Certified to ISO 9001:2015, ISO 14001:2015, and OHSAS 18001:2007
  • $30 million registered capital with 60,000㎡ factory area
  • Advanced test equipment with 100% inspection before shipment
  • Ample stock inventory with guaranteed efficient shipping
  • Professional pre-sales and after-sales services
