5 Cores XLPE Insulated PVC Sheathed Unarmoured Copper Cable 0.6/1kV IEC 60228 IEC 60502-1
5 Cores XLPE Insulated PVC Sheathed Unarmoured Copper Cable 0.6/1kV IEC 60228 IEC 60502-1
5 Cores XLPE Insulated PVC Sheathed Unarmoured Copper Cable 0.6/1kV IEC 60228 IEC 60502-1
5 Cores XLPE Insulated PVC Sheathed Unarmoured Copper Cable 0.6/1kV IEC 60228 IEC 60502-1
Specifications
Brand Name :
Zhenglan Cable
Model Number :
5 Cores XLPE Insulated, PVC Sheathed Unarmoured Copper Cable, 0.6/1kV
Certification :
ISO
Place of Origin :
Henan China
MOQ :
1000meters
Price :
1-100USD/meter
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000m/day
Delivery Time :
7working days
Packaging Details :
Drum
Conductor :
bare copper
Insulation :
XLPE
Armor :
no
Outer sheath :
XLPE X-90
Core number :
5core
Voltage :
0.6/1kv
Description

5 Cores XLPE Insulated PVC Sheathed Unarmoured Copper Cable 0.6/1kV IEC 60228 IEC 60502-1

XLPE 5 Cores Copper Cable Application

These cables are used for outdoor and indoor installations in damp and wet applications. They are normally used for power distribution in urban networks, industrial plants and energy distribution. For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable where space is at a premium.

XLPE 5 Cores Copper Cable Standards

IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)

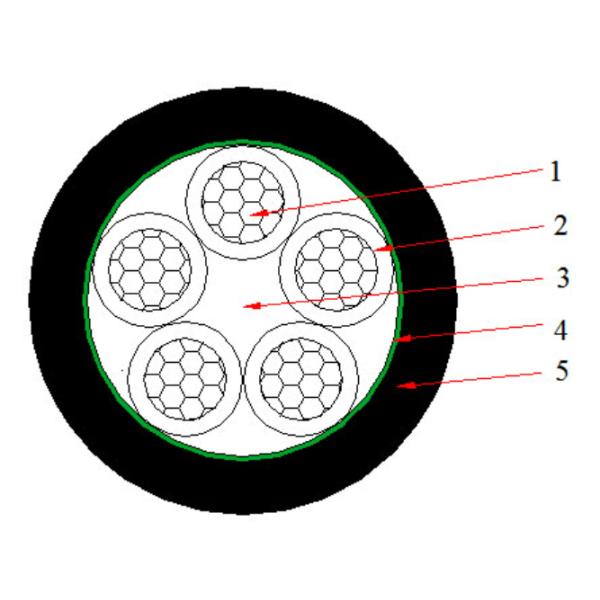

XLPE 5 Cores Copper Cable Construction

1. Conductor: Copper , Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Outer sheath: Polyvinyl chloride PVC

5 Cores XLPE Insulated PVC Sheathed Unarmoured Copper Cable 0.6/1kV IEC 60228 IEC 60502-1

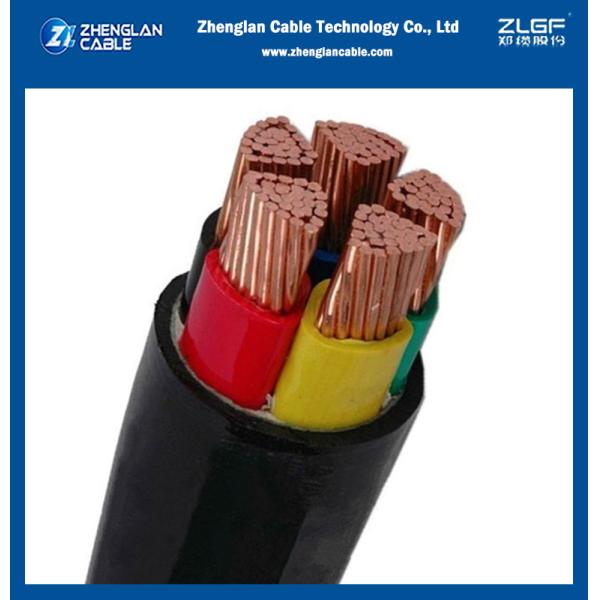

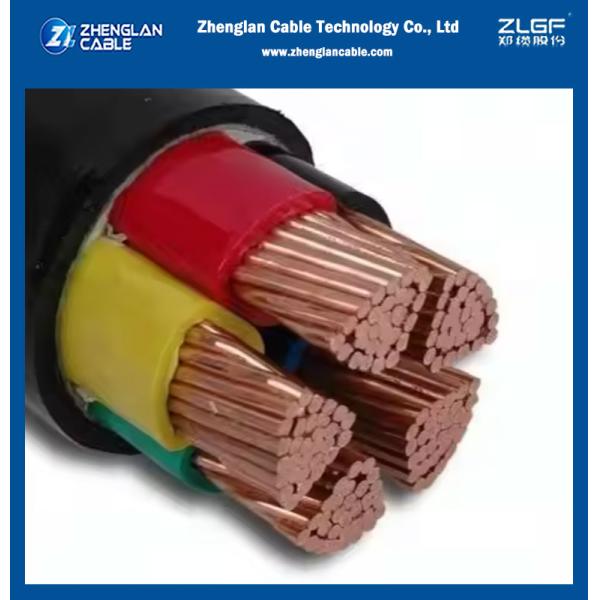

Product picture

5 Cores XLPE Insulated PVC Sheathed Unarmoured Copper Cable 0.6/1kV IEC 60228 IEC 60502-1

5 Cores XLPE Insulated PVC Sheathed Unarmoured Copper Cable 0.6/1kV IEC 60228 IEC 60502-1

PARAMETER :

XLPE 5 Core Copper Cable Parameter

0.6/1kV-5 core copper conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section Thickness of Insulation Thickness of Sheath Approx. overall Diameter Approx. weight Max. DC resistance of conductor(20℃) Current carrying capacity
(mm2) (mm) (mm) (mm) (kg/km) (Ω/km) In Air(A) In Ground(A)
5X1.5 0.7 1.8 11.7 170 12.1 21 30
5X2.5 0.7 1.8 12.8 250 7.41 28 39
5X4 0.7 1.8 14 330 4.61 37 51
5X6 0.7 1.8 15.4 460 3.08 47 64
5X10 0.7 1.8 18.8 700 1.83 65 86
5X16 0.7 1.8 21.8 1000 1.15 84 110
5X25 0.9 1.8 26.2 1540 0.727 110 140
5X35 0.9 1.8 28 2080 0.524 135 170
5X50 1 1.9 32.4 2760 0.387 170 205
5X70 1.1 2.1 37.4 3890 0.268 215 250
5X95 1.1 2.2 41.7 5120 0.193 265 300
5X120 1.2 2.4 46.2 6530 0.153 310 345
5X150 1.4 2.6 53.1 8000 0.124 350 385
5X185 1.6 2.8 58.9 9800 0.0991 405 435
5X240 1.7 3 65.6 12400 0.0754 480 500
5X300 1.8 3.2 72 15450 0.0601 555 565
