XLPE Insulated 1.5mm2 5 Cores Copper Cable 5x1.5mm2 IEC 60228 IEC 60502-1
XLPE Insulated 1.5mm2 5 Cores Copper Cable 5x1.5mm2 IEC 60228 IEC 60502-1
XLPE Insulated 1.5mm2 5 Cores Copper Cable 5x1.5mm2 IEC 60228 IEC 60502-1
XLPE Insulated 1.5mm2 5 Cores Copper Cable 5x1.5mm2 IEC 60228 IEC 60502-1
Specifications
Brand Name :
Zhenglan Cable
Model Number :
XLPE Insulated 1.5mm2 5 Cores Copper Cable 5x1.5mm2 IEC 60228 IEC 60502-1
Certification :
ISO
Place of Origin :
Henan China
MOQ :
1000meters
Price :
1-100USD/meter
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000m/day
Delivery Time :
7working days
Packaging Details :
Drum
Conductor :
bare copper
Insulation :
XLPE
Armor :
no
Outer sheath :
XLPE X-90
Core number :
5core
Voltage :
0.6/1kv
Cross section area :
1.5mm2
Description

XLPE Insulated 1.5mm2 5 Cores Copper Cable 5x1.5mm2 IEC 60228 IEC 60502-1

XLPE 1.5mm2 5 Cores Copper Cable Application

These cables are used for outdoor and indoor installations in damp and wet applications. They are normally used for power distribution in urban networks, industrial plants and energy distribution. For mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage. Suitable where space is at a premium.

XLPE 1.5mm2 5 Cores Copper Cable Standards

IEC 60228 Conductors
IEC 60502-1 Power cables with extruded insulation and their accessories for rated voltages from 1kV(Um=1.2kV) up to 30kV(Um=36kV) - Part 1: Cables for rated voltages of 1 kV(Um=1.2kV) and 3 kV(Um=3.6kV)

XLPE 1.5mm2 5 Cores Copper Cable Construction

1. Conductor: Copper , Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Outer sheath: Polyvinyl chloride PVC

XLPE Insulated 1.5mm2 5 Cores Copper Cable 5x1.5mm2 IEC 60228 IEC 60502-1

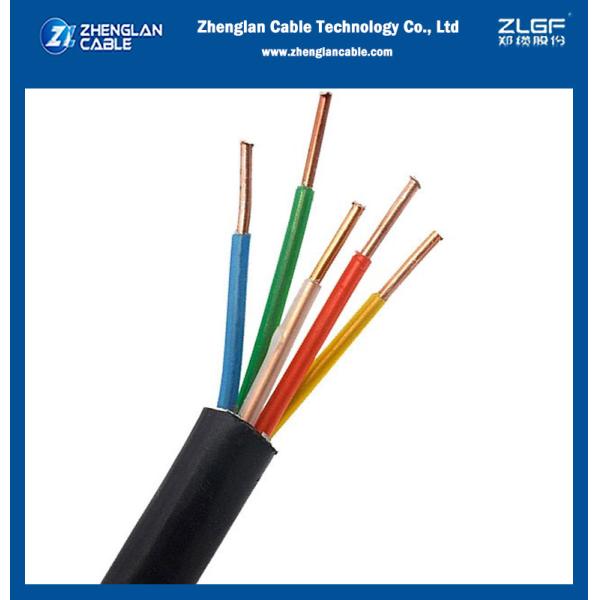

Product picture

XLPE Insulated 1.5mm2 5 Cores Copper Cable 5x1.5mm2 IEC 60228 IEC 60502-1

XLPE Insulated 1.5mm2 5 Cores Copper Cable 5x1.5mm2 IEC 60228 IEC 60502-1

PARAMETER :

XLPE 1.5mm2 5 Core Copper Cable Parameter

Cable Type: CU/XLPE/PVC
Operating voltage, U0 / U (V): 600/1000
Number of cores: 5
Nominal Area (mm2): 1.5
Conductor Stranding: 1 or 7
Insulation Thickness (mm): 0.7
Sheath Thickness (mm): 1.8
Cable Overall Diameter (O.D.) (mm): 11.7
Cable Weight Per 1000 Meters (kg): 170
Resistance DC 20°C Per 1000 Meters (Ω): 12.1
Allowable Ampacity in Air (Amps): 21
Allowable Ampacity in Ground (Amps): 30
Test Voltage: 3.5kV for 5 minutes
Operating temperature (°C) : -15 to +90
Final short circuit temperature (°C): 250
