Bare ACSR Conductor Aluminum Conductor Steel Reinforced FOX(6/2.79, 1/2.79mm) AL1/ST1A EN50182 for Overhead Transmission
Bare ACSR Conductor Aluminum Conductor Steel Reinforced FOX(6/2.79, 1/2.79mm) AL1/ST1A EN50182 for Overhead Transmission
Specifications
Description
Bare Aluminum Conductor Steel Reinforced FOX (6/2.79, 1/2.79mm) AL1/ST1A EN50182

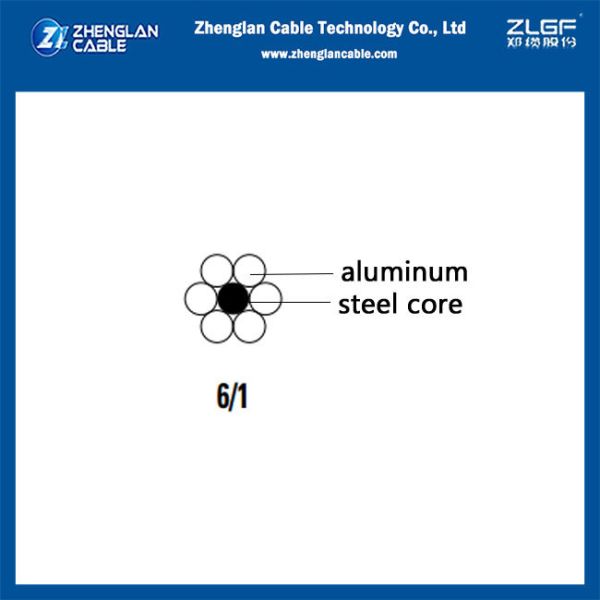

Construction Overview
This steel-cored aluminum stranded wire features a robust construction with a steel core for enhanced strength and aluminum wires for optimal electrical conductivity. The steel core provides mechanical reinforcement while the aluminum wires efficiently transmit electrical energy.
Applications & Advantages
Designed for superior performance in overhead transmission and distribution lines across various voltage levels. Ideal for challenging geographical conditions including river and valley crossings.
Construction Characteristics Specifications
Type of cable Fox
Type of conductor Circular, stranded
Conductor material Aluminum / Steel Core
Dimensional Characteristics
Parameter Value
Code 37-AL1/6-ST1A
Aluminium cross-section 36.7 mm²
Number of aluminium wires 6
Diameter of aluminium wires 2.79 mm
Number of steel wires 1
Diameter of steel wires 2.79 mm
Conductor diameter 8.39 mm
Approximate weight 148.1 kg/km
Electrical Characteristics
Parameter Value
Max. DC resistance of the conductor at 20°C 0.7812 Ohm/km
Mechanical Characteristics
Parameter Value
Rated breaking load 13.21 KN
Hardness type 1350

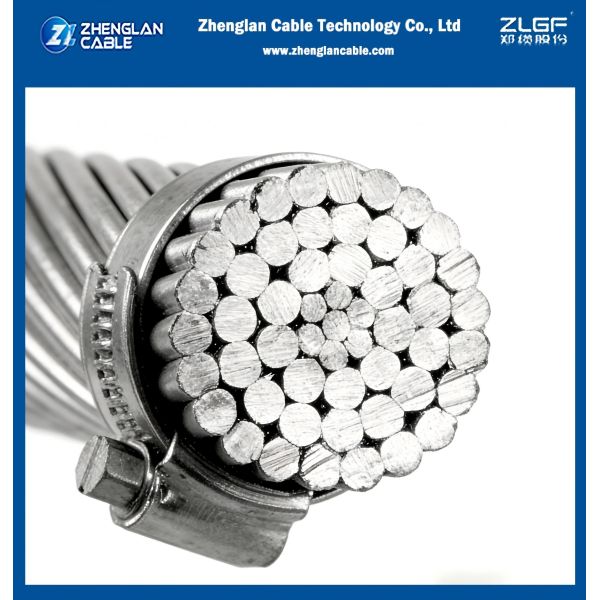

Product Images
Bare ACSR Conductor Aluminum Conductor Steel Reinforced FOX(6/2.79, 1/2.79mm) AL1/ST1A EN50182 for Overhead Transmission Bare ACSR Conductor Aluminum Conductor Steel Reinforced FOX(6/2.79, 1/2.79mm) AL1/ST1A EN50182 for Overhead Transmission Bare ACSR Conductor Aluminum Conductor Steel Reinforced FOX(6/2.79, 1/2.79mm) AL1/ST1A EN50182 for Overhead Transmission Bare ACSR Conductor Aluminum Conductor Steel Reinforced FOX(6/2.79, 1/2.79mm) AL1/ST1A EN50182 for Overhead Transmission
Quality Assurance & Manufacturing Excellence
Our commitment to quality and reliability ensures superior performance for all your power transmission needs.
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Custom specifications accepted
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
  • Registered capital of $30 million with 60,000㎡ manufacturing facility
  • Advanced testing equipment and 100% inspection before factory shipment
  • Ample inventory with guaranteed efficient shipping timelines
