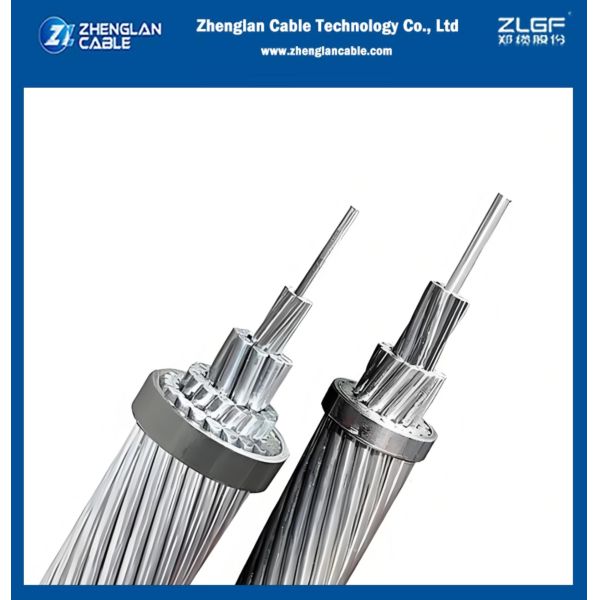

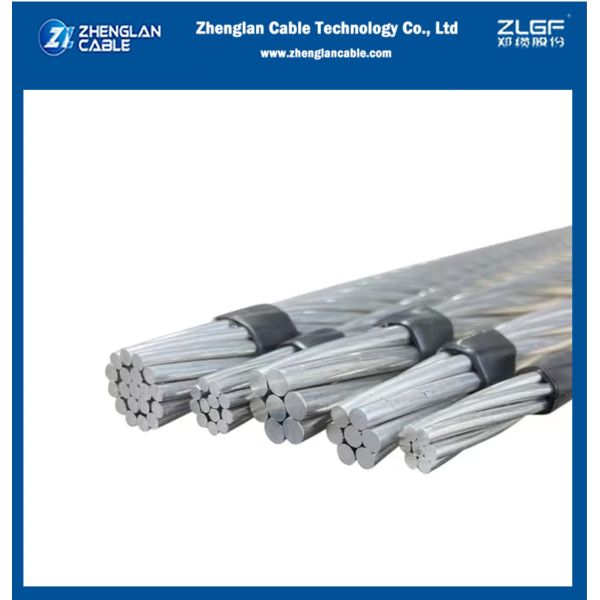

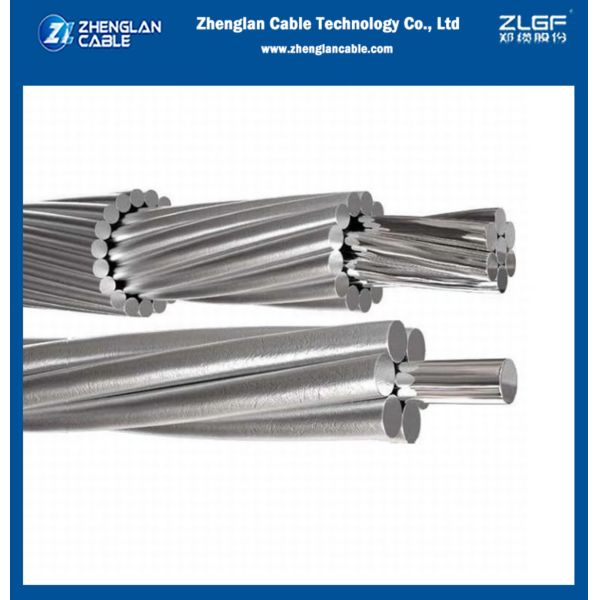

AAAC Oak 100mm2 7/4.45mm Conductor All Aluminum Alloy Conductor bare AAAC BS EN50183
AAAC Oak 100mm2 7/4.45mm Conductor All Aluminum Alloy Conductor bare AAAC BS EN50183
AAAC Oak 100mm2 7/4.45mm Conductor All Aluminum Alloy Conductor bare AAAC BS EN50183
AAAC Oak 100mm2 7/4.45mm Conductor All Aluminum Alloy Conductor bare AAAC BS EN50183
AAAC Oak 100mm2 7/4.45mm Conductor All Aluminum Alloy Conductor bare AAAC BS EN50183
AAAC Oak 100mm2 7/4.45mm Conductor All Aluminum Alloy Conductor bare AAAC BS EN50183
Specifications
Description

Applications


AAAC Aluminum Alloy Conductor is Used as bare overhead conductor for primary and secondary distribution. Designed utilizing a high-strength aluminum alloy to achieve a high strength-to-weight ratio; affords better sag characteristics. Aluminum alloy gives higher resistance to corrosion than ACSR.


Specification


Physical contents of aluminum alloy :-
1. Resistivity – 0.0326 Ohms mm2/m at 20°C
2. Density – 2.70 kgm/dm3 at 20°C
3. Coefficient of Linear Expansion – 23 x 10-6 / °C
4. Constant Mass Temperature Coefficient (a) – 0.00360/ °C
5. Material – Heat treated Al. Mg. Si. Alloy
– Approximately 0.5% Mg & 0.5% Si


Code nam e Nom inal aera No. of w ires Diam eter Weight Rated s trength Max D.C
res is tance at 20°C
Wire Cond
m m 2
m m m m KG/KM KM O/k m
Oak 100 7 4.65 13.95 325 33.98 0.2769


AAAC Oak 100mm2 7/4.45mm Conductor All Aluminum Alloy Conductor bare AAAC BS EN50183

AAAC Oak 100mm2 7/4.45mm Conductor All Aluminum Alloy Conductor bare AAAC BS EN50183

AAAC Oak 100mm2 7/4.45mm Conductor All Aluminum Alloy Conductor bare AAAC BS EN50183


About Zhenglan Cable Technology. Co., Ltd

We, Zhenglan Cable Technology Co., Ltd, are manufacturer of cable and wire with over 20years' experience.
Our factory workshop taking up about 60000SQM is located in Wuzhi County, Jiaozuo city, Henan province, in the middle of China.
Oversea sales center locates in Zhengzhou city, Henan, about 10minutes walk to Zhengdong Railway station, 45minutes' drive to Xinzheng International Airport.
Our main products are
overhead transmission line use bare conductor(ACSR, AAC, AAAC etc)
1-35kv overhead transmission line use insulated conductor
power distribution use 0.6/1kv, 1.8/3kv PVC/XLPE/PE insulated LV(low voltage) power cable armored or unarmored
power distribution use 3.6/6kv, 6/10kv,8.7/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv XLPE insulated MV(medium voltage) power cable armored or unarmored;
300/300V, 300/500V, 450/750V cotrol cable, house wire


The reason you choose us:

  • We are profeesional cable supplier for more than 10 years.
  • Not only provide you good-quality products,but also service you well.
  • We have high work efficency.

If you are interested, please do not hesitate to contact us.Any inquiry will be welcomed.
