Overhead Insulated Cable 0.6/1kV Triplex Aluminum Conductor XLPE Insulated Phase Conductors and Bare AAAC Neutral Wire 2x1/0+1/0AWG
Overhead Insulated Cable 0.6/1kV Triplex Aluminum Conductor XLPE Insulated Phase Conductors and Bare AAAC Neutral Wire 2x1/0+1/0AWG
Specifications
Description

0.6/1kV AAC/XLPE+AAC/XLPE+AAAC 2X1/0+1/0AWG Triplex Aluminum Conductor Overhead Service Drop Cable Wire

Application

0.6/1kV 2X1/0+1/0AWG triplex aluminum overhead cable consists of two insulated phase conductors and one bare alloy neutral messenger conductor. It is designed for low-voltage overhead power distribution, transmitting power from utility overhead lines to residential and small commercial buildings via weather heads.
The cable is rated for 0.6/1kV phase-to-phase voltage. XLPE insulated conductors allow a maximum continuous operating temperature of 90°C, with excellent resistance to outdoor UV radiation, rain, extreme temperature and aging. The bare AAAC neutral wire serves two functions: carrying neutral return current and bearing the tensile load of the whole cable. Two phase conductors are individually covered with black cross-linked polyethylene insulation for reliable outdoor weather protection.

CONSTRUCTION

Phase Conductor

1350-H19 series all aluminum conductor (AAC), standard or compact stranded, size 1/0 AWG

Neutral Messenger Conductor

Bare all aluminum alloy conductor (AAAC) without insulation, acts as neutral path and load-bearing messenger wire

Insulation

Black cross-linked polyethylene (XLPE) insulation extruded separately on each phase conductor, anti-ultraviolet and anti-corrosion

TECHNICAL DATA

Parameter Item Value Unit
Rated Voltage 0.6/1 kV
Test Voltage 4/50 kV/Hz
Minimum Laying Temperature -5 °C
Operating Ambient Temperature Range -30 ~ +90 °C
Max. Continuous Conductor Temperature +90 °C
Short-circuit Temperature (5 seconds) max. +250 °C/5s
Minimum Bending Radius 20 × overall cable outer diameter mm

PARAMETER SPECIFICATION

Parameter Name Value
Cable Code Name AAC/XLPE+AAC/XLPE+AAAC 2X1/0+1/0AWG Triplex
Phase Conductor Material AAC (All Aluminum Conductor)
Single Phase Conductor Size 1/0 AWG
Phase Conductor Stranding 19 strands
Phase Insulation Material XLPE (Cross-Linked Polyethylene)
Phase Insulation Thickness 60 mils
Bare Neutral Messenger Material AAAC (All Aluminum Alloy Conductor)
Bare Neutral Messenger Size 1/0 AWG
Neutral Messenger Stranding 7 strands
Bare Neutral Breaking Strength 2120 Lbs
Cable Weight 392 Lbs/1000 ft
Rated Ampacity 202 Amps

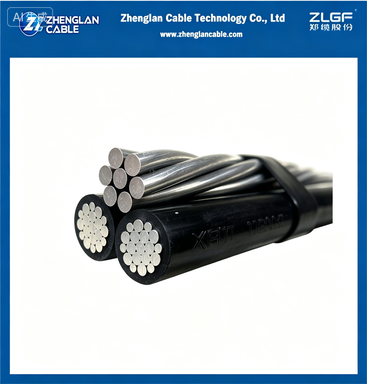

Overhead Insulated Cable 0.6/1kV Triplex Aluminum Conductor XLPE Insulated Phase Conductors and Bare AAAC Neutral Wire 2x1/0+1/0AWG

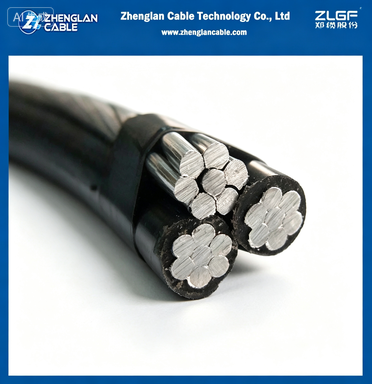

Overhead Insulated Cable 0.6/1kV Triplex Aluminum Conductor XLPE Insulated Phase Conductors and Bare AAAC Neutral Wire 2x1/0+1/0AWG

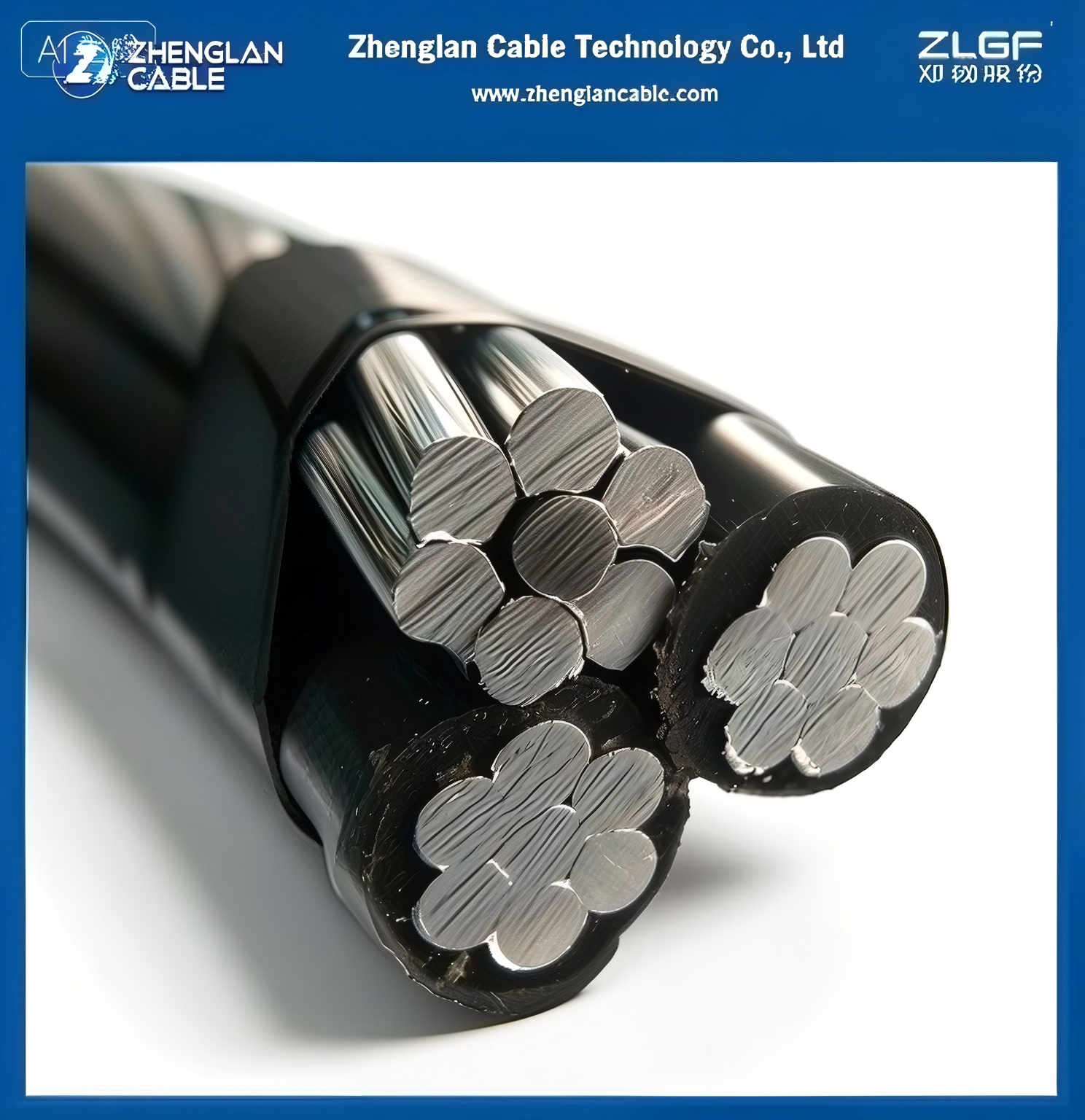

Overhead Insulated Cable 0.6/1kV Triplex Aluminum Conductor XLPE Insulated Phase Conductors and Bare AAAC Neutral Wire 2x1/0+1/0AWG

Why you choose us?

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.
