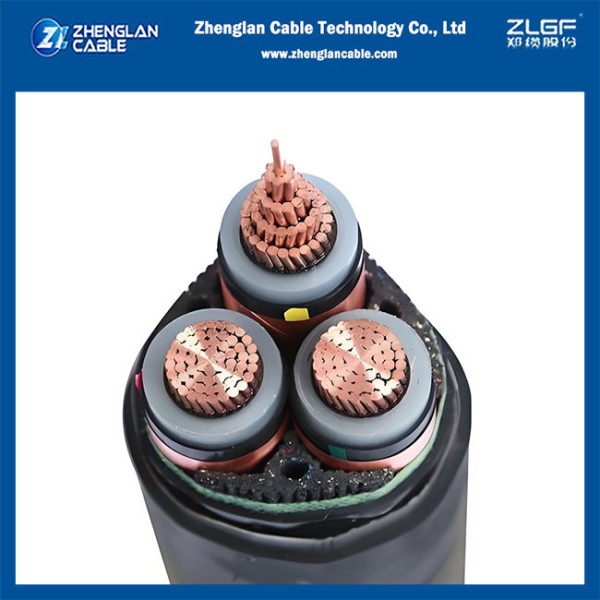

Underground Power Cable 6-35 kV XLPE Insulated SWA Armored - Three Core Medium Voltage Underground Cable IEC 60502-2
Underground Power Cable 6-35 kV XLPE Insulated SWA Armored - Three Core Medium Voltage Underground Cable IEC 60502-2
Specifications
Description

Product Description

This Medium Voltage Underground Power Cable is the premier solution for reliable and efficient power distribution in demanding environments. Featuring a copper conductor, XLPE insulation, and a robust Steel Wire Armored (SWA) construction, this cable is engineered for direct burial, duct installation, and use in areas requiring high mechanical protection. Ideal for power stations, industrial plants, and urban infrastructure projects, our cable ensures uninterrupted power supply even under severe mechanical stress and challenging soil conditions. It is the backbone of modern electrification in emerging markets.

Product Construction

Conductor: High-conductivity, plain or tinned annealed copper, stranded (Class 2) to ensure flexibility.

Conductor screen: semi conductive XLPE compound;

Insulation: Cross-linked polyethylene (XLPE), triple extruded for a seamless, high-integrity insulation layer.

Insulation screen: semi conductive XLPE compound;

Metallic Screen: Copper tape or concentric copper wire screen to ensure fault current capacity and electrical safety.

Armor: Galvanized Steel Wire Armor (SWA) for exceptional mechanical protection. Steel Tape Armor (STA) is also available for lighter duty applications.

Outer Sheath: A robust PVC or PE sheath, resistant to UV, moisture, and soil chemicals, protecting the cable core and armor.

Typical Applications

Underground power distribution in urban and industrial areas

Power supply to industrial plants, refineries, and mines

Substation connections and feeder lines

Building and construction power supplies

Infrastructure projects (railways, airports, ports)

Manufacturing Standards & Specifications

Standards: IEC 60502-2, BS 6622, DIN VDE 0276.

Rated Voltage: 6-35 kV

Core Number: Single Core or 3 Core.

Conductor Material: Copper or Aluminum.

Technical Specifications (Sample Data)

Parameter

Details

Voltage Range

6-35 kV

Conductor

Copper, Class 2 Stranded

Insulation

XLPE

Armor Type

Steel Wire Armored (SWA) / Steel Tape Armored (STA)

Outer Sheath

PVC / PE / HDPE

Max. Conductor Temp.

90°C (Normal), 250°C (Short Circuit)

Bending Radius (Installation)

15D (D = Cable Outer Diameter)


Underground Power Cable 6-35 kV XLPE Insulated SWA Armored - Three Core Medium Voltage Underground Cable IEC 60502-2
Why Choose Zhenglan Cable
Our medium voltage cables are manufactured using the monosil process with state-of-the-art facilities and rigorous quality control procedures. We maintain cleanliness-controlled conditions throughout production to ensure absolute homogeneity of finished insulation materials.
  • OEM/ODM services available
  • Compliance with GB, IEC, BS, ASTM, DIN, VDE, and JIS standards; custom requirements accepted
  • Certified to ISO 9001:2015, ISO 14001:2015, and OHSAS 18001:2007
  • $30 million registered capital with 60,000㎡ factory area
  • Advanced testing equipment with 100% pre-shipment inspection
  • Ample stock inventory with guaranteed efficient shipping
  • Professional pre-sales and after-sales support

Zhenglan Cable Technology offers IEC 60502-2 certified MV cables with competitive factory-direct pricing, fast lead times, and full type-test reports. Contact us for a customized quotation.
