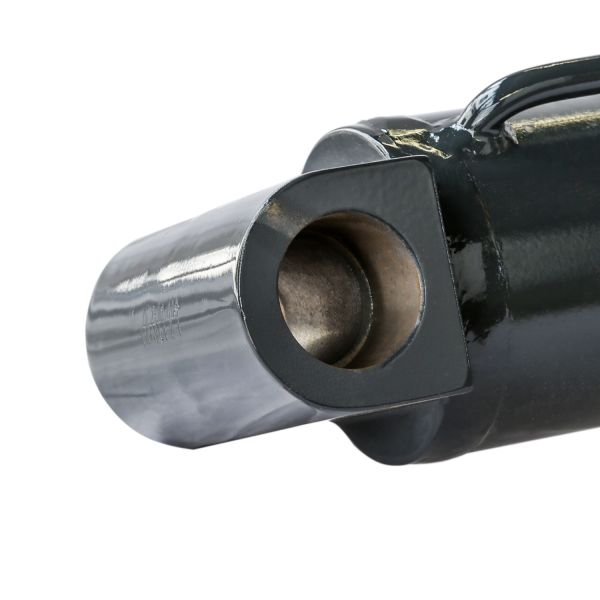

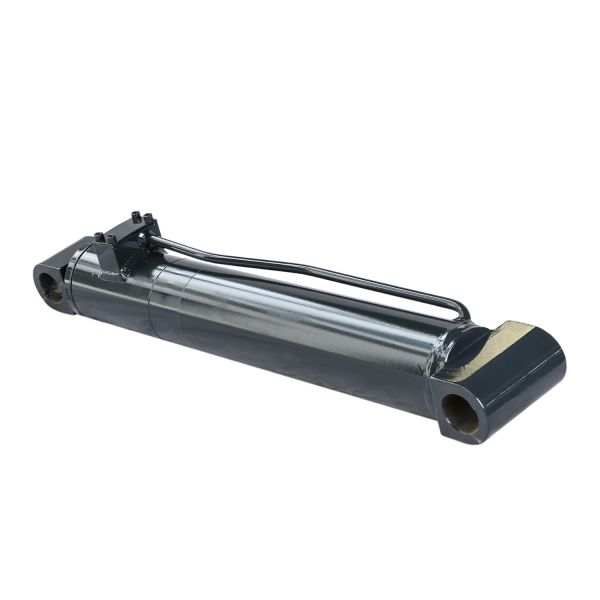

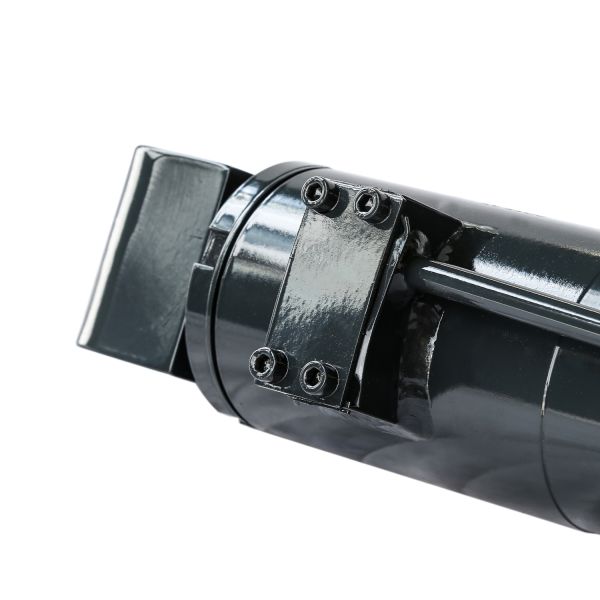

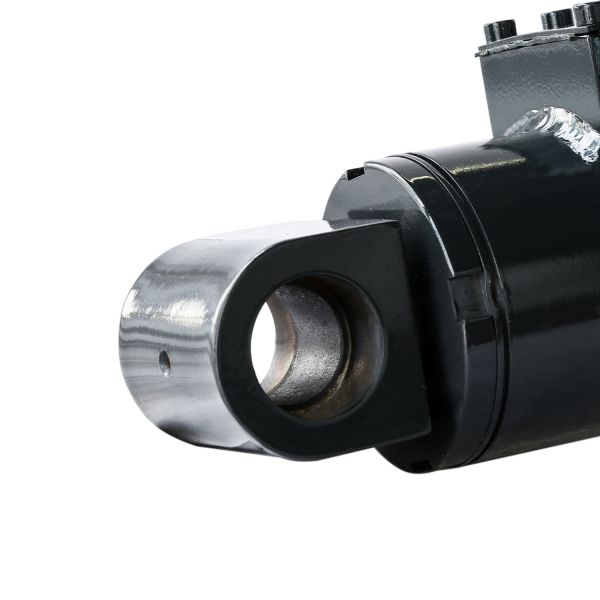

Hard Chrome Plated Steel Double Pinned High Tonnage Lifting Cylinder
Hard Chrome Plated Steel Double Pinned High Tonnage Lifting Cylinder
Hard Chrome Plated Steel Double Pinned High Tonnage Lifting Cylinder
Hard Chrome Plated Steel Double Pinned High Tonnage Lifting Cylinder
Hard Chrome Plated Steel Double Pinned High Tonnage Lifting Cylinder
Hard Chrome Plated Steel Double Pinned High Tonnage Lifting Cylinder
Hard Chrome Plated Steel Double Pinned High Tonnage Lifting Cylinder
Hard Chrome Plated Steel Double Pinned High Tonnage Lifting Cylinder
Hard Chrome Plated Steel Double Pinned High Tonnage Lifting Cylinder
Hard Chrome Plated Steel Double Pinned High Tonnage Lifting Cylinder
Hard Chrome Plated Steel Double Pinned High Tonnage Lifting Cylinder
Hard Chrome Plated Steel Double Pinned High Tonnage Lifting Cylinder
Hard Chrome Plated Steel Double Pinned High Tonnage Lifting Cylinder
Hard Chrome Plated Steel Double Pinned High Tonnage Lifting Cylinder
Specifications
MOQ :
1 unit
Price :
$560-600 / unit
Inner Tube Diameter :
260
Maximum Stroke :
1450
Warranty :
1 Year
Material :
Steel
Outer Tube Diameter :
310
Overall Length :
1730
Rod Diameter :
170
Showroom Location :
Other
Surface Treatment Of Piston Rod :
Hard Chrome Plated
Type :
High-Tonnage Cylinder
Place of Origin :
China
Brand Name :
Zhengfeng
Certification :
ISO
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
L/C, T/T, D/P, D/A
Description
High Quality Hard Chrome Plated Steel Double-pinned High-Tonnage Lifting Cylinder
Custom engineered hydraulic lifting cylinders designed for demanding industrial applications requiring high-tonnage capacity and reliable performance.
Hard Chrome Plated Steel Double Pinned High Tonnage Lifting Cylinder Hard Chrome Plated Steel Double Pinned High Tonnage Lifting Cylinder
Manufacturing Specifications
Parameter Specification Parameter Specification
Inner tube diameter 18~1200mm Stroke ≤15000mm
Rod diameter 12~1000mm Acting type Single/Double
Material Steel/Stainless Steel/Aluminum Working pressure/Testing pressure ≤50Mpa
Surface treatment Electroplating Package Wooden Case
Shipment By sea/Train/Air Freight Warranty 1 Year
Product Features
Hard Chrome Plating
Superior corrosion resistance and extended service life
Double-Pinned Design
Enhanced stability and load distribution for high-tonnage applications
Custom Sizing
Available in wide range of diameters and stroke lengths
Material Options
Steel, stainless steel, or aluminum construction
