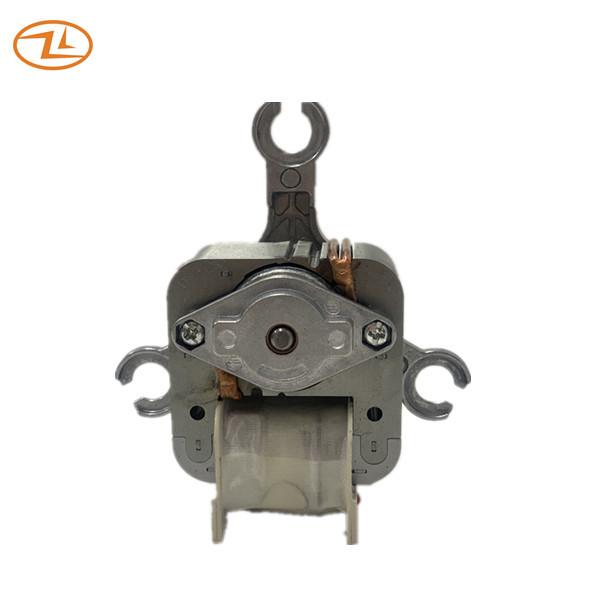

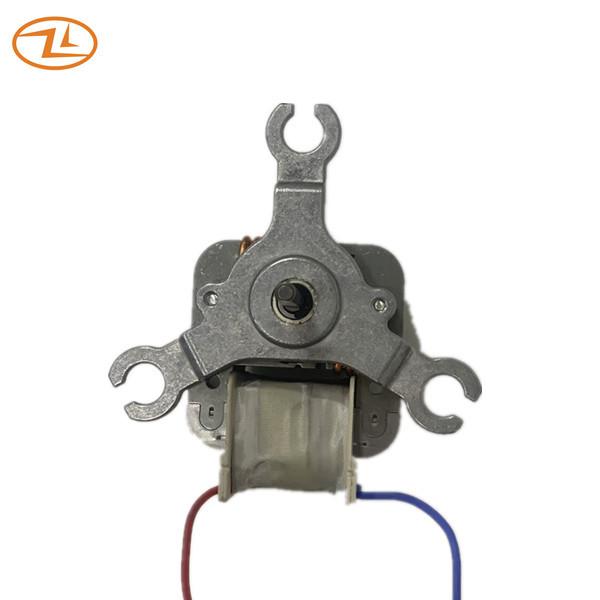

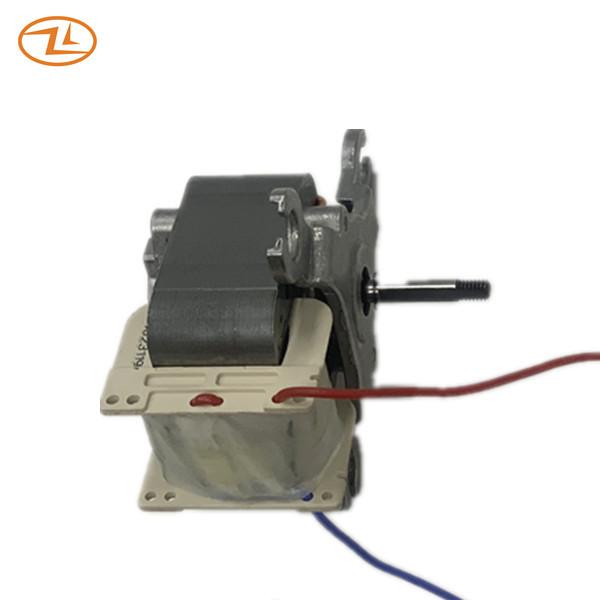

Electric Grill Air Fryer Fan Motor FG551 2900 RPM 30.5mm With Thermal Fuse
Electric Grill Air Fryer Fan Motor FG551 2900 RPM 30.5mm With Thermal Fuse
Electric Grill Air Fryer Fan Motor FG551 2900 RPM 30.5mm With Thermal Fuse
Electric Grill Air Fryer Fan Motor FG551 2900 RPM 30.5mm With Thermal Fuse
Electric Grill Air Fryer Fan Motor FG551 2900 RPM 30.5mm With Thermal Fuse
Electric Grill Air Fryer Fan Motor FG551 2900 RPM 30.5mm With Thermal Fuse
Specifications
Brand Name :
Zhaoli
Model Number :
YJ62/300L
Certification :
UL, CUL, CE, CCC, VDE, ROHS, REACH
Place of Origin :
China
MOQ :
2000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + pallets
Name :
Air fryer motor FG550
Rated voltage :
120V 60HZ
Stack size :
62.5x62.5mm
Lamination thickness :
30.5mm
Insulation class :
CL.H
Bearing :
Ball bearing or sleeve bearing
Protection method :
thermal fuse
Fan impeller :
customized
Shaft :
customized
Printing :
Customized printing
Packing :
Customized packing
Type :
AC shaded pole motor
Phase :
Single phase
Application :
air fryer
Description

Shaded Pole Motor For Electric Grill With Air Fryer Use YJ62/300L 120V 60HZ FG551

This type of shaded pole is mainly applied in smart cook with multi-function like air fryer, bake, roast, broil.We can also provide fan impellers (for cooling and blowing the heat into the food).

Model

Rated Voltage/ Frequency

V/HZ

 On Load
Starting voltage V

Current

A

Input Power

W

Speed

RPM
YJ62/300L 120 60 <96V <=1.15 67+/-15% 2900+/-200

Rated voltage/frequency 120V 60HZ
Insulation class CL.H
Rotation direction CW (view from the output shaft)
Working Temp. 0~40℃
Working humidity 90% RH max
Voltage fluctuation 5% range of the rated voltage at rated load
Insulation resistance The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
Extreme temp. limit 180℃

Drawing:
Electric Grill Air Fryer Fan Motor FG551 2900 RPM 30.5mm With Thermal Fuse

Application: Air fryer with multi-functions
