Multipurpose Air Fryer Motor CL H 60HZ Ball Bearing Fan Motor
Multipurpose Air Fryer Motor CL H 60HZ Ball Bearing Fan Motor
Multipurpose Air Fryer Motor CL H 60HZ Ball Bearing Fan Motor
Multipurpose Air Fryer Motor CL H 60HZ Ball Bearing Fan Motor
Specifications
Brand Name :
Zhaoli
Model Number :
YJ61-25L
Certification :
UL, CUL, CE, CCC, VDE, ROHS, REACH
Place of Origin :
China
MOQ :
2000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + pallets
Name :
Air fryer motor OL600
Rated voltage :
120V 60HZ
Stack size :
61x60.5mm
Lamination thickness :
25mm
Insulation class :
CL.H
Bearing :
Ball bearing or sleeve bearing
Protection method :
thermal fuse/ current fuse
Fan impeller :
customized
Shaft :
customized
Printing :
Customized printing
Packing :
Customized packing
Type :
AC shaded pole motor
Phase :
Single phase
Application :
air fryer
Description

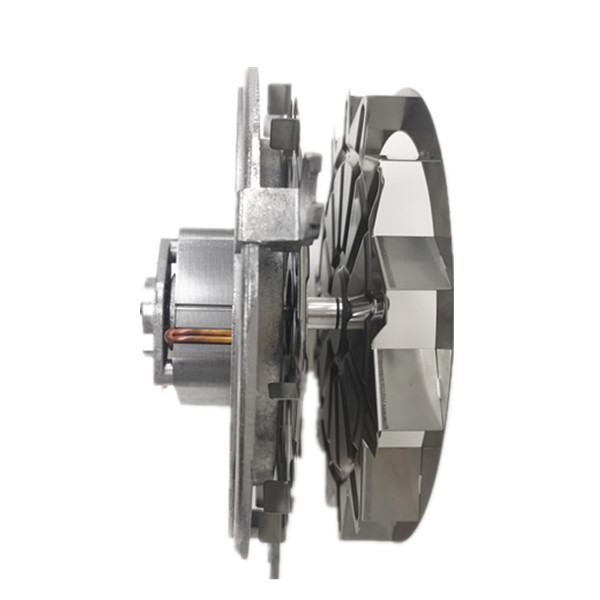

Multipurpose Air Fryer Motor YJ61-25L Ball Bearing CL.H 120V 60HZ

This type of shaded pole motor is mainly applied in Air Fryer products.Fan impellers are customized for cooling the motor and blowing the heat into the food area. It is flexible in stack thickness, shaft dimension, bearings and fitting dimensions.

Specification:

Model

Rated

Voltage/ Frequency

V/HZ

 Free Load

Current

A

Input Power

W

Speed

RPM
YJ61-25L 120 60 0.71+/-15% 44+/-15% >=3300
YJ61-25L 230 50 0.32+/-15% 35+/-15%

>=2700

Model

Rated

Voltage/ Frequency

V/HZ

 Free Load On Load

Current

A

Speed

RPM

Current

A

Input Power

W

Speed

RPM
YJ61-16 120 60 0.3 3300 0.35 27 2900
YJ61-20 120 60 0.4 3300 0.5 38 3000
YJ61-25 120 60 0.5 3300 0.6 45 3000
YJ61-16 230 50 0.2 2800 0.25 25 2500
YJ61-20 230 50 0.25 2800 0.3 35 2550
YJ61-25 230 50 0.3 2800 0.35 42 2550


Drawing:

Multipurpose Air Fryer Motor CL H 60HZ Ball Bearing Fan Motor

Application: Air fryer

Multipurpose Air Fryer Motor CL H 60HZ Ball Bearing Fan Motor
