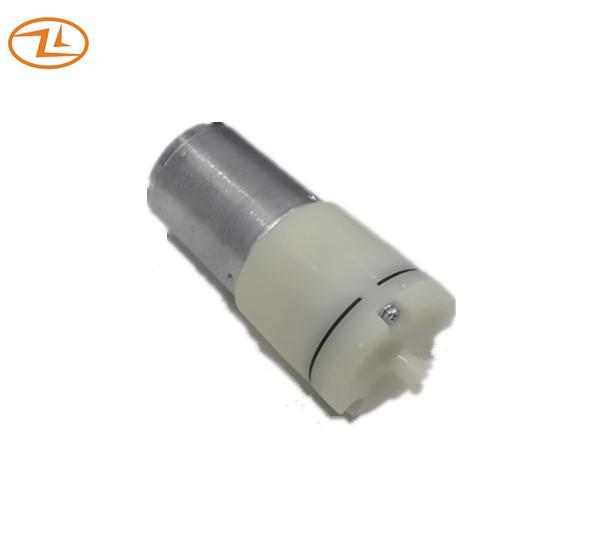

Blood Pressure DC Air Pump Motor 300mmHg 6.0V With Electromagnetic Valve
Blood Pressure DC Air Pump Motor 300mmHg 6.0V With Electromagnetic Valve
Blood Pressure DC Air Pump Motor 300mmHg 6.0V With Electromagnetic Valve
Blood Pressure DC Air Pump Motor 300mmHg 6.0V With Electromagnetic Valve
Blood Pressure DC Air Pump Motor 300mmHg 6.0V With Electromagnetic Valve
Blood Pressure DC Air Pump Motor 300mmHg 6.0V With Electromagnetic Valve
Specifications
Brand Name :
Zhaoli
Model Number :
DC2430PD01
Certification :
CE, ROHS, REACH
Place of Origin :
China
MOQ :
2000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000pcs per day
Delivery Time :
25-45 days
Packaging Details :
cartons + pallets
Name :
DC air pump
Rated voltage :
6.0VDC
Bearing :
sleeve bearing
Packing :
Customized packing
Printing :
Customized printing
Application :
portable nebulizer/ blood pressure
Pump type :
diaphragm air pump
Description

Blood Pressure Use DC Air Pump And Electromagnetic Valve 6.0VDC 300mmHg

Diaphragm Pump Specification:

Electric characteristics

Rated voltage 6.0VDC
Operating voltage 4.0 - 7.2 VDC
Rated current The highest current is less than 380mA while pressurizing with DC6.0V from 0 to 300mmHg.
Inflation time It takes Less than 10 seconds to pressurize with DC6.0V from 0 to 300 mmHg in a 500cc tank.
Leakage Pressurizing from 0 till 300±30mmHg in a 500CC tank, then holding for 30 seconds. After that, measuring the dropped pressure value, which shall be less than 2.0mmHg/min.
Max pressure The maximum pressure value shall be more than 400 mmHg while pressurizing with DC 6.0 V in a 500CC tank from 0 till dead-head pressure value.
Restart voltage Fill pressure until 200mmHg pause,and then add DC 3.0V voltage pump should restart.
Dielectric strength 600VAC/1S leakage current <=5mA
Temperature rise <60K

Electromagnetic Valve Specification:

Rated voltage 6.0VDC
Operating voltage 4.0 - 7.2 VDC
Rated current 60mA +/-10%
Rated power 0.36W
Range of operation pressure Max 330mmHg
Insulation class A
Used fluid Air
Temperature rise <40K
Leakage Pressurizing from 0 till 300mmHg in a 300CC tank .then holding for 30 seconds. After than, measuring the dropped pressure value, which shall be less than 3mmHg/min
Exhaust speed With 500CC volume, it takes less than 4.0seconds to exhaust the pressure from300mmHg to 15mmHg
Insulation resistance The insulation resistor is 50MΩ Min at DC500V between Coil and non-charge Metal.
Dielectric strength It has to test between coil and outer mental parts at applying AC 500V for 1minute,and if no damage and abnormality occurs, then test at AC 600V for 1second.

Drawing:

Blood Pressure DC Air Pump Motor 300mmHg 6.0V With Electromagnetic ValveBlood Pressure DC Air Pump Motor 300mmHg 6.0V With Electromagnetic Valve

Application: Blood pressure, portable nebulizer, Inhaler, Atomizer

Blood Pressure DC Air Pump Motor 300mmHg 6.0V With Electromagnetic Valve
