2700 RPM Single Phase Asynchronous Motor 230V 50HZ With Round Plate
2700 RPM Single Phase Asynchronous Motor 230V 50HZ With Round Plate
2700 RPM Single Phase Asynchronous Motor 230V 50HZ With Round Plate
2700 RPM Single Phase Asynchronous Motor 230V 50HZ With Round Plate
Specifications
Brand Name :
Zhaoli
Model Number :
YJ61H-16
Certification :
UL, CUL, CE, CCC, VDE, ROHS, REACH
Place of Origin :
China
MOQ :
2000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + pallets
Name :
oven motor
Rated voltage :
220-240V 50HZ
Stack size :
60.5x60.5mm
Lamination thickness :
15.5mm
Insulation class :
CL.H
Fan blade :
φ152mm
Bearing :
sleeve bearing
Shaft :
customized
Printing :
Customized printing
Packing :
Customized packing
Motor type :
Asynchronous motor
Phase :
Single phase
Protect feature :
Explosion-proof
Application :
Oven/grille
Description

Oven Fan Motor YJ61H-16 220-240V 50HZ With Round Plate And Fan CL.H

Specification:

Model

Rated Voltage/ Frequency

V/HZ

 Free Load On Load

Current

A

Speed

RPM

 Current A

Input

W

Speed

RPM
YJ61H-16 230 50 0.130 2700 <=0.2 <=25 1200+/- 10%
YJ61-16 120 60 0.250 3200 <=0.25 <=28

1200+/- 10%

This is one kind of shaded pole motors, mainly applied in built-in ovens or stand ovens. It is flexible in stack thickness, shaft dimension, bearings and fitting dimensions.


Drawing:

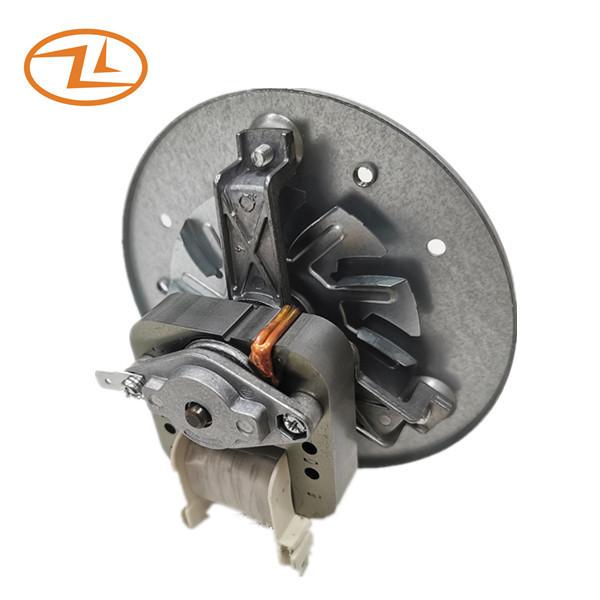

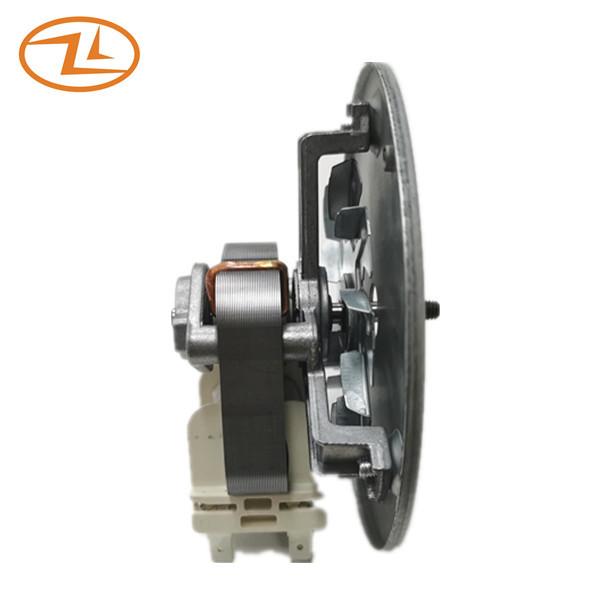

2700 RPM Single Phase Asynchronous Motor 230V 50HZ With Round Plate

Application: Oven

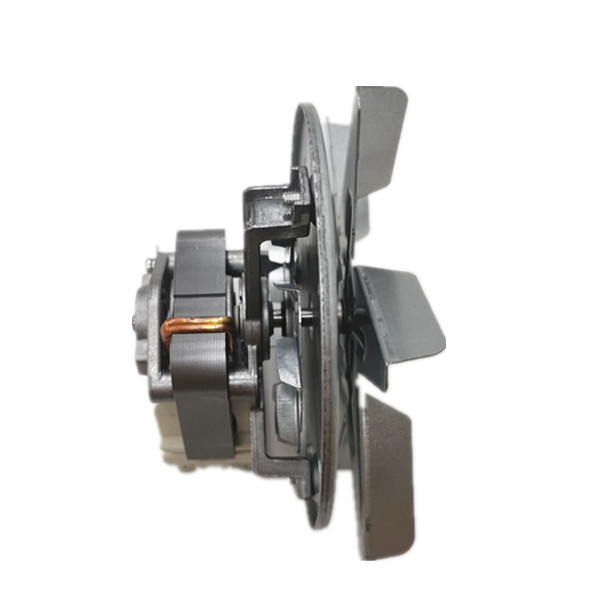

2700 RPM Single Phase Asynchronous Motor 230V 50HZ With Round Plate
