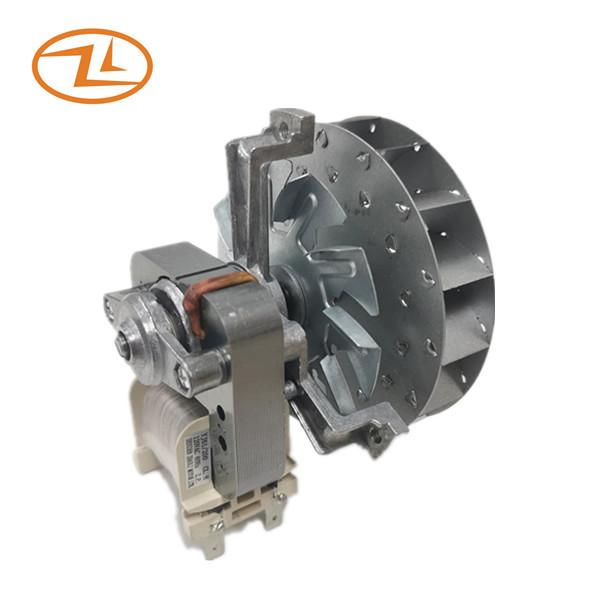

3200 RPM Oven Shaded Pole Fan Motor 15.5mm 120V Sleeve Bearing
3200 RPM Oven Shaded Pole Fan Motor 15.5mm 120V Sleeve Bearing
3200 RPM Oven Shaded Pole Fan Motor 15.5mm 120V Sleeve Bearing
3200 RPM Oven Shaded Pole Fan Motor 15.5mm 120V Sleeve Bearing
3200 RPM Oven Shaded Pole Fan Motor 15.5mm 120V Sleeve Bearing
3200 RPM Oven Shaded Pole Fan Motor 15.5mm 120V Sleeve Bearing
Specifications
Brand Name :
Zhaoli
Model Number :
YJ61-16
Certification :
UL, CUL, CE, CCC, VDE, ROHS, REACH
Place of Origin :
China
MOQ :
2000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + pallets
Name :
convection fan oven motor SP100
Rated voltage :
120V 60HZ
Stack size :
60.5x60.5mm
Lamination thickness :
15.5mm
Insulation class :
CL.H
Fan blade :
φ100mm
Bearing :
sleeve bearing
Shaft :
customized
Printing :
Customized printing
Packing :
Customized packing
Motor type :
Asynchronous motor
Phase :
Single phase
Protect feature :
Explosion-proof
Application :
Oven/grille
Description

Oven Motor Shaded Pole Motor YJ61/200 120V 60HZ Sleeve Bearing

Specification:

Model

Rated Voltage/ Frequency

V/HZ

 Free Load On Load (fan impeller)

Current

A

Speed

RPM

 Current A

Input

W

Speed

RPM
YJ61-16 120 60 0.250 3200 <=0.4 21+/- 20% 3050+/-200
YJ61-16 230 50 0.120 2800 <=0.2 17+/- 20%

2700+/-200

Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.

Drawing:

3200 RPM Oven Shaded Pole Fan Motor 15.5mm 120V Sleeve Bearing

Application: This is one kind of shaded pole motors, mainly applied in small oven or built-in oven.

3200 RPM Oven Shaded Pole Fan Motor 15.5mm 120V Sleeve Bearing
