Medium Sized Belt Conveyor Feeder Raw Coal Feeding Conveyor Belt Plate Feeder
Medium Sized Belt Conveyor Feeder Raw Coal Feeding Conveyor Belt Plate Feeder
Medium Sized Belt Conveyor Feeder Raw Coal Feeding Conveyor Belt Plate Feeder
Medium Sized Belt Conveyor Feeder Raw Coal Feeding Conveyor Belt Plate Feeder
Specifications
Brand Name :
XHYC
Model Number :
1020\1024\1030\1024L\1030L\1230L
Place of Origin :
SICHUAN,CHINA
MOQ :
1 set
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
300 Sets Per Year
Delivery Time :
45-60D
Packaging Details :
Standard Export Package
Certification :
ISO9001
Product Name :
Medium Sized Belt Conveyor Feeder Raw Coal Feeding Conveyor Belt Plate Feeder
Application :
Mine, Gravel Field, Metallurgy, Building Materials, Chemical Industry, Ore-Dressing, Colliery
Type :
Belt Feeder
Chute Size(mm) :
Determined According to The Project
Material :
Carbon Steel
Warranty :
1 year
Feature :
Reliable and High Performance
Customization :
Available
Description

Medium Sized Belt Conveyor Feeder Raw Coal Feeding Conveyor Belt Plate Feeder


Product introduction

This product is widely used in the processes of mining, crushing, transportation and batching in metal mines, quarrying, metallurgy and cement enterprises. It is an indispensable equipment in raw material processing or continuous production processes, especially suitable for transporting large, high-temperature and sharp materials, and can work reliably in harsh environments such as open-air and humid conditions.

Model B (mm) L (mm) Capacity (m³/h) Feeding Speed (n/s) Max Lump Size (mm) Motor Power (kW) Weight (kg)
B800-3 800 3000 20~240 0.03~0.25 350 5.5~7.5 7060
B800-4.5 4500 8350
B800-6 6000 9650
B800-9 9000 7.5~11 12330
B800-12 12000 14820
B800-15 15000 17900
B800-18 18000 20300
B1000-3 1000 3000 30~300 450 7.5~11 7480
B1000-4.5 4500 8890
B1000-6 6000 10420
B1000-9 9000 13200
B1000-12 12000 11~15 16400
B1000-15 15000 19200
B1000-18 18000 22300
B1250-3 1250 3000 35~460 0.02~0.25 580 7.5~18.5
B1250-4.5 4500
B1250-6 6000 15~22
B1250-9 9000
B1250-12 12000
B1250-15 15000 22~30
B1250-18 18000
B1600-4.5 1600 4500 45~500 0.02~0.20 700 7.5~18.5
B1600-6 6000
B1600-9 9000 15~22
B1600-12 12000
B1600-15 15000 18.5~30
B1600-18 18000

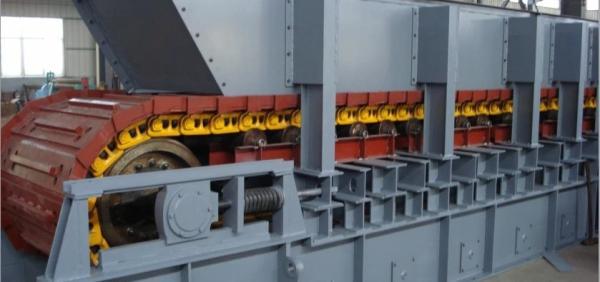

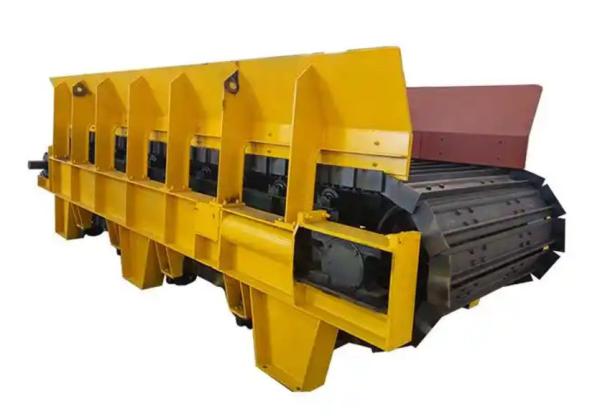

Factory display

Medium Sized Belt Conveyor Feeder Raw Coal Feeding Conveyor Belt Plate Feeder

Medium Sized Belt Conveyor Feeder Raw Coal Feeding Conveyor Belt Plate Feeder

Feeding Conveyor Belt Coal Feeder FAQs

Q1: Can it handle wet or sticky coal?
A: Yes! The anti-clogging plate design and forced material flow prevent blockages even with high-moisture coal or clay-bound materials.

Q2: How does it differ from belt feeders?
A: Unlike belt feeders, the Type B Plate Feeder features interlocking steel plates and forged chains, providing higher impact resistance and longer lifespan for heavy or sharp materials like raw coal or ore.

Q3: Where is it typically used?
A: Coal-fired power plants: Feeding boilers or crushers.

Coking plants: Transporting raw coal to ovens.

Mining: Primary crushing feed systems.

Cement plants: Handling limestone or gypsum.
