Specifications
Place of Origin :
Sichuan, China
Brand Name :
XHYC
Certification :
ISO 9001
MOQ :
1 set
Payment Terms :
,L/C,T/T
Supply Ability :
1000 sets per month
Delivery Time :
15 working days
Packaging Details :
Standard package
Price :
Negotiate
Product name :
Diamond Rubber Lagged Drum Pulley Belt Conveyor Head Pulley For Anti Slip Performance
Material :
Q235 Carbon Steel
Lagging Material :
Natural Rubber / Neoprene
Application :
Head Pulley / Drive Pulley
Industry use :
Mining cement power port handling
OEM Service :
Yes
After Sales :
Provided
Warranty :
1 year
Description

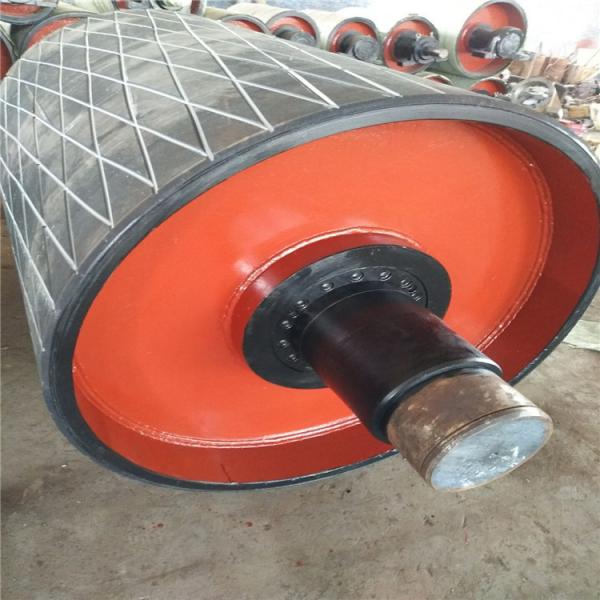

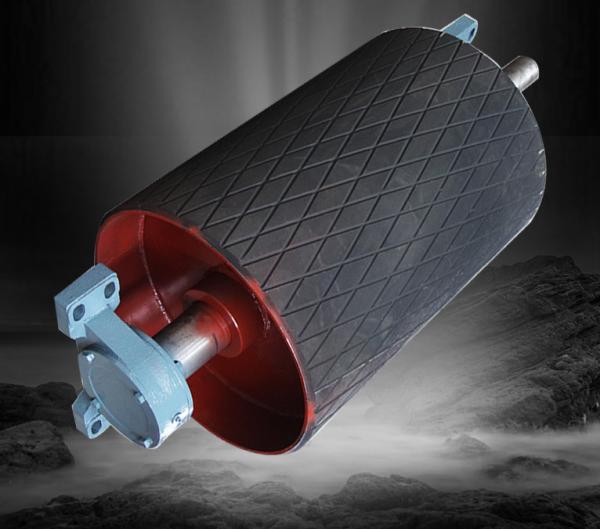

Diamond Rubber Lagging Drum Pulley Conveyor Head Pulley For Anti Slip Performance


This lagged head pulley is designed to improve belt traction and prevent slippage in conveyor systems. The diamond rubber pattern offers increased surface grip, extending belt life and enhancing system performance. It is widely used in heavy-duty bulk handling across mining, cement, power, and port industries.


Key Features And Advantages


1. Diamond pattern rubber surface improves belt grip
2. Reduces slippage and boosts power transmission efficiency
3. Q235 steel shell and wear resistant lagging for long service life
4. Customizable in diameter, length, and lagging thickness
5. Optional cold bonding or hot vulcanized lagging methods
6. Certified by ISO 9001 CE and SGS standards


Application Industries


1. Mining and quarry conveyor belts

2. Cement material transport systems

3. Coal and biomass conveyor pulleys in power plants

4. Bulk handling at port terminals and grain silos

5. Agricultural belt systems for feed and grain


Technical Specifications


Attribute Value
Lagging Thickness Options 8mm, 10mm, 12mm, 15mm
Pulley Diameter Range 300mm - 2000mm
Pulley Length Range 500mm - 4000mm
Operating Temperature Range -20°C to 80°C
Lagging Pattern Diamond Groove
Surface Treatment Options Cold Bonding / Hot Vulcanization


Company Profile

Sichuan Xinghe Yongchen Machinery Equipment Co., Ltd. is located in Zigong, Sichuan, a key city in the Chengdu-Chongqing Economic Circle. Originating from the Rong County Hongguang Conveying Machinery Factory founded in 1992, the company restructured in 2006 into Sichuan Zigong Hongguang Conveying Machinery Manufacturing Co., Ltd., and officially renamed itself in 2021 after a merger, entering a new phase of development.

With a registered capital of 25.1 million yuan and a 73,000 m² facility, the company employs 216 staff, including 35 engineers and technicians. It integrates R&D, design, production, and sales, specializing in mining machinery and complete system solutions. Main products include general and mining belt conveyors, tubular and curved conveyors, bucket elevators, screw conveyors, apron feeders, chain conveyors, buried scraper conveyors, and crushing and screening systems.

These products are widely used in industries such as power, coal, metallurgy, construction, chemicals, and transportation, with an annual output value of 1 billion yuan. The company is ISO 9001:2015 and GB/T19001:2016 certified, holds multiple patents, and is a member of the China Heavy Machinery Industry Association. It has received honors including “Sichuan Innovative SME” and “Zigong Advanced Collective in Industrial Reconstruction 2022.”

Guided by its core values—“Quality First, Technology Leadership, Premium Service, and Pursuit of Excellence”—the company is committed to building long-term partnerships and driving innovation-led, sustainable growth. With a focus on upgrading traditional industries and embracing new technologies, Xinghe Yongchen is striving to become a modern, high-tech manufacturer in the mining equipment sector.


Factory Display

Diamond Rubber Lagged Drum Pulley Belt Conveyor Head Pulley For Anti Slip Performance

Diamond Rubber Lagged Drum Pulley Belt Conveyor Head Pulley For Anti Slip Performance

Diamond Rubber Lagged Drum Pulley Belt Conveyor Head Pulley For Anti Slip Performance
