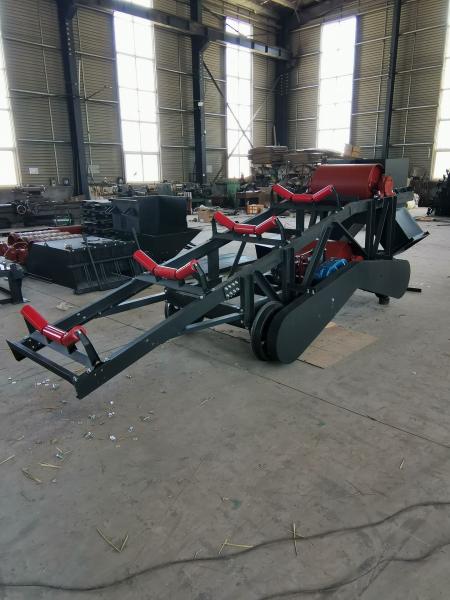

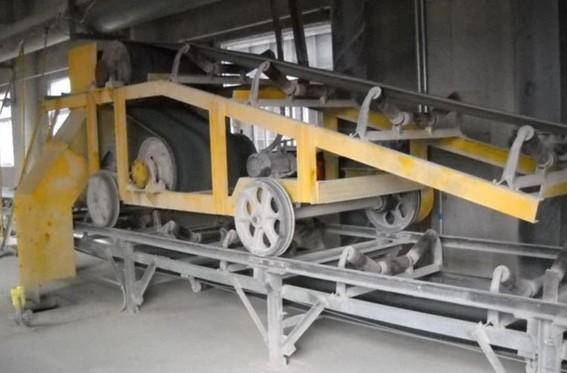

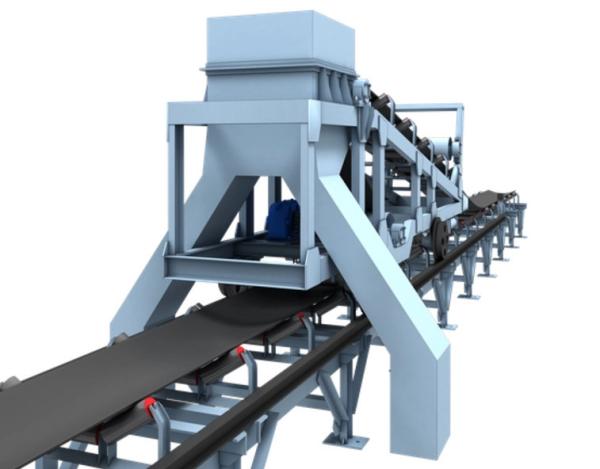

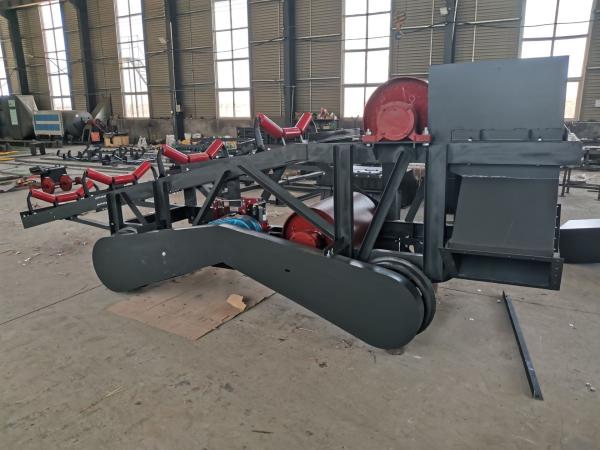

Traveling Belt Conveyor Tripper High Efficiency Versatile Discharge System

The traveling belt conveyor tripper is a flexible unloading solution designed for horizontal conveyor systems. It moves along the length of the conveyor and allows materials to be discharged at multiple points. This system increases material distribution efficiency in industries such as mining, cement, agriculture, and energy.

Discharge Options

• Three way discharge allows unloading in the middle and on both sides of the belt note that both sides cannot be discharged simultaneously
• Two way discharge supports unloading on either side or in the middle and one side
• Single side discharge supports unloading on only one side for streamlined operations

System Compatibility

• Compatible with TD75 and DTIIA series belt conveyors
• Handles bulk materials including coal ores gravel sand cement fertilizer and chemicals
• Smooth integration ensures consistent performance with minimal system adjustments

Main Advantages

• Unloading flexibility along the full conveyor length reduces material handling bottlenecks.
• Multiple discharge modes increase adaptability to complex worksite layouts.
• Movable design allows easy positioning along rails.
• Heavy-duty steel frame construction ensures durability and strength.
• Safe operation supported by emergency stop and guide rail systems.
• Optional covers and rubber seals are available to reduce dust and material spillage.

Applications

• Mining industry for distributing coal or mineral output.
• Cement production facilities for limestone clinker and similar materials.
• Agricultural warehouses and grain storage systems.
• Power plants for biomass or coal transportation.
• Chemical factories for controlled unloading of raw materials.

Why Choose Our Tripper

• Proven efficiency in diverse industrial operations.
• Minimized labor and downtime through automation.
• High structural durability with steel frame components.
• Multiple successful applications worldwide in large- and mid-scale facilities.

Technical Specifications

Company Profile

Sichuan Xinghe Yongchen Machinery Equipment Co., Ltd. is located in Zigong, Sichuan, a key city in the Chengdu-Chongqing Economic Circle. Originating from the Rong County Hongguang Conveying Machinery Factory founded in 1992, the company restructured in 2006 into Sichuan Zigong Hongguang Conveying Machinery Manufacturing Co., Ltd., and officially renamed itself in 2021 after a merger, entering a new phase of development.

With a registered capital of 25.1 million yuan and a 73,000 m² facility, the company employs 216 staff, including 35 engineers and technicians. It integrates R&D, design, production, and sales, specializing in mining machinery and complete system solutions. Main products include general and mining belt conveyors, tubular and curved conveyors, bucket elevators, screw conveyors, apron feeders, chain conveyors, buried scraper conveyors, and crushing and screening systems.

These products are widely used in industries such as power, coal, metallurgy, construction, chemicals, and transportation, with an annual output value of 1 billion yuan. The company is ISO 9001:2015 and GB/T19001:2016 certified, holds multiple patents, and is a member of the China Heavy Machinery Industry Association. It has received honors including “Sichuan Innovative SME” and “Zigong Advanced Collective in Industrial Reconstruction 2022.”

Guided by its core values—“Quality First, Technology Leadership, Premium Service, and Pursuit of Excellence”—the company is committed to building long-term partnerships and driving innovation-led, sustainable growth. With a focus on upgrading traditional industries and embracing new technologies, Xinghe Yongchen is striving to become a modern, high-tech manufacturer in the mining equipment sector.
