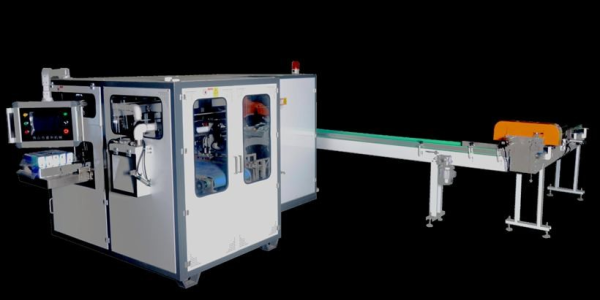

Automatic Facial Tissue Paper Packing Machine 15Kw Paper Bundle Packing Machine With INVT Servo Motor
Automatic Facial Tissue Paper Packing Machine 15Kw Paper Bundle Packing Machine With INVT Servo Motor
Automatic Facial Tissue Paper Packing Machine 15Kw Paper Bundle Packing Machine With INVT Servo Motor
Automatic Facial Tissue Paper Packing Machine 15Kw Paper Bundle Packing Machine With INVT Servo Motor
Automatic Facial Tissue Paper Packing Machine 15Kw Paper Bundle Packing Machine With INVT Servo Motor
Automatic Facial Tissue Paper Packing Machine 15Kw Paper Bundle Packing Machine With INVT Servo Motor
Specifications
Model Number :
CZ20
Speed :
30 bags/min
Delivery Time :
30 working days
Supply Ability :
300
Control system :
MITSUBISHI PLC
Packaging Details :
wooden pallet packing
Place of Origin :
FOSHAN,CHINA
Machine Color :
White
Payment Terms :
T/T
Warranty :
one year
MOQ :
1 SET
Voltage :
380V,50HZ
Brand Name :
ZhaoGuang
Name :
Facial Tissue Paper Packing Machine
Description
Facial Tissue Bundle Packing Machine High Speed Fully Automatic INVT Servo Motor
Technical Specifications
Machine packing range
L(210-420mm)*W(150-400mm)*H(90-120mm)
Customer Packing size
210*190mm(3pcs),350*190mm(5pcs),350*380mm(10pcs),420*380mm(12pcs)
Packing speed
20-30 bags/min
Parameters setting
MITSUBISHI touch screen
Control system
MITSUBISHI PLC
Servo motor
5sets servo motor(INVT)
Packing type
automatic bagging and sealing
Conveyor
6 meters straight conveyor
Tissue tidy
automatic tidying system
Total power
15Kw,380V,50Hz
Air pressure
0.6Mpa(user supplied)
Packing material
OPP,CPP,PE hot sealing pre-made bag
Machine features
  1. adopt PLC and servo motors to drive the products feeding,overturn,counting,bag feeding,bag opening,bagging,sealing automatically.
  2. bagging and sealing:adopt the mould negative pressure type bagging and sealing to keep the products shape nicely.
  3. HIM:adopt MITSUBISHI touch screen to set the parameter to help to operate the machine easily.
  4. Fault tracked and warmed:the fault will be showed on the touch screen and tracked the reason to make easy to solve the fault.
  5. monitoring system:bags controlled,product checking to keep the machine won’t pack without products;and the checking system help to output the defective goods.In case that the bag can not open,machine will automatic stop.In case the bag is fault and can not open,the bag will output automatically.
  6. packing speed: controlled by the frequency converter,easy adjustable.
  7. temperature system:adopt copper billet thermostabilized heating,AC control type to fit the bag’s corona,keep the false sealing out.
  8. adopt the single feeding channel,connect with the single packing machine easily.
