Automatic Toilet Paper Roll Cutting Machine 380V Jumbo Roll Paper Cutting Machine Including Loading System
Automatic Toilet Paper Roll Cutting Machine 380V Jumbo Roll Paper Cutting Machine Including Loading System
Automatic Toilet Paper Roll Cutting Machine 380V Jumbo Roll Paper Cutting Machine Including Loading System
Automatic Toilet Paper Roll Cutting Machine 380V Jumbo Roll Paper Cutting Machine Including Loading System
Automatic Toilet Paper Roll Cutting Machine 380V Jumbo Roll Paper Cutting Machine Including Loading System
Automatic Toilet Paper Roll Cutting Machine 380V Jumbo Roll Paper Cutting Machine Including Loading System
Specifications
Model Number :
ZG-PZ 3000
Working :
60 cuts/min
Payment Terms :
T/T
Voltage :
380V, 50HZ
Delivery Time :
30 working days
Machine Color :
Blue or white
Packaging Details :
wooden pallet
Place of Origin :
Foshan China
Cutting diameter :
150-300mm
MOQ :
1 set
Control :
Servo Motor
Supply Ability :
300
Gurantee :
One year
Brand Name :
ZhaoGuang
Name :
Toilet Paper Roll Cutting Machine
Description

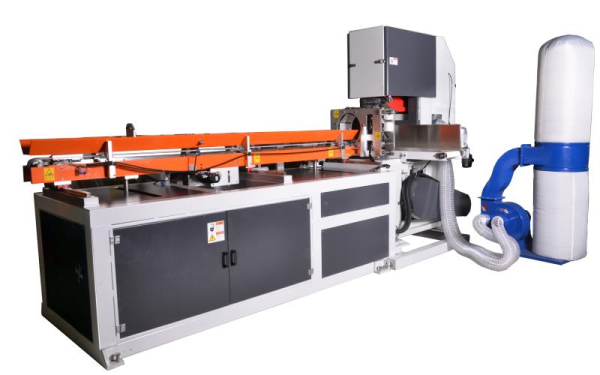

Fully Automatic JRT Band Saw Cutting Machine Including loading system , automatically cutting part

Machine features:
  1. Equipped with flexible clamping system, it can work with different cutting log diameters without replacing the clamper . Clamping log diameter can be set on touch panel directly.
  2. Cutting size: Φ180-280mm, width 90-300mm (other size to be specified)
  3. Cutting operation is fully automatic , increase the safety in production.
  4. Saw blade tension is controlled by hydraulic system . The compact rolls which carry hard paper cores are cut easily.

It is easy to operate this band saw by setting some simple cutting parameters on touch panel.

Tissue log transfer stand

Connecting the band saw with the rewinder. The tissue log will be transfer to the band saw cutting unit automtically.

Flexible clamping system

Cutting roll diameter from 200-300mm is adjustable. The clamping system is controlled by HMI.

Automatic grinding system

The saw blade grinding is automatic.

Product Parameters
Machine Model ZG-PZ 3000
Parent roll dimension: width ≤ 3000mm
Ø150-300 mm
Slitting length 90-300mm
Adjustable clamping system Ø150-300 mm, adjustable diameter range Ø150-300 mm
Slitting lane One lane
Running speed 40cuts/min
Feeding Method Servo motor drives the pushers
Cutting Method cut by saw blade
Trimming 20mm---50mm
Cutting Accuracy Length tolerance±1mm
Blade Grinding System Automatic blade grinding
