4 Color Printing Napkin Folding Machine ZGNF-400C Steel-to-Steel Embossing 380V 50HZ Dinner Napkin
4 Color Printing Napkin Folding Machine ZGNF-400C Steel-to-Steel Embossing 380V 50HZ Dinner Napkin
4 Color Printing Napkin Folding Machine ZGNF-400C Steel-to-Steel Embossing 380V 50HZ Dinner Napkin
4 Color Printing Napkin Folding Machine ZGNF-400C Steel-to-Steel Embossing 380V 50HZ Dinner Napkin
4 Color Printing Napkin Folding Machine ZGNF-400C Steel-to-Steel Embossing 380V 50HZ Dinner Napkin
4 Color Printing Napkin Folding Machine ZGNF-400C Steel-to-Steel Embossing 380V 50HZ Dinner Napkin
4 Color Printing Napkin Folding Machine ZGNF-400C Steel-to-Steel Embossing 380V 50HZ Dinner Napkin
4 Color Printing Napkin Folding Machine ZGNF-400C Steel-to-Steel Embossing 380V 50HZ Dinner Napkin
4 Color Printing Napkin Folding Machine ZGNF-400C Steel-to-Steel Embossing 380V 50HZ Dinner Napkin
4 Color Printing Napkin Folding Machine ZGNF-400C Steel-to-Steel Embossing 380V 50HZ Dinner Napkin
Specifications
Delivery Time :
30 working days
Color Printing :
4 Colors
MOQ :
1 Set
Folded Size :
Up to 200x200mm
Speed :
500-800 Pieces per Minute
Certification :
CE, ISO 9001:2015
Power :
4.5KW
Warranty :
1 Year
Embossing Unit :
Steel-to-Steel
Counting :
Automatic Electrical Counter
Voltage :
380V 50HZ
Price :
USD 12000-20000 / Set
Place of Origin :
Foshan, Guangdong, China
Supply Ability :
300 Sets per Month
Payment Terms :
T/T,L/C
Machine Weight :
About 1500KG
Packaging Details :
Export wooden case with plastic film protection
Max Jumbo Roll Width :
400mm
Brand Name :
ZhaoGuang
Folding Style :
1/4 Fold
Model Number :
ZGNF-400C
Description

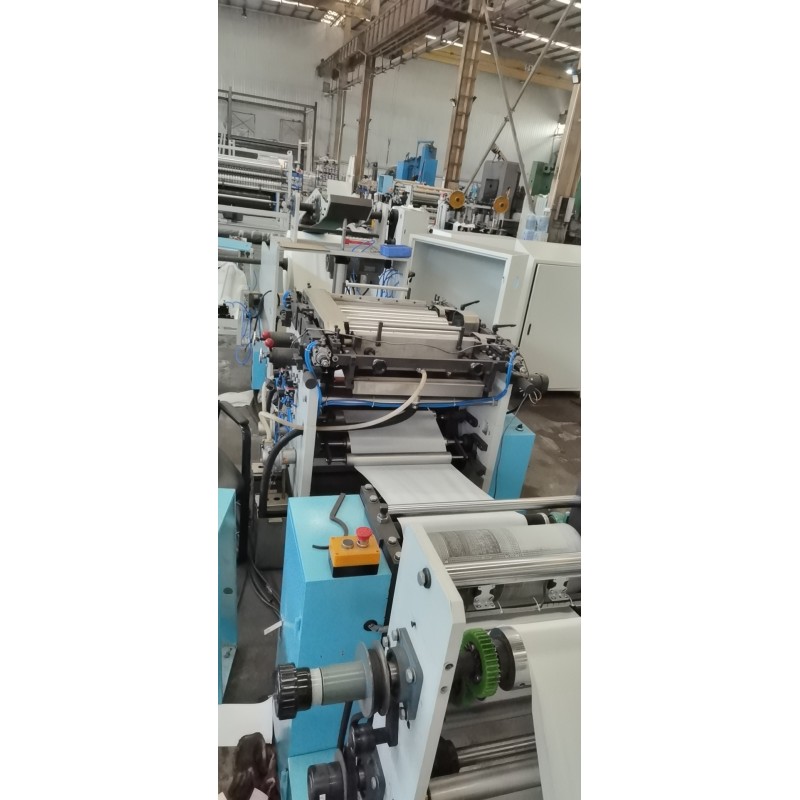

4 Color Printing Napkin Folding Machine ZGNF-400C

The ZGNF-400C automatic napkin paper machine integrates a 4-color printing unit and a steel-to-steel embossing unit, enabling manufacturers to produce premium dinner napkins with vivid patterns and deep, durable embossing in a single continuous process. It is an ideal solution for hotels, restaurants and catering suppliers that demand decorative branded napkins at medium to high output.

Key Features

  • 4-color printing unit prints up to 4 colors on the napkin web before folding for clear, sharp patterns
  • Steel-to-steel embossing unit creates deep, long-lasting embossed textures that improve softness and absorbency
  • Frequency converter speed control keeps folding stable from 500 to 800 pieces per minute
  • Automatic electrical counting with adjustable bundle count, automatic stop when paper runs out or blocks
  • Pneumatic backstand and easy roll loading reduce operator fatigue and changeover time
  • PLC-friendly electrical cabinet with overload protection for safe continuous operation

Technical Specifications

ModelZGNF-400C
Max Jumbo Roll Width400mm
Max Jumbo Roll Diameter1200mm
Jumbo Roll Core Inner Diameter76mm
Folded SizeUp to 200x200mm
Folding Style1/4 Fold
Color Printing4 Colors (0-4 colors optional)
Embossing UnitSteel-to-Steel (steel-to-paper optional)
Working Speed500-800 Pieces per Minute
CountingAutomatic Electrical Counter
Power4.5KW, 380V, 50HZ
Machine WeightAbout 1500KG

Applications

  • Decorative dinner napkins with 1-4 color logo or pattern printing
  • Hotel and restaurant branded napkin production
  • Catering supply and party supply napkin manufacturing

What napkin sizes can ZGNF-400C produce?
It folds napkins up to 200x200mm from jumbo rolls up to 400mm wide; folded size can be adjusted on the machine.

Is steel-to-steel embossing suitable for thin paper?
Yes, the embossing pressure is adjustable. Steel-to-paper or steel-to-rubber units can also be fitted for lighter tissue grades.

Contact us today for the latest factory price and delivery schedule.
