12 M Low Floor Electric City Bus with 350.07 kwh Battery Capacity and 94/22-46 Seats for Urban Public Transport
12 M Low Floor Electric City Bus with 350.07 kwh Battery Capacity and 94/22-46 Seats for Urban Public Transport
12 M Low Floor Electric City Bus with 350.07 kwh Battery Capacity and 94/22-46 Seats for Urban Public Transport
12 M Low Floor Electric City Bus with 350.07 kwh Battery Capacity and 94/22-46 Seats for Urban Public Transport
12 M Low Floor Electric City Bus with 350.07 kwh Battery Capacity and 94/22-46 Seats for Urban Public Transport
12 M Low Floor Electric City Bus with 350.07 kwh Battery Capacity and 94/22-46 Seats for Urban Public Transport
Specifications
Brand Name :
ZEVAUTO
Model Number :
CDL6121URBEV
Certification :
ISO
Place of Origin :
Chengdu, China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
25000 units/per year
Delivery Time :
25 working days
Packaging Details :
Nude packing
Product name :
Electric Passenger Bus
Function :
Urban Public Transport
Passenger capacity :
94/22-46 seats
Vehicle size (mm) :
12000*2550*3225
Wheel base (mm) :
6200
Front/Rear overhang :
2700/3100
Front/Rear tread :
2119/1887
Approach/Departure(º) :
8/8
Transmission Type :
Automatic
Steering Position :
LHD
Top speed (km/h) :
69km/h
Curb weight (kg) :
11800
Battery capacity :
350.07 kwh
Description
Eco-Friendly 12 M Low Floor Electric Passenger Bus with 350.07 kWh Battery Capacity
Revolutionizing urban public transport with advanced electric mobility solutions.
Product Overview

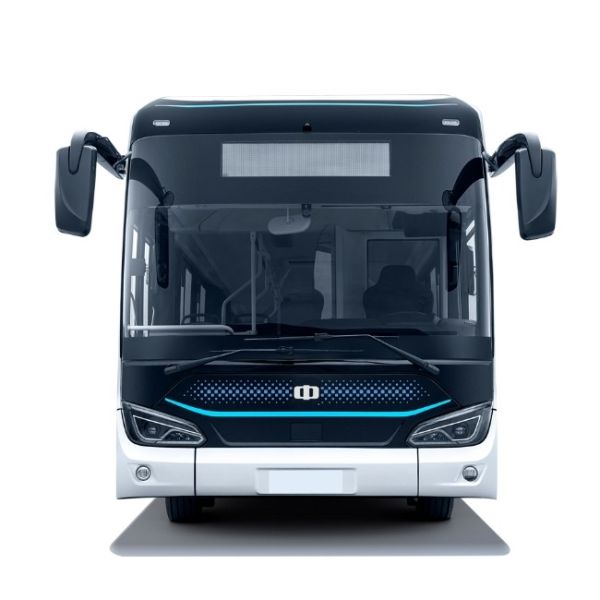

12 m low floor electric passenger bus designed to transform urban public transportation. The vehicle features a large curved design creating a strong, powerful front face with dynamic V-shaped lines. Matched with industry-leading wheel side electric drive axle system and adopting a low-floor, three-door structure design, it offers full aisles and spacious interiors.
Technical Specifications
ModelCDL6121URBEV
Vehicle Dimension (mm)12000 * 2550 * 3225
Maximum Speed (km/h)69
Number of Seats22-46 seats (varies with seat layout and door arrangement)
Power Battery BrandCATL, CALB
SteeringLHD/RHD
Battery Capacity350 kWh, LiFePO4
TransmissionAuto transmission
SuspensionLeaf Spring
Wheel Base (mm)6200
ACWith
Body StructureMonocoque
Floor StructureFull low floor
Mileage (A/C on, 65% loaded)280-650 km (varies with temperature, road conditions, slope, and driving behavior)
Interior Design & Features
Comfortable, Intelligent, and Safe Driving Environment
12m electric city bus with modern design where every detail is meticulously considered, combining ergonomics and comfort. Features include nail-free design throughout the vehicle, aesthetic ceiling with ambient lighting, streamlined hand holders, hidden screw design, handrails attached to sidewalls instead of the floor, all contributing to a pleasant and quiet journey.
12 M Low Floor Electric City Bus with 350.07 kwh Battery Capacity and 94/22-46 Seats for Urban Public Transport
Key Advantages
  • Zero emission city bus for environmental sustainability
  • Powerful performance with high-power drive motor and 15% gradeability
  • Dependable and long-lasting vehicle construction
  • Safe and comfortable driving experience
  • User-friendly maintenance for reduced downtime
  • Integrated control system for ease of driving
  • Human-centered design with high operational stability and excellent performance
  • Reasonable internal layout to extend passenger standing area
  • Concise suspended hanging design of LED lighting
  • Openable front bumper for easy maintenance access
  • Delicate and neat wiring harness layout
Customization Options
  • Electric City Bus length: 12m optional
  • Customizable interior designs
  • Optional cushioned passenger seats to meet different customer needs
  • Selection of passenger seats and curtains according to customer requirements
  • Solid painting design with optional colors
Manufacturer Information
Headquartered in Chengdu city, Sichuan province, China, ZEV is a group company specializing in the development, production, sales, and market application of buses and coaches. Since its foundation in 2006, ZEV's culture of continuous innovation has established it as a leading manufacturer in China.
ZEV operates 2 production plants with an annual production capacity reaching 25,000 units. The company has developed a comprehensive 5m-18m product lineup of battery electric buses and coaches, covering various segment markets. In 2022, ZEV was awarded 825 units of 12m full electric city bus bidding for Chengdu Transport Cooperation, with 400 units serving during the 31st FISU World University Games.
