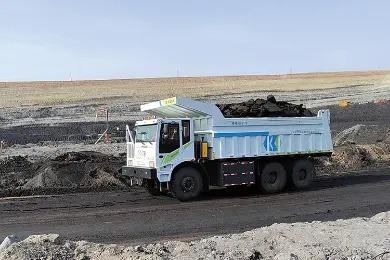

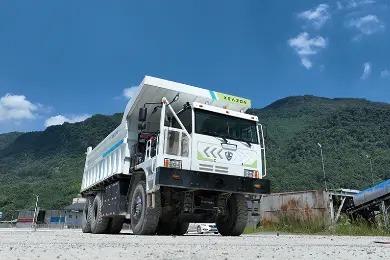

95 Ton Electric Mining Truck 528kWh Zero Emission
95 Ton Electric Mining Truck 528kWh Zero Emission
95 Ton Electric Mining Truck 528kWh Zero Emission
95 Ton Electric Mining Truck 528kWh Zero Emission
95 Ton Electric Mining Truck 528kWh Zero Emission
95 Ton Electric Mining Truck 528kWh Zero Emission
Specifications
Brand Name :
ZEVAUTO
Model Number :
XZ110EV
Certification :
ISO, CE
Place of Origin :
Chengdu,China
MOQ :
1
Payment Terms :
T/T,L/C
Supply Ability :
25000 units/per year
Delivery Time :
25-40 working days
Packaging Details :
Nude packing
Product name :
Electric Mining Truck
Type :
Zero Emission
Fule type :
Electric
Dimensions(mm) :
9950*3750*4200
Wheelbase(mm) :
4500+1750mm
Transmission :
FAST 4-speed AMT mining truck transmission. Geaer:6.508-1.000
Max speed :
40km/h
Suspension :
Front oleo-pneumatic spring suspension + Rear leaf spring + Reinforced balanced suspension
Steering :
Full hydraulic steering + emergency steering
Drive motor :
Disc hub dual-motor/Lego (optional)
Suspension system :
Front hydro-pneumatic spring suspension/rear leaf spring balance suspension
Brake system :
Electric brake + drum brake, eddy current retarder (optional)
Motor rated/peak power (kW) :
Disk hub: 495/800; Lego: 500/800
Tire :
16.00R25 three-star rating (Techking). Other brands of tires are available.
Container volume (m³) :
42 (flat loading)/45 (stowage loading)
Description
Description

Safety mining truck 95 ton 528kwh with long drive range.

Product Parameter
Model XZ95EV
Appearance parameters
Vehicle dimension (mm): 9400*3750*4000 Maximum speed(km/h) 40
Minimum ground clearance: 400mm Power battery brand CATL
Steering LHD Battery Capacity 528kwh, LiFePo4
Driver cab Auto transmission Transmission FAST 4-speed AMT mining truck transmission
Wheel base(mm) 4500+1750mm AC Integrated heating and cooling air conditioning
Cooling Radiator/electronic fan Tyre 16.00R25 ET688 E3pattern
Power motor dual motor900K:495kW/2000rpm/2380Nm
95 Ton Electric Mining Truck 528kWh Zero Emission
Advantages
  • Zero emission environmentally friendly.
  • 60-70% lower energy costs : Electricity is cheaper than diesel fuel per ton hauled
  • Reduced maintenance :
  • Lower center of gravity : Battery placement improves stability on slopes.
  • Meets EPA Tier 5/EU Stage V emissions standards effortlessly.
  • Safe and reliable
  • Strong power
  • High operation efficiency
  • Comfort driving
Customization
  • Electric mining truck
Company Info

Headquarted in Chengdu city, Sichuan province, China, ZEV is a group company specializing in the development, production, sales and market application of buses and coaches. From it's foundation in 2006, ZEV's culture of continuois innovation has made it a leading manufacturer in China. Depending on the research platforms including the enterprise technology center, test center.

ZEV has 2 plants, annual production capacity reach 25000units. ZEV has formed a 5m-18m product lineup of battery electric buses and coaches, covering various segment markets. In 2022, ZEV was rewarded 825 units 12m full electric city bus bidding of Chengdu Transport Cooperation, among which 400units were in service during the 31st FUSU World University Games.
