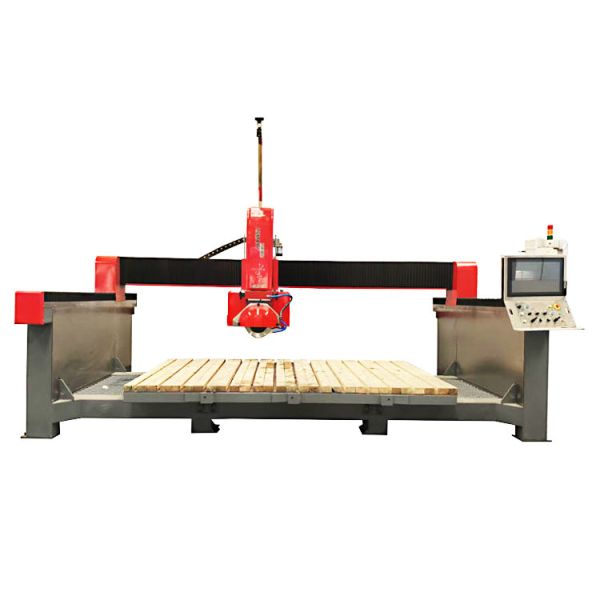

ZEUS 5 Axis 15kw Granite Stone Cutting Machine 220V/380V CNC Bridge Machine 5+2 Axis
ZEUS 5 Axis 15kw Granite Stone Cutting Machine 220V/380V CNC Bridge Machine 5+2 Axis
ZEUS 5 Axis 15kw Granite Stone Cutting Machine 220V/380V CNC Bridge Machine 5+2 Axis
ZEUS 5 Axis 15kw Granite Stone Cutting Machine 220V/380V CNC Bridge Machine 5+2 Axis
ZEUS 5 Axis 15kw Granite Stone Cutting Machine 220V/380V CNC Bridge Machine 5+2 Axis
ZEUS 5 Axis 15kw Granite Stone Cutting Machine 220V/380V CNC Bridge Machine 5+2 Axis
ZEUS 5 Axis 15kw Granite Stone Cutting Machine 220V/380V CNC Bridge Machine 5+2 Axis
ZEUS 5 Axis 15kw Granite Stone Cutting Machine 220V/380V CNC Bridge Machine 5+2 Axis
ZEUS 5 Axis 15kw Granite Stone Cutting Machine 220V/380V CNC Bridge Machine 5+2 Axis
ZEUS 5 Axis 15kw Granite Stone Cutting Machine 220V/380V CNC Bridge Machine 5+2 Axis
Specifications
Color :
Black, White, Blue, Yellow, Customizable
Max Cutting Length :
Customizable, 3200mm
Type :
Stone Cutting Machine
Use :
Granite
Place of Origin :
SHANDONG,CHINA
Brand Name :
ZSMART
Voltage :
380 V, 220 V
Power(W) :
15kw+7.5kw+750w
Dimension(L*W*H) :
5500*3200*3700
Weight :
3400 kg(7495.72lb)
Warranty :
1 Year
Key Selling Points :
Long Service Life
Cutting thickness (max) :
150mm(5.91in)
Machinery Test Report :
Not Available
Video outgoing-inspection :
Provided
Core Components :
Hechuan servo motor
MOQ :
1
Price :
$22,000-23,000 / set
Certification :
CE
Packaging Details :
OTHERS
Delivery Time :
30DAYS
Payment Terms :
T/T
Supply Ability :
1000 SETS ONE YEAR
Description

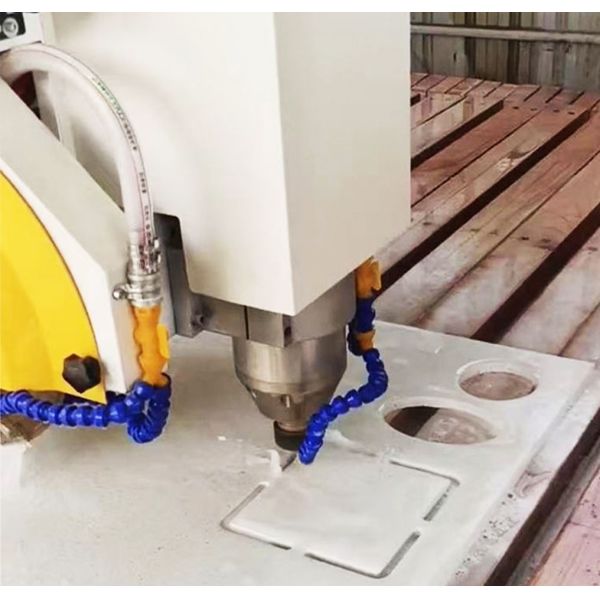

The bridge cutting machine is a new generation of multifunctional machining machinery that adopts graphic operation and advanced technology. The synchronous CNC control system makes machine operation simple and free, without the need for complex CNC knowledge.This machine can be used to achieve advanced functions such as horizontal and vertical cutting,irregular cutting, contour cutting, drilling, 360 degree free rotation of the machine head,90 degree chamfering, and 85 degree desktop lifting. You can choose to add one high-definition camera or one vacuum suction cups, and can be used in large stone processing plants and countertop workshops.

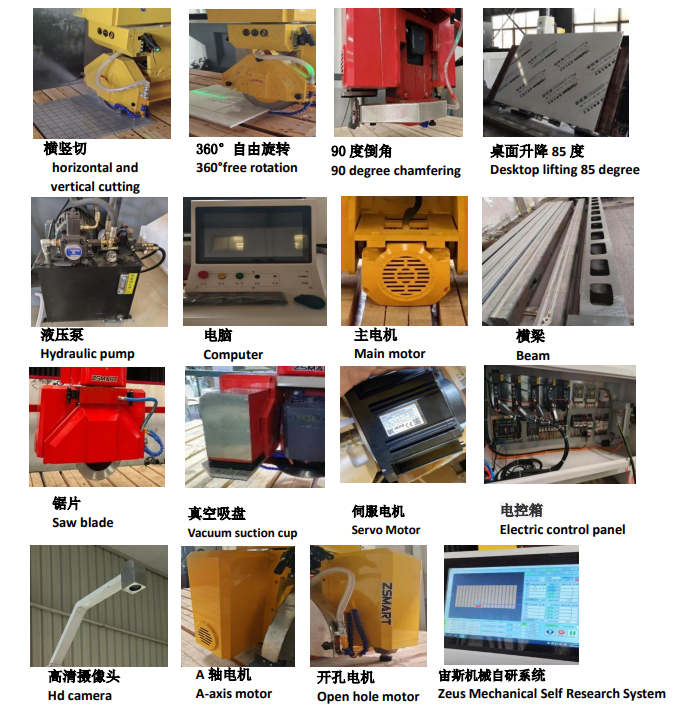

Characteristic:
  • Independently developed operating system, fully CNC operation, graphic layout.
  • Integrated workbench for easy loading and unloading of boards.
  • The automatic pressure plate firmly fixes the board.
  • The lifting function makes the board easy to move.
  • The frame is sturdy and durable, without deformation.
  • Suction cup vacuum moving system is more convenient.
  • High definition camera function makes observation more convenient.
  • Can be installed together with saw blades, drill bits, and drilling machines.
  • High speed precision host.
  • Supports 0-85 degree flipping, 0-90 degree chamfering, 360 degree free rotationof themachinehead, horizontal and vertical cutting, irregular cutting, contour cutting, and drilling functions.
  • Independent milling spindle
