1000V 500A Electrical Test Equipment For Laboratory
1000V 500A Electrical Test Equipment For Laboratory
1000V 500A Electrical Test Equipment For Laboratory
1000V 500A Electrical Test Equipment For Laboratory
Specifications
Brand Name :
GFUVE
Model Number :
GF6019 0.05%
Certification :
CNAS CE ISO9001
Place of Origin :
BEIJING CHINA
MOQ :
1set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200sets/month
Delivery Time :
10days
Packaging Details :
standard export wooden box
PRODUCT NAME :
Portable DC voltage source and current source
APPLICATION :
Testing DC meter
Current range :
0-500a
Voltage range :
0-1000v
accuracy :
0.05%, 0.02%
Function :
testing of DC power meter, ammeter, voltmeter
Stability :
0.01%/1min
Usage :
laboratory
Description

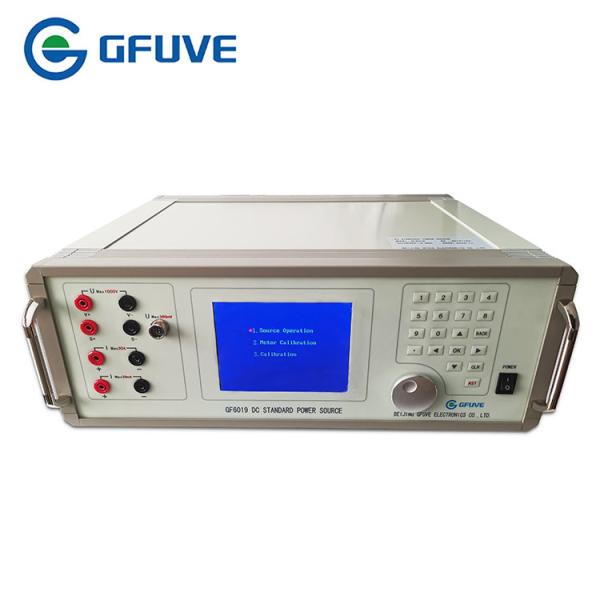

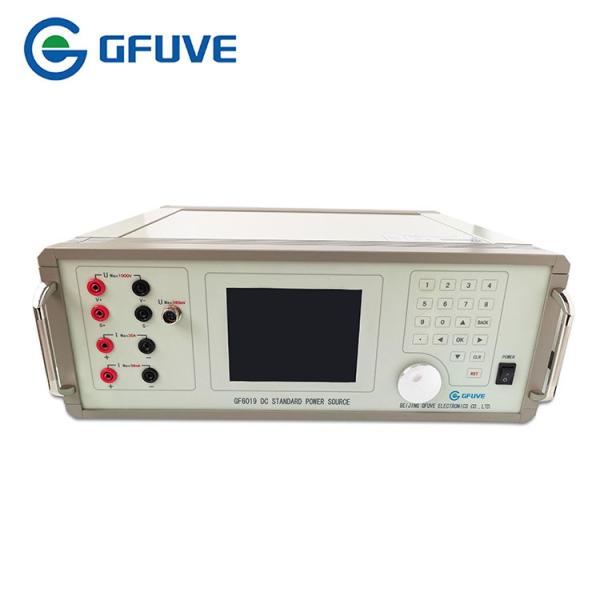

GF6019 1000V 500A Portable DC voltage source and current source of testing DC meter with electric power calibrator

The GF6019 is a precision DC current source suitable for calibration and test applications from micro-amp levels up to 100mA. Three output ranges are available; 0 to 500A, 0 to 99.99mA in 10μA steps, 0 to 9.999mA in 1μA steps, and 0 to 999.9μA in 0.1μA steps. Output voltage is adjustable between 0 and 1000 volts, with a maximum output power of 500k watts.
A voltage source is a device which provides a constant voltage to load at any instance of time and is independent of the current drawn from it. This type of source is known as an ideal voltage source. Practically, the ideal voltage source cannot be made. It has zero internal resistance. It is denoted by this symbol. The graph represents the change in voltage of the voltage source with respect to time. It is constant at any instance of time.

FEATURES AND FUNCTIONS

  • Accuracy class 0.05
  • 0-600A/0-1150V
  • Start testing and creep testing
  • DC power source integrated
  • Test by automatic or manual
  • 8 inch TFT touch screen
  • Recorder 10000 sets energy meter data
  • Overload, short circuit, open circuit protection
  • Testing all kinds of DC energy meter, DC power meter
  • Testing all kinds of DC ammeter, DC voltmeter
  • DC current source and DC voltage source
  • User friendly menu guided operation
  • Especially configured USB stick for storage of customer data
  • Easy verification and analysis of DC meter
  • Automatic operation without need of an external PC

PARAMETERS

Electrical parameters　
Accuracy 0.05%
Power Supply One Phase AC 180-265V, frequency 50/60Hz.
DC Voltage Output
Range 65V, 250V, 500V, 750V, 1000V (max 1150V)
Adjustment range (0-120)%RG(1)
Adjustment fineness 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability 0.01%/120s
Distortion 0.1% (Non-capacitive load)
Output load 50VA
Full load regulation rate ≤±0.01%RG
Accuracy ±(0.03%RD+0.02%RG)
DC Current Output
Range 0.001A, 0.005A, 0.02A, 0.05A, 0.2A, 1A, 3A, 10A, 20A, 50A, 100A, 500A (max 600A)
small signal 2.5mV, 20mV, 100mV, 1V, 5V
Adjustment range (0-120)%RG
Adjustment fineness 0.01%RG, 0.1%RG, 1%RG, 10%RG as optional.
Stability <0.01%/120s, small signal 2uV/min
Distortion ≤0.1% (Non-capacitive load)
Output load 1200VA
Full load regulation rate ≤±0.01%RG
Accuracy ±(0.03%RD+0.02%RG)
Externally attached shunt 100mV
Accuracy ±(0.06%RD+0.04%RG)
DC Power Output
power output stability <0.01%RG/120s
power accuracy ±(0.03%RD+0.02%RG)
DC Power Energy Measurement Error
power energy ±(0.03%RD+0.02%RG)
Power Pulse Output
Power Pulse Output 20KHz (Full-Range)
Power Pulse Input
Energy pulse input 20KHz
Ripple output 20-500Hz ripple output
Communication port USB port, RS232, 10/100M LAN
Mechanical parameters　
Dimensions (W×D×H) (mm) 630x600x450
Weight (kg) 20,55
Environmental conditions　
Ambient temperature -10°C to +40°C
Relative humidity -30°C to 60°C
(1) RG means range, the same as below;
(2) RD means the setted harmonic content, harmonic can be a single output, also multiple output.
