Microcomputor Single Phase Protective Relay Tester / Testing Equipment Robust Shape
Microcomputor Single Phase Protective Relay Tester / Testing Equipment Robust Shape
Microcomputor Single Phase Protective Relay Tester / Testing Equipment Robust Shape
Microcomputor Single Phase Protective Relay Tester / Testing Equipment Robust Shape
Specifications
Brand Name :
GFUVE
Model Number :
TEST-750
Certification :
ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
200 Sets
Delivery Time :
3 - 7 Days
Packaging Details :
Standard Export Wooden Box
Max current :
1A
Max voltage :
AC250V or DC120V
Auxiliary AC voltage output Range :
0-120V
Resistor Resistance :
0.5Ω-2.5kΩ
Dimensions (W×D×H) (mm) :
340×270×260
Weight :
18kg
Description

Single Phase Microcomputor Protection Relay Test Set

TEST-750 single-phase relay test set high performance, portable to test in the field; it adopts aluminum alloy body with PC panel, robust shape; with the ARM chip control, LCD screen display single-phase protective relay test device of voltage and current output stopwatch;a full isolation, adjustable AC and DC voltage, AC direct current; an adjustable DC voltage and an adjustable AC voltage; output circuit with double overload protection, high output capacity, small size, light weight, high reliability. The equipment is suitable for a variety of relay field calibration and performance test.

Parameters

Electrical parameters
Rated input power
AC 220V±10% 1000VA·50/60Hz or
110V±10% 1000VA·50/60Hz
Turn on/turn off auxiliary contacts
Max current 1A
Max voltage AC250V or DC120V
AC output
Range 0-10A 0-40A 0-100A 0-100A
No-load Voltage(Min) 90V 25V 10V 10V
Full-load Voltage (Min) 80V 22V 8V 　
Full-load Current (Max) 10A 40A 100A 150A
AC/DC voltage output
Range 0-250V(AC) 0-300V(DC)
No-load Voltage(Min) 250V 320V
Full-load Voltage (Min) 240V 250V
Full-load Current (Max) 3A 3A
Auxiliary DC voltage output
Range 5-120V 110-220V
Max Voltage 120V 220V
Max Current 0.5A 0.5A
Auxiliary AC voltage output
Range 0-120V
Max voltage 120V
Max current 0.5A
Stopwatch
Range 0.0000-999999S
Resolution 0.1mS
Accuracy ±5 words
Max input voltage
(With contact and potential input)		 DC 250V
Ammeter
Range Inside 0.000-150.0A
Outside 0.000-6.000A(AC or DC)
Accuracy 0.50%
Voltmeter
Range 0.0-600.0V(AC or DC)
Accuracy 0.50%
Measuring mode AC True RMS
DC Average value
Resistor
Resistance 0.5Ω-2.5kΩ
Mechanical characteristics
Dimensions (W×D×H) (mm) 340×270×260
Weight 18kg
Mechanical parameters
Temperature -10°C to 40°C
Relative humidity <80%

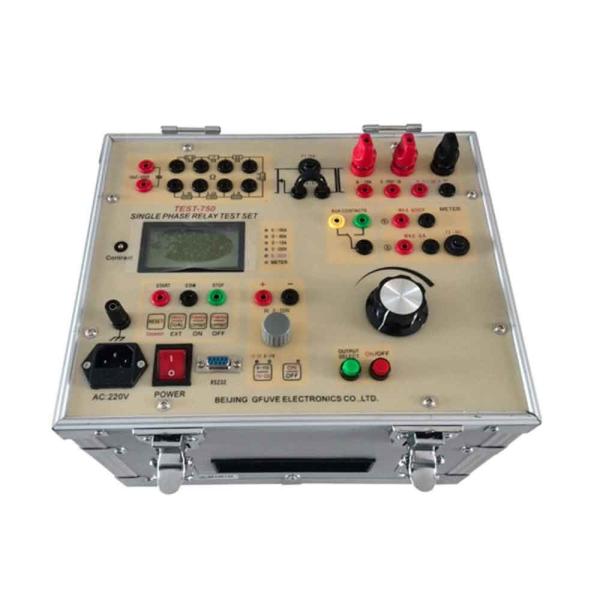

The Product Picture:

Microcomputor Single Phase Protective Relay Tester / Testing Equipment Robust Shape
