Specifications
Brand Name :
ZEROONE-Control
Model Number :
EC86
Certification :
CE ROHS
Place of Origin :
Shenzhen,China
MOQ :
1
Price :
$33/pcs
Payment Terms :
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability :
1000pcs/day
Delivery Time :
2-10 days
Packaging Details :
1pcs/box, 50 boxes/ carton
Description
1. Introduction
1.1 Overview

The EC86 is our company's latest EtherCAT bus-type closed-loop stepper driver, featuring 32-bit DSP digital processing technology. Its control algorithm employs advanced AC and frequency conversion technologies, delivering low heat generation, minimal motor vibration, and smooth operation. Users can set any current value within the rated range, meeting the needs of most applications. The driver integrates an automatic parameter calibration function upon power-on, automatically generating optimal operating parameters for different motors to maximize their performance.

1.2 Characteristic:
  • 32-bit DSP technology
  • Ultra low vibration and noise
  • Automatic parameter adjustment upon power-on
  • The current control greatly reduces the motor heating
  • Can drive 4, 6, or 8-wire two-phase stepper motors
  • Optical isolation differential signal input/output
  • Convenient current setting, can be selected between 0.1-5.6A
  • Protection functions such as over voltage, under voltage and over current

EC86 EtherCAT Stepper Driver with 32-bit DSP Technology for Ultra Low Vibration and Automatic Parameter Adjustment

EC86 EtherCAT Stepper Driver with 32-bit DSP Technology for Ultra Low Vibration and Automatic Parameter Adjustment

EC86 EtherCAT Stepper Driver with 32-bit DSP Technology for Ultra Low Vibration and Automatic Parameter Adjustment

EC86 EtherCAT Stepper Driver with 32-bit DSP Technology for Ultra Low Vibration and Automatic Parameter Adjustment

Application areas:

This solution is compatible with various Ethercat communication protocols for small and medium-sized automation equipment and instruments, including engraving machines, marking machines, cutting machines, laser typesetters, plotters, CNC machine tools, and automatic assembly equipment. It delivers exceptional performance in applications requiring low noise and high-speed operation.

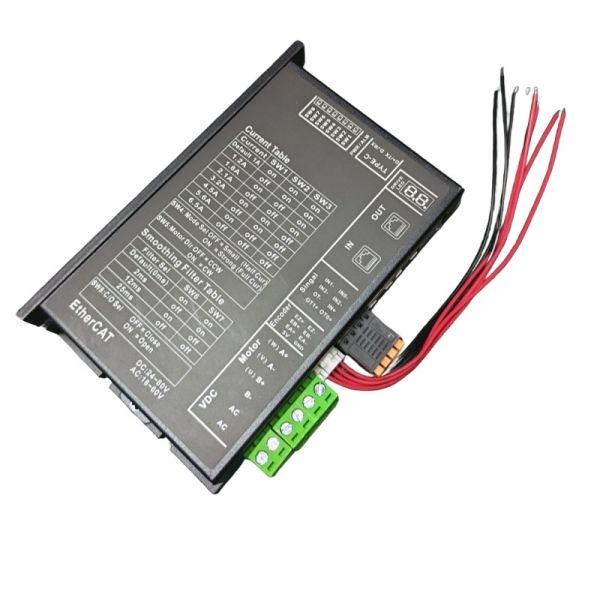

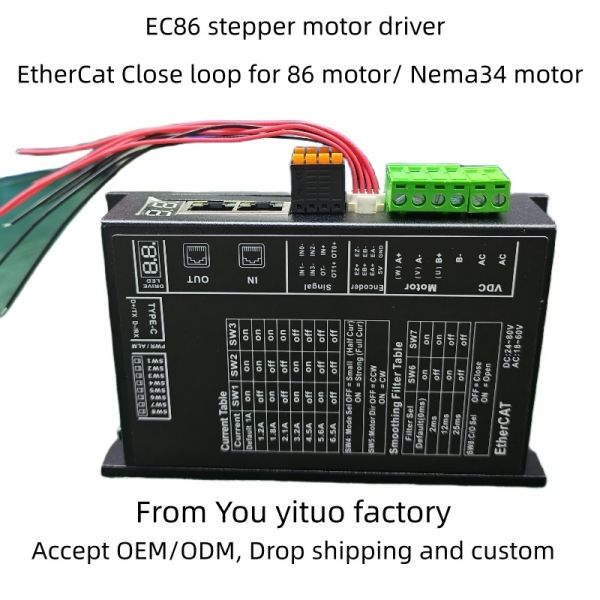

2. Dial switch definition
SW1~SW3
Peak current SW1 SW2 SW3
1.0A ON ON ON
1.2A OFF ON ON
1.8A ON OFF ON
2.1A OFF OFF ON
3.2A ON ON OFF
4.5A OFF ON OFF
5.6A ON OFF OFF
6.5A OFF OFF OFF
SW4: Mode Selection
ON OFF
Strong Small
SW5: Direction Selection
ON OFF
Forward Reversal
SW6: Open-loop/Closed loop selection
SW6~SW7 Smoothing filter
filter time SW6 SW7
0ms ON ON
2ms OFF ON
