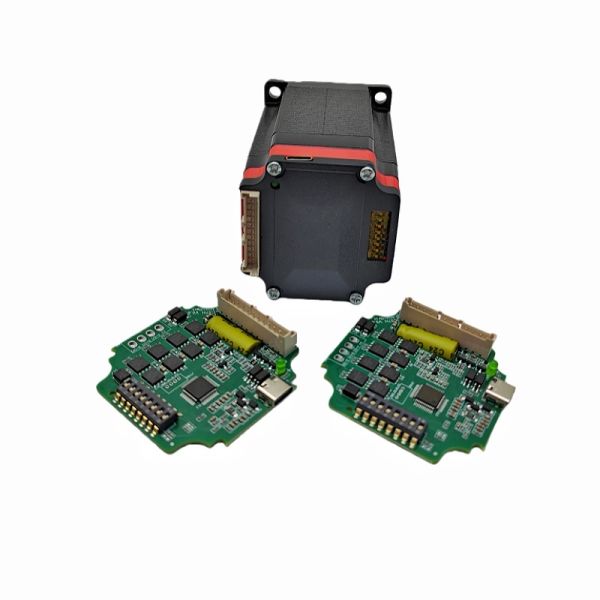

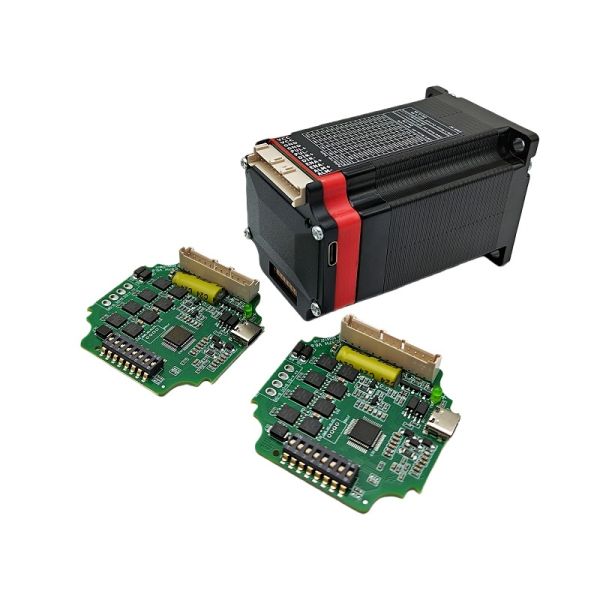

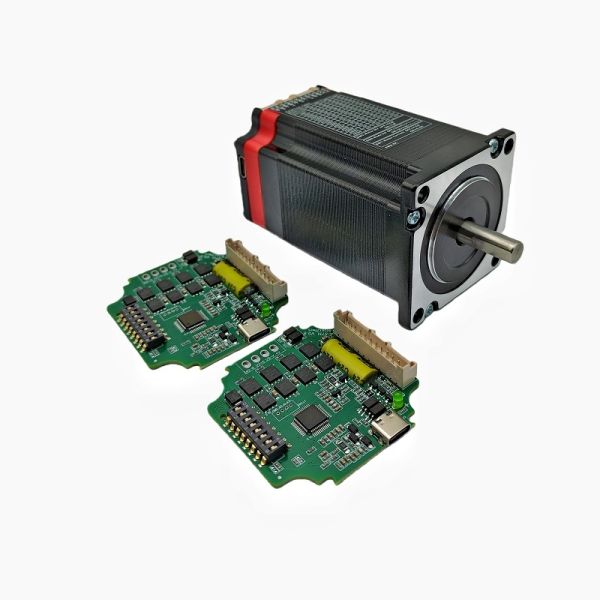

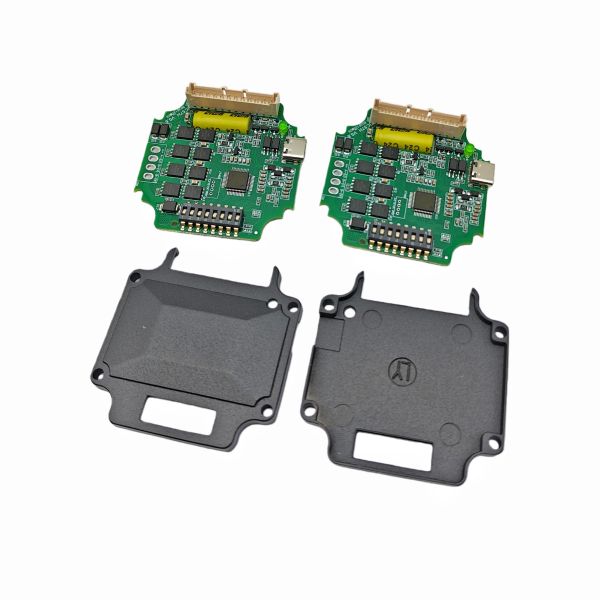

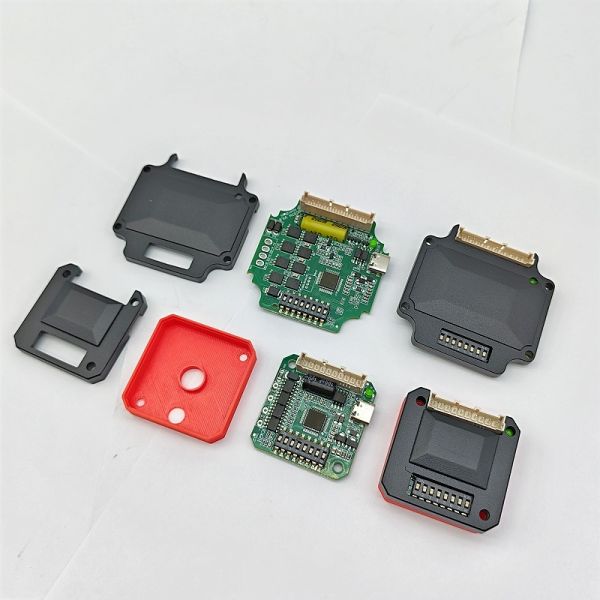

IC57 Driver + 57-76mm Closed-Loop Motor System

1. Product Overview

This integrated closed-loop motion control system combines the IC57 High-Precision Stepper Driver with a 57-76mm NEMA 23 Closed-Loop Stepper Motor. It delivers exceptional positioning accuracy, minimal torque attenuation at medium-high speeds, and low vibration operation, ideal for precision industrial automation equipment.



2. Key Specifications

2.1 IC57 Driver

Parameter Value Range Recommended Setting
Input Voltage 20–48 VDC 24/36 VDC
Continuous Output Current ≤ 5 A 3–4 A (motor-matched)
Peak Output Current 13 A (short-duration) -
Control Mode Pulse/Direction (PUL/DIR) -
Max Pulse Frequency 500 kHz -
Max Microstepping 51200 steps/rev User-adjustable via software
Protection Functions Overvoltage/Undervoltage/Overcurrent/Position Error Active during operation
Core Algorithm Torque Closed-Loop + Vibration Suppression Optimized for high-frequency start-stop

2.2 57-76mm Closed-Loop Stepper Motor (NEMA 23)

Parameter Value
Step Angle 1.8° (200 steps/rev, unmicrostepped)
Phase Configuration 2-Phase
Holding Torque 1.3–1.6 Nm
Rated Current 3–4 A/phase
Encoder Resolution 1000 PPR (4000 counts/rev with 4x decoding)
Shaft Diameter Options 6.35 mm / 8 mm
Rotor Inertia 440 g·cm²
Motor Weight 1.05 kg
Motor Body Length 76 mm



3. System Advantages

1. Zero Step Loss:Real-time encoder feedback enables closed-loop position correction, eliminating step loss even under variable load conditions.
2. High-Speed Performance:Minimal torque attenuation at medium-high speeds, outperforming standard open-loop stepper systems.
3. Low Heat & Vibration:Load-adaptive current regulation reduces motor and driver temperature rise; vibration suppression algorithm minimizes operational noise.
4. Easy Integration:Compact footprint and simplified wiring support space-constrained installation scenarios.



4. Typical Applications

- Laser engraving & cutting machines
- Pick-and-place equipment
- 3D printers
- Small robotic joints
- Precision conveyor systems



5. Wiring & Commissioning Guidelines

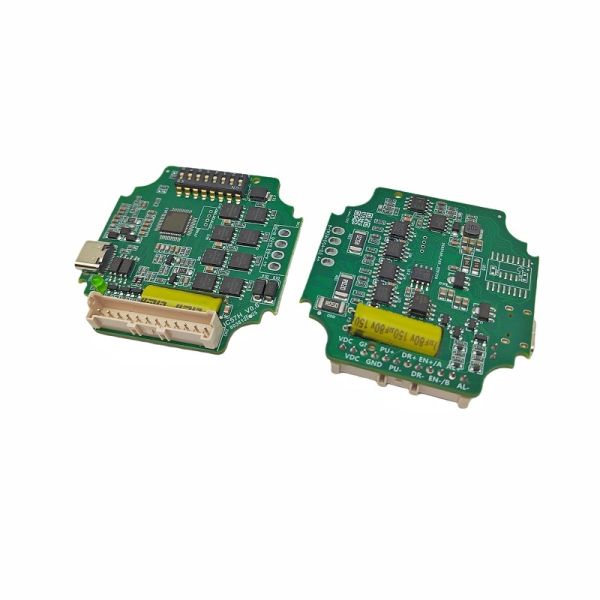

5.1 Pinout Definition

Terminal Type Pin Label Function Description
Power Input V+ / V- DC power supply positive/negative
Control Signal PUL+/PUL- Pulse input (differential signal)
Control Signal DIR+/DIR- Direction input (differential signal)
Encoder Feedback A+/A-; B+/B-; Z+/Z- Encoder phase A/B/Z differential signals
Motor Output U1/U2; V1/V2 Motor phase winding connections

5.2 Wiring Precautions

- Route encoder cables separately from power cables to avoid electromagnetic interference.
- Use shielded cables for control and encoder signals; ground the shield at one end only.
- Confirm voltage and polarity before powering on to prevent component damage.

5.3 Commissioning Steps

1. Wiring Check:Verify all connections match the pinout definition; ensure no short circuits.
2. Parameter Configuration:Use the host computer software to set microstepping and output current (≤ motor rated current).
3. No-Load Test:Power on, verify rotation direction and speed stability; optimize acceleration/deceleration curves.
4. Load Test:Apply load gradually, monitor temperature rise and vibration levels; adjust parameters as needed.
5. Alarm Troubleshooting:If an alarm occurs, power off immediately, check wiring and parameter settings before restarting.



6. Selection & Matching Notes

1. Ensure motor rated current ≤ driver continuous output current for long-term stable operation.
2. Select a power supply with output power ≥ 1.5 × motor rated power to accommodate peak load demands.
3. Match the driver’s pulse frequency range to the equipment’s required operating speed.



Disclaimer:Specifications subject to change without prior notice. For application-specific technical support, contact ZeroOne-Control technical team.
