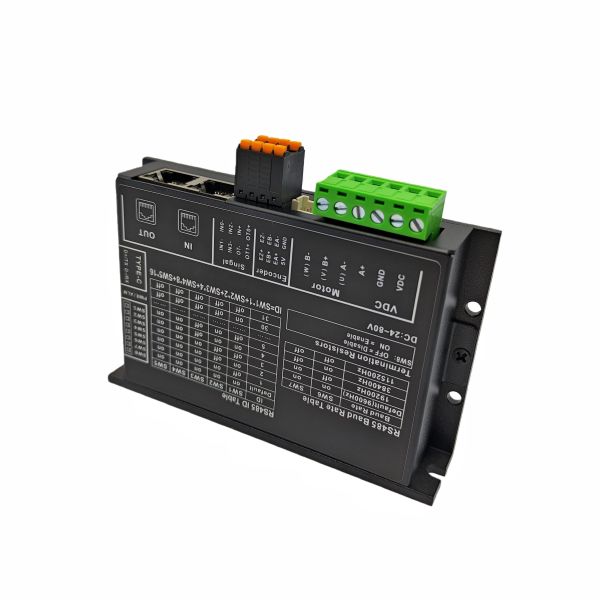

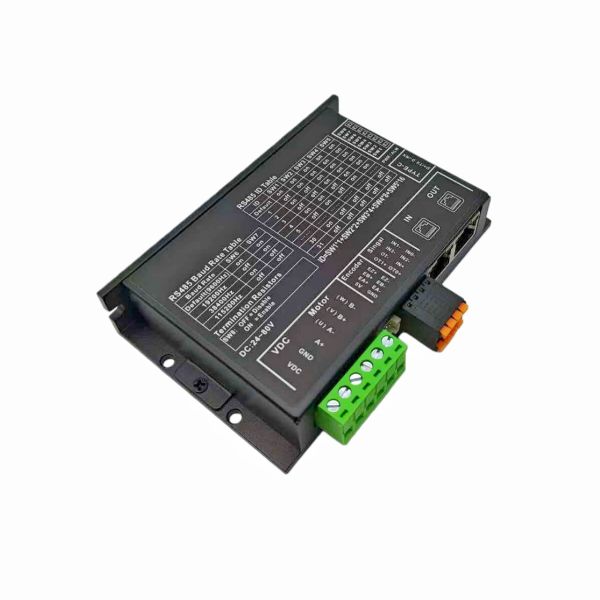

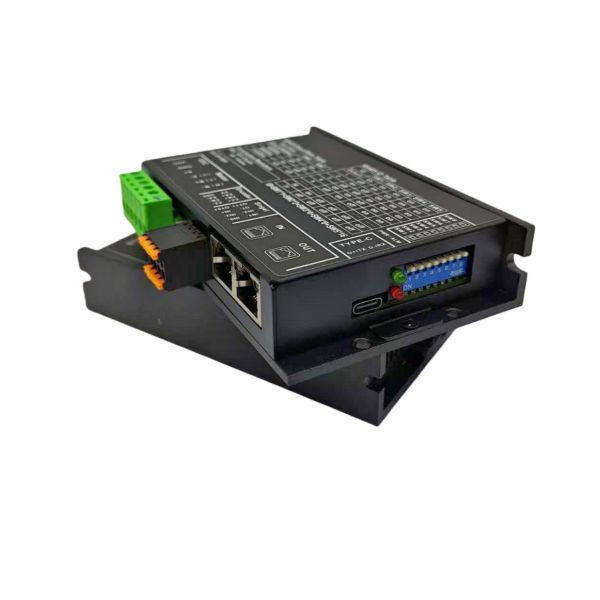

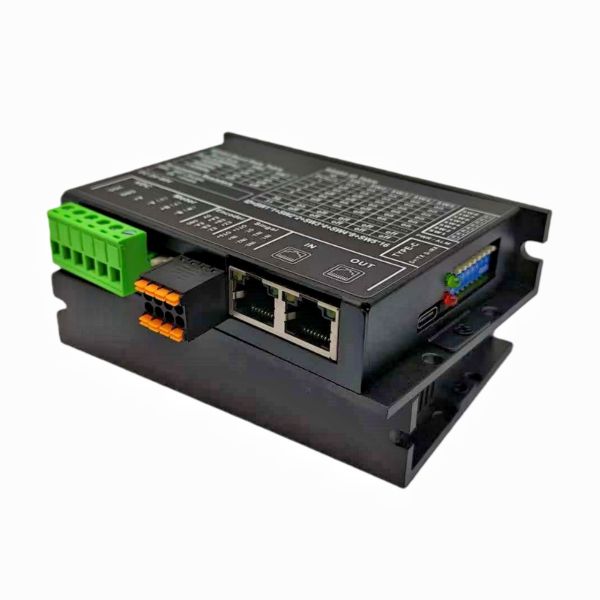

RC60 Bus-type ModBus Communication RS485 Closed Loop Stepper Motor Driver For 60 Flange Nema24 Stepper Motor

Specifications

Brand Name :

Zeroone- control

Model Number :

RC60

Certification :

CE,ROHS,ISO9001

Place of Origin :

Shenzhen, China

MOQ :

1pcs

Price :

$28/pcs

Payment Terms :

L/C,D/P,D/A,T/T,Western Union,MoneyGram

Supply Ability :

1000pcs/day

Delivery Time :

2-7 days

Packaging Details :

1pcs/box, 50boxes/carton

Motor type :

Stepper Motor,DC Motor,Hybrid

Weight :

0.3kg

Name :

RC60 stepper motor driver,5.6A 60mm 32DSP Digital Stepping Motor Driver,RS485 Closed Loop Stepper motor dirver

Application :

57 stepper motor,contor board,Nema23/24 two phase stepper motors,all kinds of CNC machine

Voltage :

DC 24V to 80V

Color :

Black

Control mode :

Modbus remote,manual input,RS485,DIR/Pulse + CW/CCW

Input voltage :

110-220V

Voltage range :

20-80vdc

Current :

1.4A to 5.6A/ Phase 8 gears adjustable

Matching motor :

Nema 23 34 Motor,57 Motors,NEMA23,60mm Step Motor

Matched motor :

Nema23 Nema34,nema 24

Advantage :

Speed stability and Control convenient,no need computer or pulse generator to drive stepper motor

Currenting setting :

16 channel

Upmost microstep :

60000ppr

Description

Bus-type ModBus Communication RS485 Closed Loop Two Phase Stepper Motor Drivers for 60 flange Nema23 Nema24 Stepper Motor

Product Name: RC60 stepper motor driver
Demensions:118x76x25mm
Voltage range: DC24-80V
Max current: 5.6A
Communication interface:RS485
Communication interface: Modbus RTU
Suitable for motor: 2 phase 42/57/60 closed loop stepper motor, Nema17/Nema23/Nema24 stepper motor

Storage temperature: -20~65°C (freeze-free)
Operating temperature: 0~45℃
Operating humidity: below 90%RH (no condensation)
Vibration frequency: less than 0.5G (4.9m/s2), 10~60Hz (non-continuous operation)
Installation environment: Free from corrosive gases, flammable gases, oil mist, or dust.

RC60 Bus-type ModBus Communication RS485 Closed Loop Stepper Motor Driver For 60 Flange Nema24 Stepper Motor
