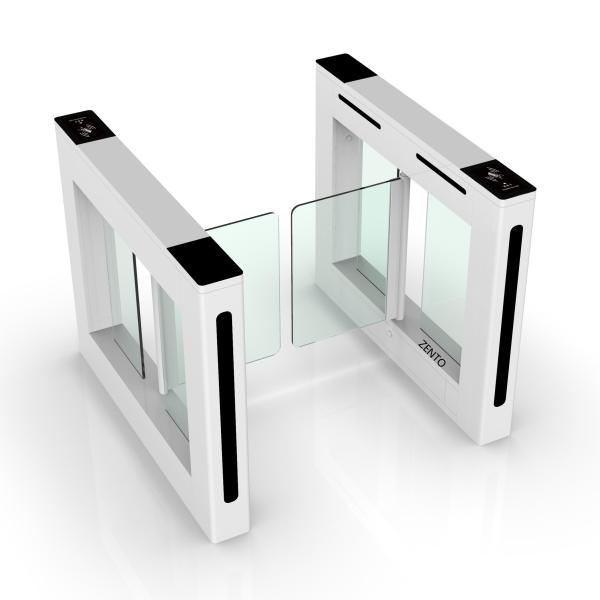

ZT-994 Face Recognition Swing Turnstile Gate 35 Persons/Min
ZT-994 Face Recognition Swing Turnstile Gate 35 Persons/Min
ZT-994 Face Recognition Swing Turnstile Gate 35 Persons/Min
ZT-994 Face Recognition Swing Turnstile Gate 35 Persons/Min
ZT-994 Face Recognition Swing Turnstile Gate 35 Persons/Min
ZT-994 Face Recognition Swing Turnstile Gate 35 Persons/Min
ZT-994 Face Recognition Swing Turnstile Gate 35 Persons/Min
ZT-994 Face Recognition Swing Turnstile Gate 35 Persons/Min
ZT-994 Face Recognition Swing Turnstile Gate 35 Persons/Min
ZT-994 Face Recognition Swing Turnstile Gate 35 Persons/Min
Specifications
Model Number :
ZT-601
Price :
$420/PCS
Product Name :
Access Control Face Recognition Swing Turnstile Gate
Response time :
0.2-0.8s
Swing turnstile standard size :
1200*140*980mm
Key word :
swing turnstile
Frequency :
30-45per/people
swing turnstile color :
customized
Brand Name :
zento
Certification :
CE, ROHS, ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
400 unit per month
Delivery Time :
5-7 working days
Packaging Details :
carton+ wooden case
Description
ZT-994 Security Access Control Swing Turnstile Gate
Product Specifications
Product Name Access Control Face Recognition Swing Turnstile Gate
Response Time 0.2-0.8s
Standard Size 1200×140×980mm
Throughput Capacity 30-45 persons/minute
Color Options Customizable
Key Features
  • 0.8s Fast Passage: High-torque motor enables throughput ≥35 persons/min
  • -Grade Durability: 304 stainless steel + 8mm tempered glass with impact resistance ≥1000J
  • 99.9% Accurate Recognition: Supports Face ID/QR Code/RFID Card/NFC multi-authentication
  • 360° Safety Protection: Dual infrared anti-pinch + anti-tailgating alarm system
  • Extreme Environment Adaptability: IP65 waterproof rating, operates reliably from -30℃ to 70℃
ZT-994 Face Recognition Swing Turnstile Gate 35 Persons/Min
Technical Overview
Mechanism

Motorized swing turnstile gates utilize a control system with infrared sensors to detect presence and authorize entry. Upon valid credential verification (card, facial scan, or biometric data), the barrier swings open and automatically closes after passage confirmation.

Construction

Swing barriers are constructed from durable materials including stainless steel, plexiglass, or tempered glass, selected based on security requirements and aesthetic preferences. Available in both waist-high and full-height configurations for varying security levels.

Operation & Accessibility

Configurable for one-way or bi-directional access with self-closing or motorized operation. Features emergency breakaway functionality for power failures. ADA-compliant design accommodates wheelchairs, walkers, and luggage with adjustable passage width (550-900mm).

Technical Parameters
Category Parameter Specification
Basic Information Model Number ZT-994
Product Name Swing Turnstile Barrier
Brand Zento
Material & Structure Main Material Stainless steel 304/316
Surface Treatment Brushed/Polished
Frame Thickness 1.5mm
Barrier Arm Material Aluminum alloy/Stainless steel
Dimensions Device Size (L×W×H) 1200×140×980mm
Passage Width 550-900mm (adjustable)
Barrier Arm Length 250-450mm
Performance Opening/Closing Time 0.2 seconds
Operating Speed 30-45 passages/minute
Temperature Range -30°C to +90°C
Humidity Range 5% - 95% (non-condensing)
ZT-994 Face Recognition Swing Turnstile Gate 35 Persons/Min
Advanced Functionality
  • Self-diagnostic system with fault detection and maintenance alerts
  • Programmable operation modes via integrated control panel
  • Anti-collision mechanism with automatic motor cutoff
  • Synchronized swing arm adjustment for dual-arm configurations
  • Automatic reset function with configurable timeout (default 5 seconds)
  • Fail-safe power-off open mode for emergency egress
  • Multi-protocol support for various card readers and access control systems
  • Bi-directional operation with configurable entry/exit controls
  • Remote management capability via network connection
Optional Features
  • Audible/visual alarm systems for security violations
  • People counting functionality
  • Enhanced infrared detection systems
  • Custom chassis and arm length configurations
ZT-994 Face Recognition Swing Turnstile Gate 35 Persons/Min
