Stainless Steel 304 Swing Turnstile Gate with IP65 Waterproof and Military-Grade Durability
Stainless Steel 304 Swing Turnstile Gate with IP65 Waterproof and Military-Grade Durability
Stainless Steel 304 Swing Turnstile Gate with IP65 Waterproof and Military-Grade Durability
Stainless Steel 304 Swing Turnstile Gate with IP65 Waterproof and Military-Grade Durability
Stainless Steel 304 Swing Turnstile Gate with IP65 Waterproof and Military-Grade Durability
Stainless Steel 304 Swing Turnstile Gate with IP65 Waterproof and Military-Grade Durability
Stainless Steel 304 Swing Turnstile Gate with IP65 Waterproof and Military-Grade Durability
Stainless Steel 304 Swing Turnstile Gate with IP65 Waterproof and Military-Grade Durability
Stainless Steel 304 Swing Turnstile Gate with IP65 Waterproof and Military-Grade Durability
Stainless Steel 304 Swing Turnstile Gate with IP65 Waterproof and Military-Grade Durability
Specifications
Brand Name :
zento
Model Number :
ZT-610-1
Certification :
CE, ROHS, ISO9001
Place of Origin :
China
MOQ :
1
Price :
Contact us to get big discount
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
400 unit per month
Delivery Time :
5-7 working days
Packaging Details :
carton+ wooden case
Product Name :
Access Control Face Recognition Swing Turnstile Gate
Response time :
0.2-0.8s
Swing turnstile standard size :
1400*160*980mm
Key word :
swing turnstile gate
Frequency :
30-45per/people
swing turnstile color :
customized
Description
ZT-610-1 Face Recognition Access Control Swing Turnstile Gate
Swing Barrier Turnstiles: The Ultimate Solution for Modern Access Control
Elevate the security and aesthetics of your building with our swing barrier turnstiles. Combining cutting-edge technology with a sleek design, these gates provide a modern, reliable, and user-friendly solution for managing pedestrian traffic in high-end environments.
Why Choose Zento Swing Gate Turnstile?
Zento swing gate turnstiles are engineered to address the specific needs of busy, public spaces. They operate with a smooth, swinging motion, using panels that retract into the chassis to create a wide, open lane for passage.
  • Exceptional Accessibility: Wide passage width makes them a perfect ADA compliant turnstile solution, accommodating wheelchairs, strollers, and large luggage.
  • Elegant & Modern Design: Refined, minimalist design with clear glass or acrylic panels complements contemporary architecture.
  • High-Volume Throughput: Ideal for high-traffic areas with quick, reliable entry (30-45 persons/minute).
  • Robust Security Features: Advanced sensors prevent tailgating and unauthorized entry when integrated with access control systems.
Product Specifications
Product Name Access Control Face Recognition Swing Turnstile Gate
Response Time 0.2-0.8s
Standard Size 1400*160*980mm
Throughput Capacity 30-45 persons/minute
Color Options Customizable
Swing Turnstile Gate Features
  • 0.8s Fast Passage: High-torque motor enables throughput ≥35 persons/min
  • Military-Grade Durability: 304 stainless steel + 8mm tempered glass with impact resistance ≥1000J
  • 99.9% Accurate Recognition: Supports Face ID/QR Code/RFID Card/NFC multi-authentication
  • 360° Safety Protection: Dual infrared anti-pinch + anti-tailgating alarm system
  • Extreme Environment Adaptability: IP65 waterproof rating, operates reliably from -30℃ to 70℃
Stainless Steel 304 Swing Turnstile Gate with IP65 Waterproof and Military-Grade Durability
Technical Parameters
Category Parameter Specification
Basic Information Model Number ZT-610-1
Product Name Swing Turnstile Barrier
Brand Zento
Material & Structure Main Material Stainless steel 304/316
Surface Treatment Brushed/Polished
Frame Thickness 1.5mm
Barrier Arm Material Aluminum alloy/Stainless steel

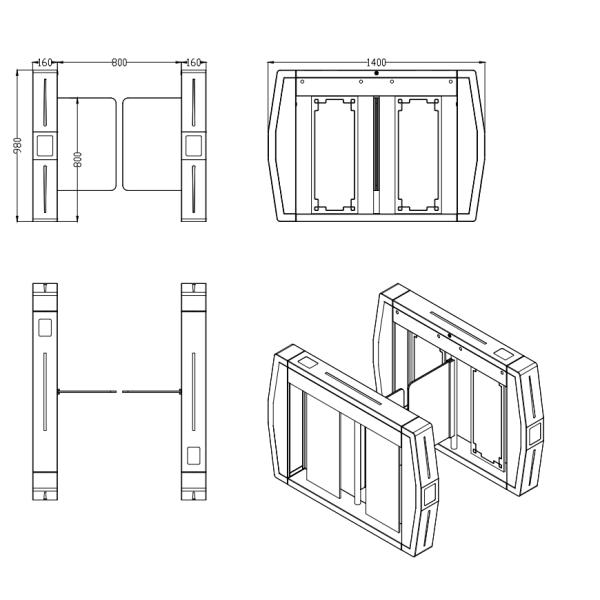

Dimensions Device Size (L*W*H) 1400*160*980mm
Passage Width 550-900mm (adjustable)
Barrier Arm Length 250-450mm
Performance Opening/Closing Time 0.2 seconds
Operating Speed 30-45 passages/minute
Temperature Range -30°C to +90°C
Humidity Range 5% - 95% (non-condensing)
Stainless Steel 304 Swing Turnstile Gate with IP65 Waterproof and Military-Grade Durability
Advanced Functionality
  • Self-diagnostic system with fault detection and maintenance alerts
  • Programmable operation modes via integrated control panel
  • Anti-collision mechanism with automatic motor cutoff
  • Synchronized swing arm adjustment for dual-arm configurations
  • Automatic reset function with configurable timeout (default 5 seconds)
  • Fail-safe power-off open mode for emergency egress
  • Multi-protocol support for various card readers and access control systems
  • Bi-directional operation with configurable entry/exit controls
  • Remote management capability via network connection
Optional Features
  • Audible/visual alarm systems for security violations
  • People counting functionality
  • Enhanced infrared detection systems
  • Custom chassis and arm length configurations
