Full Automatic Double Arm Tripod Turnstile Gate with RS485 Communication AC 220V/110V and 30-45 Persons Per Minute Capacity
Full Automatic Double Arm Tripod Turnstile Gate with RS485 Communication AC 220V/110V and 30-45 Persons Per Minute Capacity
Full Automatic Double Arm Tripod Turnstile Gate with RS485 Communication AC 220V/110V and 30-45 Persons Per Minute Capacity
Full Automatic Double Arm Tripod Turnstile Gate with RS485 Communication AC 220V/110V and 30-45 Persons Per Minute Capacity
Full Automatic Double Arm Tripod Turnstile Gate with RS485 Communication AC 220V/110V and 30-45 Persons Per Minute Capacity
Full Automatic Double Arm Tripod Turnstile Gate with RS485 Communication AC 220V/110V and 30-45 Persons Per Minute Capacity
Full Automatic Double Arm Tripod Turnstile Gate with RS485 Communication AC 220V/110V and 30-45 Persons Per Minute Capacity
Full Automatic Double Arm Tripod Turnstile Gate with RS485 Communication AC 220V/110V and 30-45 Persons Per Minute Capacity
Full Automatic Double Arm Tripod Turnstile Gate with RS485 Communication AC 220V/110V and 30-45 Persons Per Minute Capacity
Full Automatic Double Arm Tripod Turnstile Gate with RS485 Communication AC 220V/110V and 30-45 Persons Per Minute Capacity
Full Automatic Double Arm Tripod Turnstile Gate with RS485 Communication AC 220V/110V and 30-45 Persons Per Minute Capacity
Full Automatic Double Arm Tripod Turnstile Gate with RS485 Communication AC 220V/110V and 30-45 Persons Per Minute Capacity
Specifications
Place of Origin :
Shenzhen,China
Product name :
Double Arm Tripod Turnstile Gate
Application :
Office School Park Subway
Material :
304 Stainless Steel
Weight :
55KG

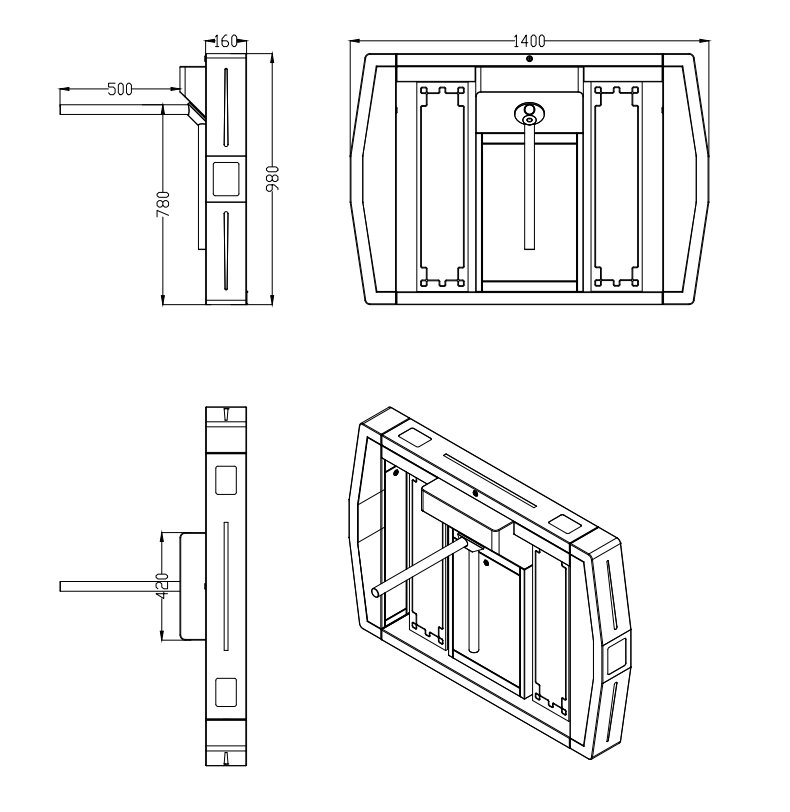

Size :
1400*160*980mm
Brand Name :
Zento
Model Number :
ZT-607
Certification :
Rohs,ISO9001,CE
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/P,T/T,Western Union,MoneyGram
Supply Ability :
300 pcs per month
Delivery Time :
5-8 work days
Packaging Details :
Wooden box pakage
Description
Full Automatic Access Control Turnstile Gate Double Arm For Gyms & Scenic Areas
Product Description
Full Automatic Fingerprint/Face Recognition Access Control Double Arm Turnstile Gate is a compact and cost-effective entrance solution designed for smooth, silent operation with reduced power consumption and wear. Ideal for high-traffic areas requiring secure pedestrian access control.
Applications
Suitable for various public venues including scenic spots, exhibition halls, cinemas, transportation hubs requiring ticket verification; workplaces for attendance tracking; and secure facilities requiring biometric authentication like fingerprint or face recognition.
Key Features
  • 304 stainless steel construction - waterproof, rust-proof, corrosion-resistant, and durable
  • Hydraulic shock absorber for quiet operation with automatic deceleration and reset
  • Anti-pinch and anti-trailing design with minimal clearance for single-person passage
  • Multiple access methods: face recognition, fingerprint, QR code, mobile APP, or card swipe
  • Flexible installation options with expansion bolts or structural glue
Full Automatic Double Arm Tripod Turnstile Gate with RS485 Communication AC 220V/110V and 30-45 Persons Per Minute Capacity
Technical Specifications
Framework 304/316 Stainless Steel
Dimensions 420*330*980mm
Weight 45KG
Arm Length 500-900mm
Rated Power 120W
Operating Temperature -25℃ ~ +60℃, RH ≤90%
Power Supply AC 220V/110V ±10% 50/60MHZ (optional)
Throughput Capacity 30-45 persons/minute (opening), 25-35 persons/minute (closing)
Full Automatic Double Arm Tripod Turnstile Gate with RS485 Communication AC 220V/110V and 30-45 Persons Per Minute Capacity
Operation Modes Comparison
Functionality Full-Auto Semi-Auto Manual
Malfunction self-check and alarm ✓ * *
Configurable operation settings ✓ ✓ *
Emergency response Auto-drop Auto-drop No movement
Power-on behavior Auto-raise Manual raise No movement
System integration capability ✓ ✓ *
Full Automatic Double Arm Tripod Turnstile Gate with RS485 Communication AC 220V/110V and 30-45 Persons Per Minute Capacity
Advanced Features
• Auto-reposition function locks turnstile if passage isn't completed within set time
• Configurable for bi-directional or unidirectional flow
• Automatic arm drop during power failure
• Self-locking mechanism after each passage
• LED directional indicators guide user passage
• Standard interfaces for easy integration with various reader systems
Maintenance Guidelines
  • Regularly clean surface dust and debris
  • Monthly fastener tightness checks
  • Biannual lubrication of moving parts
  • Biannual component wear inspection
  • Annual remote control battery replacement (DC12V, 23A)
  • Monitor for signal interference from metal objects or low battery
