OEM Remote Control 10 Million Operating Times 0.6s Open Time Parking Boom Gate with 2mm Iron Cabinet
OEM Remote Control 10 Million Operating Times 0.6s Open Time Parking Boom Gate with 2mm Iron Cabinet
OEM Remote Control 10 Million Operating Times 0.6s Open Time Parking Boom Gate with 2mm Iron Cabinet
OEM Remote Control 10 Million Operating Times 0.6s Open Time Parking Boom Gate with 2mm Iron Cabinet
OEM Remote Control 10 Million Operating Times 0.6s Open Time Parking Boom Gate with 2mm Iron Cabinet
OEM Remote Control 10 Million Operating Times 0.6s Open Time Parking Boom Gate with 2mm Iron Cabinet
OEM Remote Control 10 Million Operating Times 0.6s Open Time Parking Boom Gate with 2mm Iron Cabinet
OEM Remote Control 10 Million Operating Times 0.6s Open Time Parking Boom Gate with 2mm Iron Cabinet
Specifications
Product Nanem :
10 million operating times automatic barrier gate
Key word :
car parking system boom gates, boom gate for car park
Open time :
0.6s(Speed can adjust)
Boom type :
straight, folding, fenceing boom
Cabinet material :
2mm Iron with color painting
Cabinet color :
grey/blue(optional)
Brand Name :
zento
Model Number :
ZT-YJ03
Certification :
CE, ROHS, ISO9001
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
40000 unit per month
Delivery Time :
5-7 working days
Packaging Details :
carton+ wooden case
Description
OEM Remote Control Access Control Automatic Parking Boom Barrier with LED Arm
Boom Barrier Gate Movement Features
  • Highly integrated movement with hidden internal connecting rod structure for delicate design
  • Screw transmission reducer provides high efficiency and large output torque
  • Mold-formed connecting rod structure ensures high precision and stability
  • Servo motor drive offers controllable speed, precise positioning, and stable operation
  • Motor-force self-locking mechanism prevents manual lifting when powered
  • Direct motor-reducer connection for high transmission efficiency and stability
  • Flange-designed reducer housing eliminates internal structure processing needs
  • Multiple thin wires through spring balance design for extended service life
  • Quick-disassembly cast aluminum rod handle with exquisite appearance
  • Ball screw pair core transmission for precise assembly and durability
  • No dead point design allows manual lifting after power failure

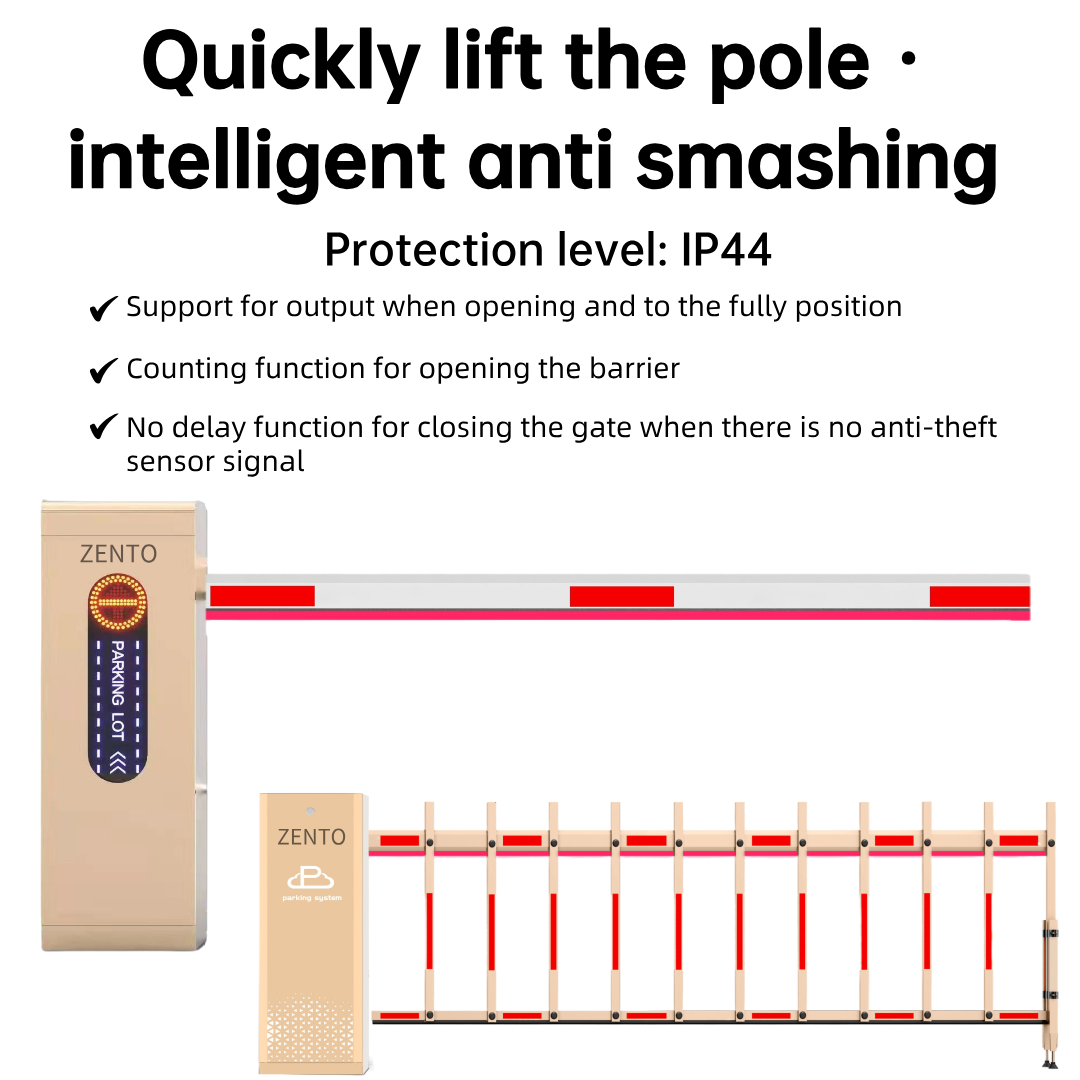

Boom Barrier Gate Chassis Performance Characteristics
  • Supports output when opening and at fully position
  • Includes gate opening counting function
  • No delay function for closing gate without anti-theft sensor signal
  • Remote control directly enters fleet mode
  • Supports closing anti-theft sensor at small angles
Boom Barrier Gate Lever Features
  • Brushless DC motor with multi-segment adjustable speed
  • Tempered glass with blue LED backlighting and red/green light display
  • 24V DC power supply ensures personal safety
Features of the Servo Boom Barrier Gate Control System
  • Smooth operation with buffered deceleration when in position
  • Motor phase line locking maintains position after power outage
  • Intelligent perception of abnormalities including motor stalling and obstacles
  • Intelligent servo control ensures accurate and stable operation
  • Real-time monitoring of gate pole operation data
  • Multiple control modes: onboard buttons, remote control, wire control, 485
  • Multiple application modes: common, fleet, counting
  • Unlimited switch with self-test and self-learning functions
  • 485 communication interface for remote control and status monitoring
OEM Remote Control 10 Million Operating Times 0.6s Open Time Parking Boom Gate with 2mm Iron Cabinet
Specification Details
Case thickness 1.5mm
Operating voltage 24V
Motor power DC brushless 120W
Gate rod length (Straight) ≤ 4m (1.5-6 sec) / 4m-6m (3-6 sec)
Gate rod length (Fence) ≤ 5m (3-6 sec)
Protection level IP44
Remote distance 30m

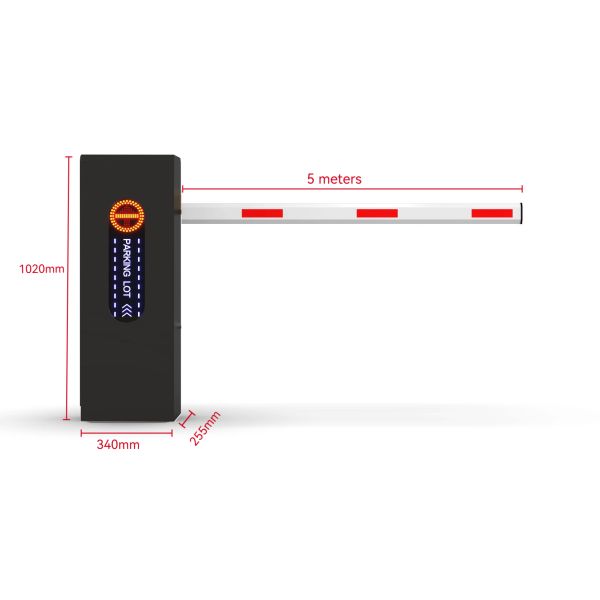

Case size 1020*340*260mm
Lifting rod usage 5 million times
Parameter Value
Opening/Close Time 1.5sec-6sec
Arm length 3M - 6M
Power supply AC100V~240V, DC24V
Cabinet Material Cold-roll sheet
Boom Material Aluminum alloy
Cabinet Dimension 330*268*965(mm)
Net Weight 48KG
Input Interface Photocell, loop detector, parking system, wire control
Input signal 12V relay signal or Pulse Wide>100MS
Motor type DC24V Brushless motor
Rated power 160W
Working Temperature -35°C to +65°C
Relative Humidity ≥90%
MCBF 5 million times
Remote Control distance 30m to 100m
Optional Accessories Loop detector; IR photocell, Traffic light, Alarm light
OEM Remote Control 10 Million Operating Times 0.6s Open Time Parking Boom Gate with 2mm Iron Cabinet
