Specifications
Video outgoing-inspection :
Provided
Make :
kuangyuan
Warranty :
1 Year
Product name :
Double girder gantry crane with winch type trolley
Work Duty :
A5-A6
Core Components :
PLC, Bearing, Gearbox, Motor
Lifting mechanism :
Winch type trolley with seperate motor reducer and brake
Max. Lifting Height :
50m(164.04ft)
Price :
$15,000-45,000 / set
Application :
outdoor usage
After-sales Service Provided :
1 years after installation
Power Source :
380v 50hz 400v 50hz 480v 60hz
Color :
Red/yellow/blue/ as you like
MOQ :
1 set
Weight (KG) :
450000 kg(992080.18lb)
Control Method :
pendent line/remote control/cabin control
Place of Origin :
Henan, China
Machinery Test Report :
Provided
Main electrical parts :
Schneider/CHINT
Lifting Capacity :
10-100TON
Span :
7-50m(22.97-164.04ft)
Rated Loading Capacity :
20ton, 30ton, 50ton, 80ton
Brand Name :
Kuangyuan
Certification :
CE/EAC
Description
European Style Low Price Double Girder Gantry Crane with Winch Type Trolley for Outdoor Usage
European Style Low Price Double Girder Gantry Crane with Winch Type Trolley for Outdoor Usage
European Style Low Price Double Girder Gantry Crane with Winch Type Trolley for Outdoor Usage
European Style Low Price Double Girder Gantry Crane with Winch Type Trolley for Outdoor Usage

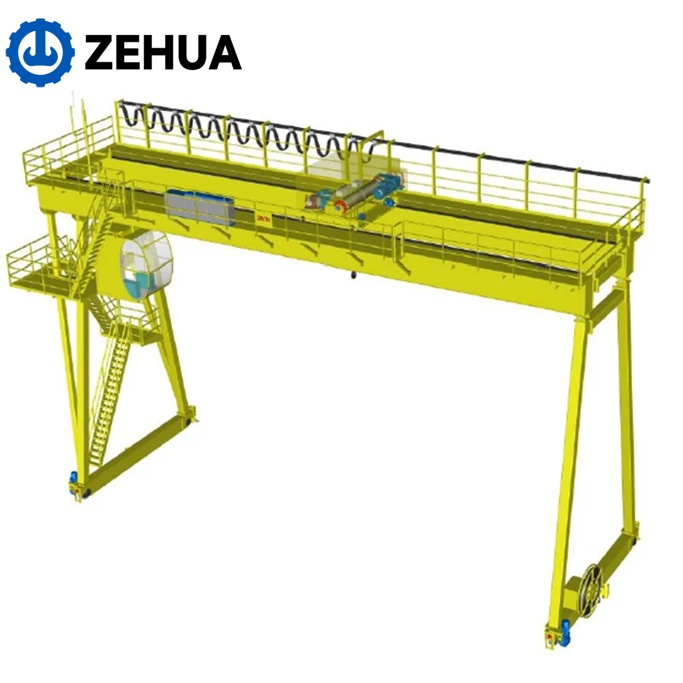

European Double Girder Gantry Crane

The European-style double girder gantry crane is currently a widely used type of lifting equipment. Its hoisting mechanism consists of an electric hoist, and it operates by traveling on ground rails supported by two legs. It is designed for intermittent and repetitive handling and transportation of materials and equipment in general operating environments, offering functions such as vertical lifting, as well as longitudinal and lateral movement. The lifting attachments are available in forms such as hooks, grabs, and electromagnets to meet users' requirements for handling various types of materials. The outer sides of the legs can be equipped with cantilever arms to facilitate the transfer of goods from within the span to the outside, although it can also be configured without cantilevers. The working class ranges from A3 to A5.
contact us for more information！
European Style Low Price Double Girder Gantry Crane with Winch Type Trolley for Outdoor Usage
European Style Low Price Double Girder Gantry Crane with Winch Type Trolley for Outdoor Usage
European Style Low Price Double Girder Gantry Crane with Winch Type Trolley for Outdoor Usage
European Style Low Price Double Girder Gantry Crane with Winch Type Trolley for Outdoor Usage
European Style Low Price Double Girder Gantry Crane with Winch Type Trolley for Outdoor Usage
European Style Low Price Double Girder Gantry Crane with Winch Type Trolley for Outdoor Usage
European Style Low Price Double Girder Gantry Crane with Winch Type Trolley for Outdoor Usage
European Style Low Price Double Girder Gantry Crane with Winch Type Trolley for Outdoor Usage

Core Advantages

1.Hoisting and traveling mechanisms feature variable frequency speed control, low noise, low energy consumption, smooth operation, slow speed under heavy load, and fast speed under light load, with a speed regulation range of 1:10 for energy saving and consumption reduction. The lightweight design reduces the overall weight by 15% to 30% compared to traditional cranes, decreases the maximum wheel load by 20% to 35%, and lowers energy consumption by 10% to 20%.

2.Equipped with a high-precision drive system and speed regulation devices, it enables smooth speed adjustment for actions such as hoisting and traveling. When lifting heavy loads, it ensures precise control of speed and positioning, minimizing impacts and sway, thereby preventing damage to surrounding equipment.

3.The electrical connections utilize internationally standardized heavy-duty aviation plugs with an IP55 protection rating. The electrical switching for grabs and electromagnets enables quick plug-and-play operation, ensuring reliable and secure connections.
Product Paramenters
European Style Low Price Double Girder Gantry Crane with Winch Type Trolley for Outdoor Usage
Lifting Capacity
（ton）
Main hook
5
10
20
32
50
Aux hook
/

5
5
10
Span（m）
18 22 26 30 35
Lifting Height（m）
10
10/12
Working Duty
A5



Speed(m/min)
Main Hook
0.88-8.8
0.73-7.3
0.62-6.2
0.5-5
0.4-4
Aux Hook
/
0.88-8.8
0.73-7.3
Trolley Travelling
2.6-26
3.2-32
3.0-30
Crane Travelling
3.6-36
3.6-36
4.0-40
4.0-40
3.6-36
4.0-40

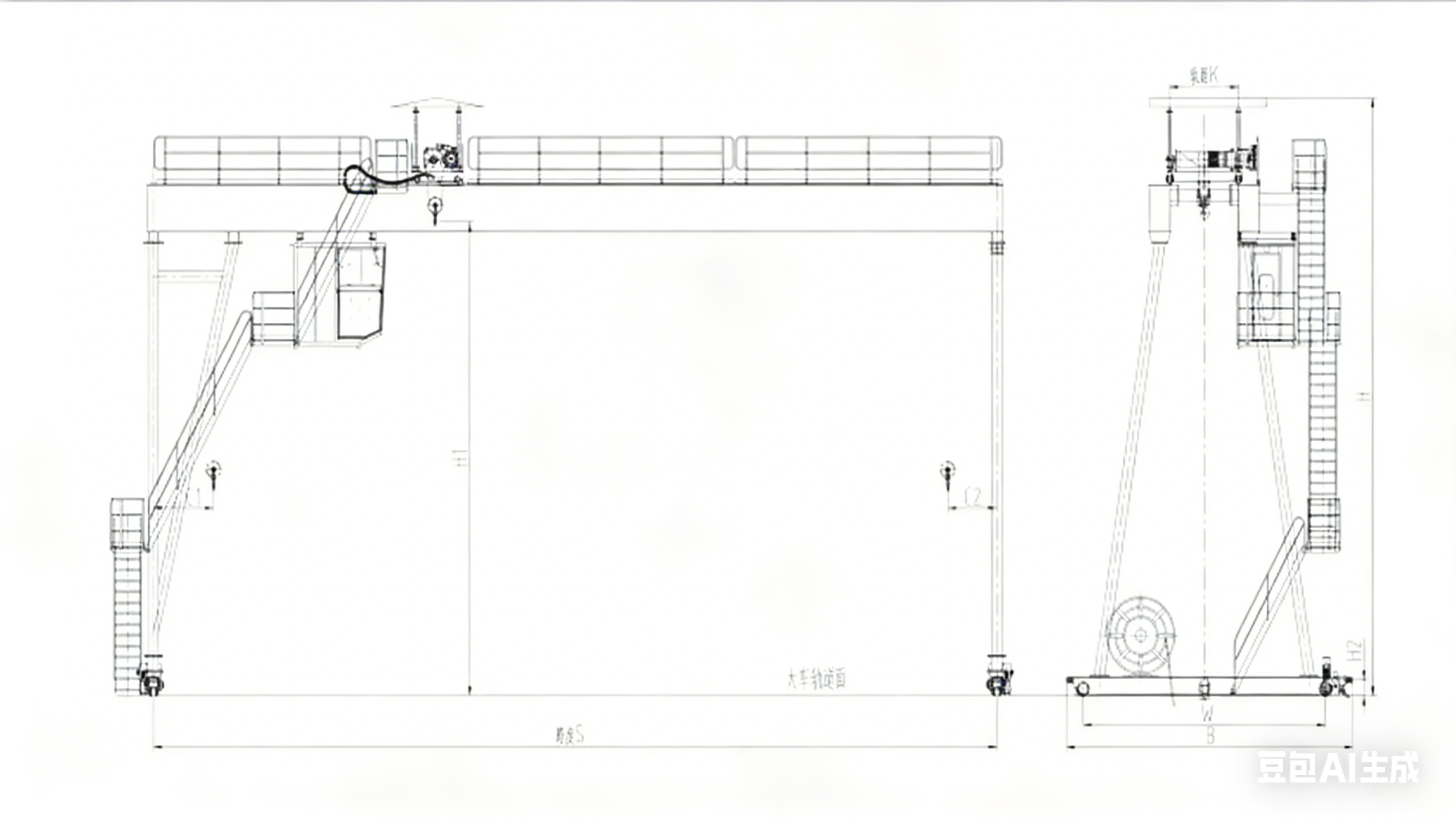

Extreme Dimension(mm)
C1
1300
1500
2000
C2
1000
1200
1700
2000
Maximum Wheel Load（kn）
95,105,115,125,135
130,140,150,160,170
100,110,120,125,135
160,165,170,180,190
220,225,230,240,255
Power Supply
3phase AC 50Hz 380V
European Style Low Price Double Girder Gantry Crane with Winch Type Trolley for Outdoor Usage
European Style Low Price Double Girder Gantry Crane with Winch Type Trolley for Outdoor Usage
European Style Low Price Double Girder Gantry Crane with Winch Type Trolley for Outdoor Usage
European Style Low Price Double Girder Gantry Crane with Winch Type Trolley for Outdoor Usage
European Style Low Price Double Girder Gantry Crane with Winch Type Trolley for Outdoor Usage
European Style Low Price Double Girder Gantry Crane with Winch Type Trolley for Outdoor Usage
European Style Low Price Double Girder Gantry Crane with Winch Type Trolley for Outdoor Usage
European Style Low Price Double Girder Gantry Crane with Winch Type Trolley for Outdoor Usage

Q: Do you support customizing cranes according to my specific needs?

A: Absolutely. We offer full customization based on your workshop dimensions (span, lifting height), power supply specifications, duty cycle (FEM/ISO class), and special environmental requirements (explosion-proof, corrosion-resistant, high-temperature). Please provide your detailed operational requirements for a tailored design and quotation.

Q: Does the equipment comply with international safety and quality standards? What certifications do you have?

A: Yes. Our core design and manufacturing follow international standards such as ISO, FEM, DIN. We can apply for and provide CE certification (covering Machinery Directive MD and Low Voltage Directive LVD) for target markets, along with a full Declaration of Conformity and technical documentation.

Q: Does the price include installation, commissioning, and operator training?

A: Our standard quotation is typically EXW or FOB. However, we offer comprehensive value-added service packages, including remote installation guidance, optional on-site engineer commissioning services, and detailed installation manuals with operational training videos. Specific service terms are negotiable before order confirmation.

Q: How do you guarantee product quality? Do you have testing and factory inspection procedures?

A: We implement a strict quality control system. Every crane undergoes mandatory key process inspections, no-load and load tests(including rated load and overload tests), and complete operational debugging before leaving the factory. We welcome and support pre-shipment inspections by the buyer or third-party agencies (e.g., SGS).

Q: Can we visit your factory or see case studies of similar projects?

A: You are most welcome! We are delighted to arrange a visit to our manufacturing base to witness our production capability and quality control firsthand. We can also provide video case studies and references (under NDA) from our global clients with similar applications.
