Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Specifications
Warranty :
1 Year
Place of Origin :
Henan, China
Brand Name :
Zehua Crane
Control Method :
Ground Control+ Remote Control (customized)
Work Duty :
A5-A8
MOQ :
1 set
Machinery Test Report :
Provided
Max. Lifting Height :
10 m, 25 meters, 15 meters
Advantage :
High Performance
Lifting Capacity :
0.5-500Ton
Video outgoing-inspection :
Provided
Span :
25m
Lifting mechanism :
Wire Rope Electric Hoist
Price :
$10,900 / set
Application :
Offshore
Product name :
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry
Wheels :
Rubber Tyre Caster Wheels
Crane feature :
Rubber Tire Hoist Lifting Crane
Weight (KG) :
10000 kg
Lifting height :
2m-20m
Core Components :
Bearing, Engine, PLC, Gearbox, Motor, Pressure Vessel, Gear, Pump
Rated Loading Capacity :
80 Ton, 45 Ton, 70 Ton, 50 Ton
Keywords :
Rubber Wheel Mounted Gantry Crane
Description
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane

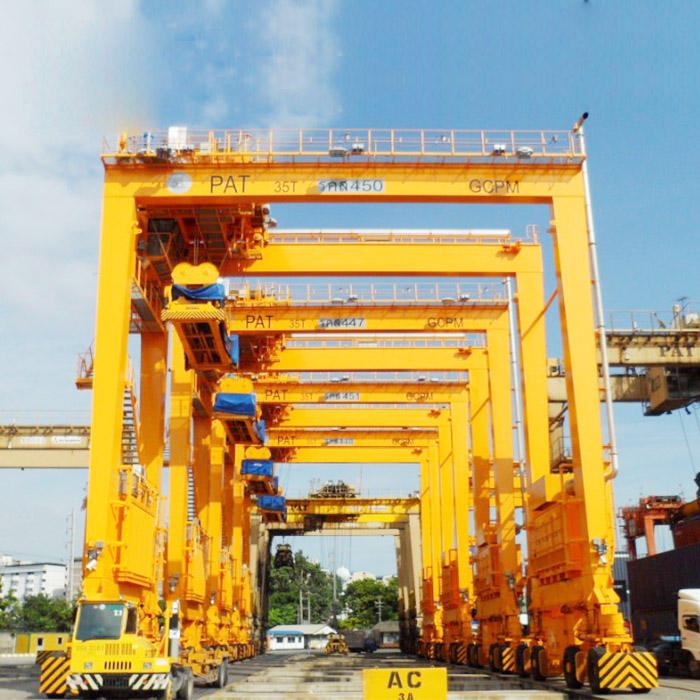

RTG Crane Rubber Type Container Gantry Crane

Rubber tyre container gantry crane (referred to as yard bridge) is suitable for port, wharf, logistics and other container yard or transfer station of international standard container handling and loading and unloading. It is supported on the inflatable rubber tire, often powered by diesel generator, and can also be powered by cable reel and lithium battery. It is composed of large car mechanism, small car assembly, gantry frame, power system and special container spadders.Design, manufacture and inspect FEM, DIN,IEC, AWS, GB and other latest domestic and foreign standards. Zehua RTG has various functions, high efficiency, stability and reliability, a wide range of operations, good mobility, little sensitivity to ground unsmoothness, convenient use, maintenance, maintenance, the biggest characteristics of straight, horizontal, 0-90 degree steering and in situ rotation.
With perfect safety indication and overload protection device, to ensure the maximum safety of operators and equipment. Electric drive adopts full digital AC frequency conversion, PLC control speed regulation unique technology, flexible control, high precision. Standard with domestic and foreign famous brand purchased parts to ensure the quality of the machine.
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane

Rubber tyre Container Crane Features:

1, The power source is three-phase alternating current,rated frequency is 50HZ,rated voltage is 380V.
2, The working environment temperature ranges from -20℃ to +45℃ and the relative humidity is no lower than 95%(with dew).
3, In-service, the wind speed should be no higher than 20m/s; out-of-service, the wind speed should be no higher than 44m/s.
4, The working duty is A6-A7.
5, The gradient of crane traveling floor should be less than 1% and part of that should be no more than 3%.
6, The crane which has the special requirement for working conditions, can be manufactured following the contracts.
Product Paramenters
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Model
LJ35/40-23
LightType LJ40-23
Capacity（under spreader）（t）
35,40
40
Work Duty
A7,A8
A6,A7
Span(m)
23.47
23.47
Lifting Height(m)
12.2~17.8
16.5
Stack Layers/Passing Layers
3/4~5/6
5/6
Container Model
20',40',45'
20',40',45'
Spreader Rotating Angle
±5°
±5°
Hoisting Speed(m/min)
13/26,23/52
12/18,18/28
Cross Travel Speed(m/min)
50,70
24
Long Travel Speed(m/min)
full load-90,without load-130
full load-20,without load-40
Max Wheel Load(kN)
310
310
Total Rating(kW)
150,230
110,150
Power Supply
Electric, Diesel Engine, Electric-Diesel Drive
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane

Q: Do you support customizing cranes according to my specific needs?

A: Absolutely. We offer full customization based on your workshop dimensions (span, lifting height), power supply specifications, duty cycle (FEM/ISO class), and special environmental requirements (explosion-proof, corrosion-resistant, high-temperature). Please provide your detailed operational requirements for a tailored design and quotation.

Q: Does the equipment comply with international safety and quality standards? What certifications do you have?

A: Yes. Our core design and manufacturing follow international standards such as ISO, FEM, DIN. We can apply for and provide CE certification (covering Machinery Directive MD and Low Voltage Directive LVD) for target markets, along with a full Declaration of Conformity and technical documentation.

Q: Does the price include installation, commissioning, and operator training?

A: Our standard quotation is typically EXW or FOB. However, we offer comprehensive value-added service packages, including remote installation guidance, optional on-site engineer commissioning services, and detailed installation manuals with operational training videos. Specific service terms are negotiable before order confirmation.

Q: How do you guarantee product quality? Do you have testing and factory inspection procedures?

A: We implement a strict quality control system. Every crane undergoes mandatory key process inspections, no-load and load tests(including rated load and overload tests), and complete operational debugging before leaving the factory. We welcome and support pre-shipment inspections by the buyer or third-party agencies (e.g., SGS).

Q: Can we visit your factory or see case studies of similar projects?

A: You are most welcome! We are delighted to arrange a visit to our manufacturing base to witness our production capability and quality control firsthand. We can also provide video case studies and references (under NDA) from our global clients with similar applications.
Zehua RTG Rubber Wheel Hoist Lifting Crane Cnc Fiber 70t Laser Gantry Home Gantry Crane Mobile Gantry Crane
