Specifications
Brand Name :
ZEHUA
Price :
$20,000-30,000 / set
Machinery Test Report :
Provided
Core Components :
PLC, Engine, Gearbox, Bearing, Motor, Pressure Vessel, Gear
Application :
widely
Max. Lifting Height :
100 m(328.08ft)
Span :
custormized
Place of Origin :
Henan, China
Power :
50 Hz
MOQ :
1 set
Max. Lifting Load :
custormized
Make :
ZEHUA
Warranty :
1 Year
Video outgoing-inspection :
Provided
Weight (KG) :
50000 kg(110231.13lb)
Description
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price

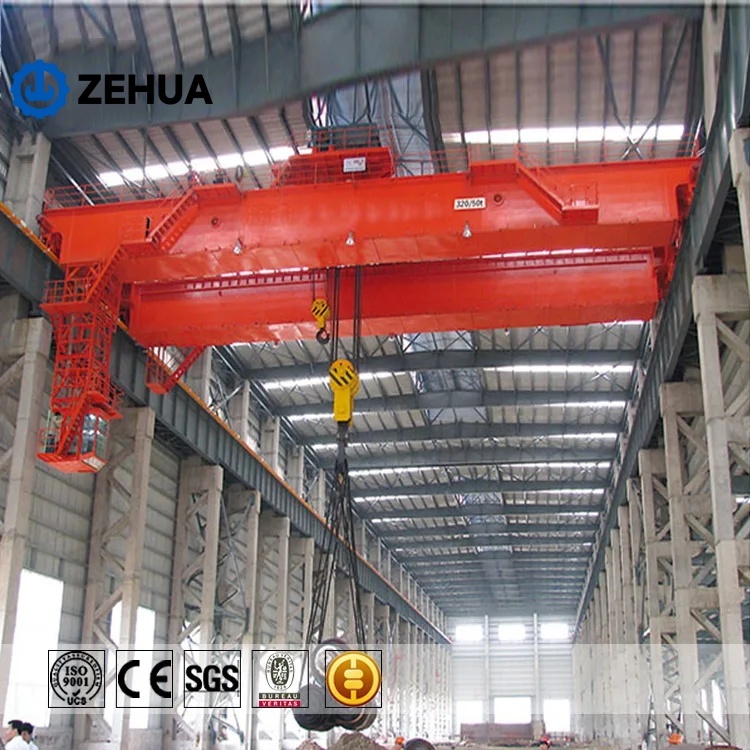

QD Double Girder Overhead Crane

QD model overhead crane with hook is mainly used in inside workshop. It is divided into two working classes: A5 and A6 according to the use grade and load-up condition. There are three kinds of method for entering the platform of cab from the side, from the end and from the top. The cab can be either fixed at the left end or at the right end. 4. Safe slide wire or angle iron can be used for electric conduction of the crane; it can be either at the opposite side of the cab or at the same-side of the cab. Operation of the crane shall be finished in cab completely.
contact us for more information！
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
Easy Load handling with precise
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
Certified according to most EX approvals.(Custom product)
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
Large rope drum diameter
keeps winch trolley compact.
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
Metal Plate Handling
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
Steel Coils & Paper industry
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
Special Applications
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
Smelting Metal Production
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
Recycling & Bulk Material
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
Smart Warehousing
Product Paramenters
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
Lifting Capacity(t)

5
10
16
20/5
32/5
50/10
Span(m)

10.5-31.5










Speed(m/min)
Main Hook Lifting
A5
11.3
8.5
7.9
7.2
7.5
5.9
A6
15.6
13.3
13
12.3
9.5
7.8
Aux. Hook Lifting



16.7
19.5
19.5
10.4
Traveling of Crab

37.2
43.8
44.6
44.6
42.4
38.5
Traveling of Trolley
A5
89.8/91.8
90.7/91.9/84.7
84.7/87.6
84.7/87.6
87/74.2
74.6
A6
92.7/93.7
115.6/116/112.5
112.5/101.4
112.5/101.4
101.4/101.8
75/76.6
Operational Model
Cabin; Remote Control; Ground Handle







Working Duty
A5,A6







Power Supply
Three-phase A.C. 380V, 50Hz







QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price
QD Model Overhead Crane QD Double Girder Hook Bridge Crane Single Hook Double Hook High Quality Selection Low Price

Q: Do you support customizing cranes according to my specific needs?

A: Absolutely. We offer full customization based on your workshop dimensions (span, lifting height), power supply specifications, duty cycle (FEM/ISO class), and special environmental requirements (explosion-proof, corrosion-resistant, high-temperature). Please provide your detailed operational requirements for a tailored design and quotation.

Q: Does the equipment comply with international safety and quality standards? What certifications do you have?

A: Yes. Our core design and manufacturing follow international standards such as ISO, FEM, DIN. We can apply for and provide CE certification (covering Machinery Directive MD and Low Voltage Directive LVD) for target markets, along with a full Declaration of Conformity and technical documentation.

Q: Does the price include installation, commissioning, and operator training?

A: Our standard quotation is typically EXW or FOB. However, we offer comprehensive value-added service packages, including remote installation guidance, optional on-site engineer commissioning services, and detailed installation manuals with operational training videos. Specific service terms are negotiable before order confirmation.

Q: How do you guarantee product quality? Do you have testing and factory inspection procedures?

A: We implement a strict quality control system. Every crane undergoes mandatory key process inspections, no-load and load tests(including rated load and overload tests), and complete operational debugging before leaving the factory. We welcome and support pre-shipment inspections by the buyer or third-party agencies (e.g., SGS).

Q: Can we visit your factory or see case studies of similar projects?

A: You are most welcome! We are delighted to arrange a visit to our manufacturing base to witness our production capability and quality control firsthand. We can also provide video case studies and references (under NDA) from our global clients with similar applications.
