Specifications
Control method :
Ground Control+ Remote Control (customized)
Core Components :
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Color :
Customer's Requirements
Machinery Test Report :
Provided
Rated Lifting Moment :
customized
After-sales Service Provided :
After-sales Service
Rotation angle :
180 /270 /360/Customized
Video outgoing-inspection :
Provided
Max. Lifting Height :
customized
Weight (KG) :
1000 kg(2204.62lb)
Place of Origin :
Henan, China
Product name :
Column Mounted Slewing Jib Crane
Certification :
CE ISO
MOQ :
1 set
Price :
$2,500 / set
Warranty :
1 Year
Main Electrical Part :
Schneider
Rotating speed :
0.5-0.8r/min
Lifting mechanism :
Wire Rope Electric Hoist
Span :
customized
Brand Name :
Zehua
Application :
Factory/Warehouse/Workshop
Make :
Zehua
Working Duty :
A3-A5
Rated Loading Capacity :
customized
Description
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane

Jib Crane

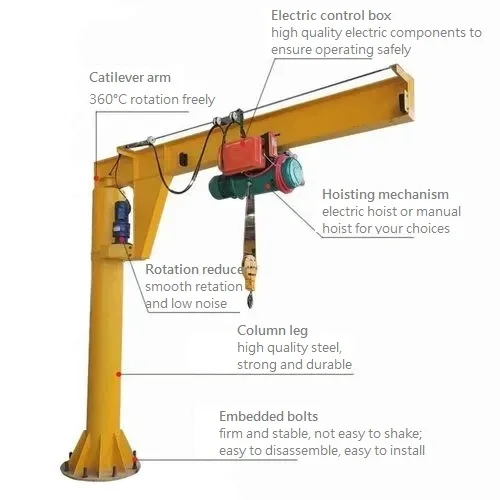

Free Standing Column Jib Crane
•Column cantilever crane is a kind of light and small lifting equipment. It has the advantages of novel structure, high efficiency,energy saving, time and labor saving, reasonable, simple, convenient operation, flexible rotation, and large working space.
•Random operation in the three-dimensional space, in short-distance and intensive transportation occasions, shows its superiority than other conventional lifting equipment, and is an energy-saving and efficient material lifting equipment. It can be widely used in fixed places such as workshop production lines, warehouses, and docks.

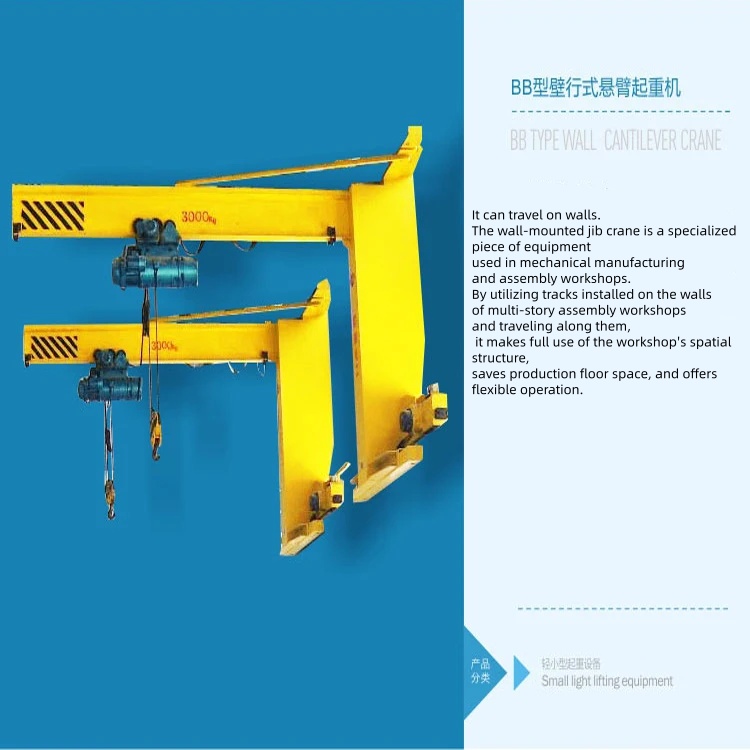

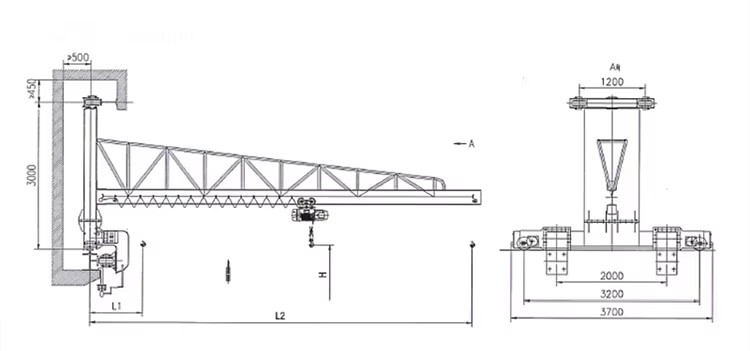

Wall Travelling Jib Crane
•The wall-mounted cantilever crane is a special crane for machinery manufacturing and assembly workshops. It uses the rails arranged on the walls of the multi-layer assembly workshop to walk on the walls, which can make full use of the space structure of the workshop and save the production space. The operation is flexible and convenient.
•It provides fluent moving of materials on an every level of the workshop.
•Equipped by wire rope hoists with low headroom or chain hoists series.
contact us for more information！
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane

Core Advantages

1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane

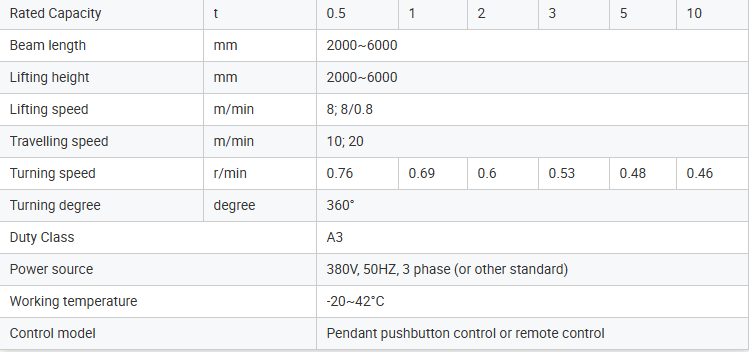

Product Paramenters
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane
Hot Selling 360-Degree Rotation Jib Crane for Factory/Warehouse Use 1 Year Warranty Cantilever Crane

Q: Do you support customizing cranes according to my specific needs?

A: Absolutely. We offer full customization based on your workshop dimensions (span, lifting height), power supply specifications, duty cycle (FEM/ISO class), and special environmental requirements (explosion-proof, corrosion-resistant, high-temperature). Please provide your detailed operational requirements for a tailored design and quotation.

Q: Does the equipment comply with international safety and quality standards? What certifications do you have?

A: Yes. Our core design and manufacturing follow international standards such as ISO, FEM, DIN. We can apply for and provide CE certification (covering Machinery Directive MD and Low Voltage Directive LVD) for target markets, along with a full Declaration of Conformity and technical documentation.

Q: Does the price include installation, commissioning, and operator training?

A: Our standard quotation is typically EXW or FOB. However, we offer comprehensive value-added service packages, including remote installation guidance, optional on-site engineer commissioning services, and detailed installation manuals with operational training videos. Specific service terms are negotiable before order confirmation.

Q: How do you guarantee product quality? Do you have testing and factory inspection procedures?

A: We implement a strict quality control system. Every crane undergoes mandatory key process inspections, no-load and load tests(including rated load and overload tests), and complete operational debugging before leaving the factory. We welcome and support pre-shipment inspections by the buyer or third-party agencies (e.g., SGS).

Q: Can we visit your factory or see case studies of similar projects?

A: You are most welcome! We are delighted to arrange a visit to our manufacturing base to witness our production capability and quality control firsthand. We can also provide video case studies and references (under NDA) from our global clients with similar applications.
