Specifications
Color :
Customized Color Acceptable
Brand Name :
ZEHUA
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Application :
widely
Make :
ZEHUA
Warranty :
1 Year
Main electrical parts :
Schneider
Descrption :
Jetty Crane
Work Duty :
A5~A7
Control Method :
Cabin Control+Remote Control
MOQ :
1 set
Core Components :
Engine, Bearing, Gearbox, Motor
Rated Loading Capacity :
60 Ton, 100 ton, 50 Ton, customized
Max. Lifting Height :
10 m, 15 meters, customized
Weight (KG) :
50000 kg(110231.13lb)
Lifting Capacity :
customized
Price :
$90,000-92,000 / set
Span :
customized
Type :
Four-bar Portal Boom
After-sales Service Provided :
Engineers available to service machinery overseas
Rated Lifting Moment :
customized
Product name :
rubber tyre container gantry crane
Lifting mechanism :
Eliectric Hoist/Electric Winch
Place of Origin :
Henan, China
Description
Products Description
RTG Container Gantry Crane 50ton 60ton 100ton Cabin Control with GPS Auto-Steering Energy Saving for Container Terminals
RTG Container Gantry Crane 50ton 60ton 100ton Cabin Control with GPS Auto-Steering Energy Saving for Container Terminals

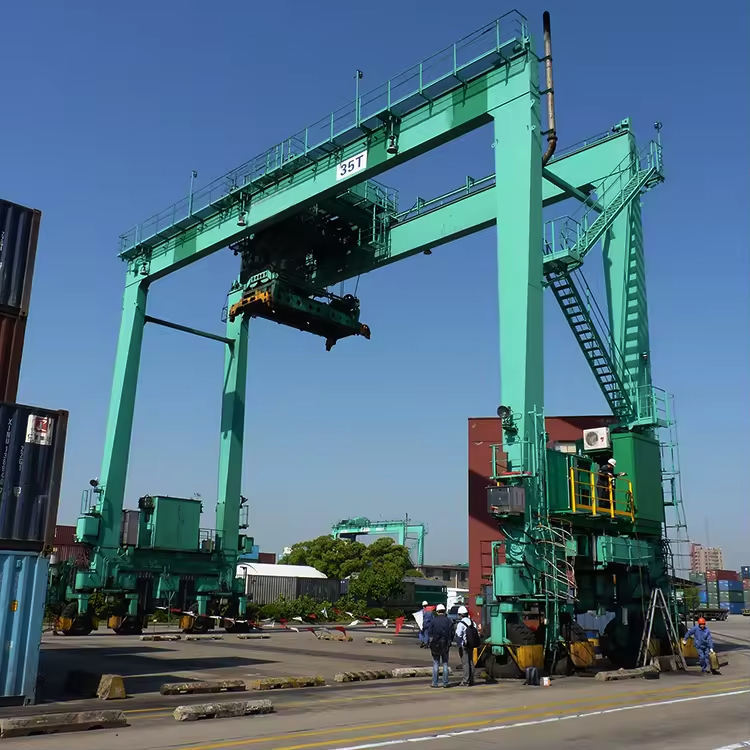

RTG Crane Rubber Type Container Gantry Crane

Rubber tyre container gantry crane (referred to as yard bridge) is suitable for port, wharf, logistics and other container yard or transfer station of international standard container handling and loading and unloading. It is supported on the inflatable rubber tire, often powered by diesel generator, and can also be powered by cable reel and lithium battery. It is composed of large car mechanism, small car assembly, gantry frame, power system and special container spadders.
Design, manufacture and inspect FEM, DIN, IEC, AWS, GB and other latest domestic and foreign standards. Zehua RTG has various functions, high efficiency, stability and reliability, a wide range of operations, good mobility, little sensitivity to ground unsmoothness, convenient use, maintenance, maintenance, the biggest characteristics of straight, horizontal, 0-90 degree steering and in situ rotation.
With perfect safety indication and overload protection device, to ensure the maximum safety of operators and equipment. Electric drive adopts full digital AC frequency conversion, PLC control speed regulation unique technology, flexible control, high precision. Standard with domestic and foreign famous brand purchased parts to ensure the quality of the machine.
contact us for more information！
RTG Container Gantry Crane 50ton 60ton 100ton Cabin Control with GPS Auto-Steering Energy Saving for Container Terminals
RTG Container Gantry Crane 50ton 60ton 100ton Cabin Control with GPS Auto-Steering Energy Saving for Container Terminals
RTG Container Gantry Crane 50ton 60ton 100ton Cabin Control with GPS Auto-Steering Energy Saving for Container Terminals
RTG Container Gantry Crane 50ton 60ton 100ton Cabin Control with GPS Auto-Steering Energy Saving for Container Terminals
Products Components
RTG Container Gantry Crane 50ton 60ton 100ton Cabin Control with GPS Auto-Steering Energy Saving for Container Terminals

Rubber tyre Container Crane Features:

1, The power source is three-phase alternating current,rated frequency is 50HZ,rated voltage is 380V.
2, The working environment temperature ranges from -20℃ to +45℃ and the relative humidity is no lower than 95%(with dew).
3, In-service, the wind speed should be no higher than 20m/s; out-of-service, the wind speed should be no higher than 44m/s.
4, The working duty is A6-A7.
5, The gradient of crane traveling floor should be less than 1% and part of that should be no more than 3%.
6, The crane which has the special requirement for working conditions, can be manufactured following the contracts.

Advanced Manufacturing Technology:

1, The power source is three-phase alternating current,rated frequency is 50HZ,rated voltage is 380V.
2, The working environment temperature ranges from -20℃ to +45℃ and the relative humidity is no lower than 95%(with dew).
3, In-service, the wind speed should be no higher than 20m/s; out-of-service, the wind speed should be no higher than 44m/s.
4, The working duty is A6-A7.
5, The gradient of crane traveling floor should be less than 1% and part of that should be no more than 3%.
6, The crane which has the special requirement for working conditions, can be manufactured following the contracts.

Product Characteristics

1, the company provides a variety of power combination schemes (diesel units, mains, small power diesel units + lithium
batteries), energy saving and environmental protection;
2, the standard bidirectional flexible resistance anti-rocking system, optional multifunctional frequency conversion anti-rocking fidget system and electronic anti-rocking system, anti-rocking effect is remarkable, easy maintenance, improve the anti-rocking property of containers;
3. CMS intelligent service management system, real-time monitoring of equipment running status;
4, vector frequency conversion, electric energy feedback (power for mains or lithium battery), torque balance control technology, energy saving and environmental protection, convenient and efficient;
5. Automatic fault detection and real-time data display technology, safe and reliable;
6, special truck correction and fine tuning technology, personalized steering, jacking, anti-tipping design;
7, provide a variety of operation modes -- manual semi-automatic remote operation, advanced technology, stable performance;
8, with automatic operation positioning, intelligent box to box, trajectory intelligent control, intelligent safety protection and other core technologies;
9, wind alarm, security dynamic scanning and other safety measures are complete.
Product Paramenters
RTG Container Gantry Crane 50ton 60ton 100ton Cabin Control with GPS Auto-Steering Energy Saving for Container Terminals
Model
LJ35/40-23
LightType LJ40-23
Capacity（under spreader）（t）
35,40
40
Work Duty
A7,A8
A6,A7
Span(m)
23.47
23.47
Lifting Height(m)
12.2~17.8
16.5
Stack Layers/Passing Layers
3/4~5/6
5/6
Container Model
20',40',45'
20',40',45'
Spreader Rotating Angle
±5°
±5°
Hoisting Speed(m/min)
13/26,23/52
12/18,18/28
Cross Travel Speed(m/min)
50,70
24
Long Travel Speed(m/min)
full load-90,without load-130
full load-20,without load-40
Max Wheel Load(kN)
310
310
Total Rating(kW)
150,230
110,150
Power Supply
Electric, Diesel Engine, Electric-Diesel Drive

Main Products
RTG Container Gantry Crane 50ton 60ton 100ton Cabin Control with GPS Auto-Steering Energy Saving for Container Terminals
Zehua focus on intelligent, lightweight, and green production, offering 5 core product lines: intelligent lightweight cranes, multi-functional industrial cranes, port cranes, ship cranes, and metallurgical cranes. These are widely used across machinery, energy, aerospace, and other key industries. Certified with ISO9001, ISO14001, ISO45001, and CE, our products are exported to 100+ countries. Backed by 24/7 technical support.
RTG Container Gantry Crane 50ton 60ton 100ton Cabin Control with GPS Auto-Steering Energy Saving for Container Terminals
RTG Container Gantry Crane 50ton 60ton 100ton Cabin Control with GPS Auto-Steering Energy Saving for Container Terminals
Company Profile
Zehua Heavy Machinery is a professional lifting equipment provider specializing in R&D, manufacturing, and one-stop services for high-performance cranes. Boasting a 24,000㎡ standardized workshop, we ensure timely deliveries even in extreme weather, while advanced precision technology keeps our products aligned with international quality standards. Our team, with 20+ years of experience from state-owned crane factories, delivers tailored solutions for every customer. We focus on intelligent, lightweight, and green production, offering 5 core product lines: intelligent lightweight cranes, multi-functional industrial cranes, port cranes, ship cranes, and metallurgical cranes. These are widely used across machinery, energy, aerospace, and other key industries. Certified with ISO9001, ISO14001, ISO45001, and CE, our products are exported to 100+ countries. Backed by 24/7 technical support, Zehua is your trusted partner for intelligent, efficient, and safe material handling solutions—working to build a century-old crane brand.
