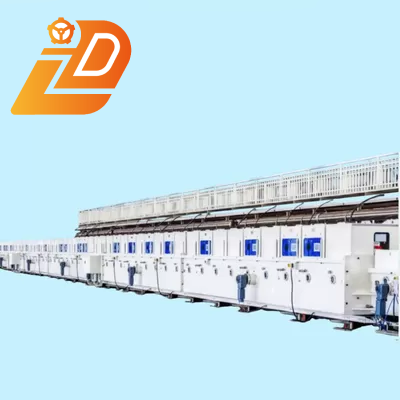

Continuous Magnetron Sputtering Coating Line with Real-time Monitoring 2500mm Working Width and Fully Automated Feedback Control for PVD Coating
Continuous Magnetron Sputtering Coating Line with Real-time Monitoring 2500mm Working Width and Fully Automated Feedback Control for PVD Coating
Specifications
Brand Name :
Zhongda
Certification :
CE
Place of Origin :
Zhaoqing, Guangdong
MOQ :
1
Delivery Time :
40-60 work days
Coating Monitoring System :
Real-time
Working Width :
2500mm
Colour Mode :
Customizable
Coating Control System :
PLC
Coating Method :
Magnetron sputtering
Pump time :
5*10-2pa<5mins
Ultimate vacuum :
6*10-4pa
Water pressure :
more than or equal to 0.2Mpa 3m3/h
water temperature :
is less than or equal to25Celsius system
gas pressure :
0.4-0.8Mpa
Substrate Material :
metal,glss
Condition :
NEW
Chamber Materia :
304 Stainless Steel
Coating Thickness :
Adjustable
Color :
Gold, silver, blue, grey, Etc.
Coating Film Material :
Au, Ag, Al, Cu, SiO2, etc.
Coating Substrate :
glass
Vacuum Chamber Material :
Stainless Steel Or Carbon Steel
Automationlevel :
Fully Automated with Feedback Control
Coolingsystem :
Water Cooling or Air Cooling
Dimensions :
Depends on configuration, approx. 15m x 3m x 2.5m
Length :
Customizable
Coating Color :
Silver, Gold, Rose Gold, Black, etc.
Powersource :
DC, RF, or Pulsed Power Supply
Description
Metal Substrate Continuous Magnetron Sputtering Coating Assembly Line
Advanced PVD coating system designed for high-volume production of precision coatings on various substrates including glass, metal, and acrylic materials.
Key Features & Capabilities
  • High-output continuous coating line with annual capacity exceeding 200 million square meters
  • Versatile coating applications: glass curtain walls, aluminum mirrors, reflection mirrors
  • Advanced rotation cathode and flat cathode magnetron sputtering targets
  • Multilayer film deposition including metal oxides, metal nitrides, and complex films
  • Low-emission film coating capabilities for energy-efficient applications
  • Compatible with small curvature arc-shaped glass substrates
  • Multicellular transmission system ensuring superior film homogeneity and physical properties
Technical Configuration
Chamber Structure High-efficiency horizontal continuous magnetron coating assembly line with front/back roughing pumping chambers, transition chamber, refining pumping chamber, buffer chamber, and color plating chamber
Target Design Advanced rotation cathode target and flat cathode target configurations
Power Configuration High-power medium frequency magnetron sputtering power supply
Electrical Control PLC-controlled production line with industrial computer display system
Human-Machine Interface Interactive control system with alarm reminders and malfunction display for operator guidance
Transmission System Roller transmission with frequency conversion; compatible with glass and flat board substrates
Advanced System Features
Our production line incorporates advanced slide dampers for efficient chamber separation, ensuring stable process gas environments and consistent coating quality.
The optimized input pipe structure design provides uniform and gentle gas flow distribution throughout the coating process.
Applications
Primarily designed for coating flat glass, acrylic boards, and metal materials with single-layer films, alloy films, or metal compound films.
Ideal for large-area glass coating, reflector glass coating, and meeting diverse sputtering coating requirements across industrial applications.
Customization Options
Available for custom sizing to meet specific production requirements and substrate dimensions.
