Optical Electron beam Coating Machine with Precise Monitoring, Custom Made Chamber Size, and High Purity Coating Materials
Optical Electron beam Coating Machine with Precise Monitoring, Custom Made Chamber Size, and High Purity Coating Materials
Specifications
Brand Name :
Zhongda
Certification :
CE
Place of Origin :
Zhaoqing, Guangdong
MOQ :
1
Delivery Time :
45-60work days
Coating Method :
Electron Beam Evaporation
Rotation Stand :
2 Sets
Filmuniformity :
±3%
Working Theory :
Resistance Evaporation
Coating Hardness :
≥Hv800
Chamber Size :
Custom Made
Evaporation Source :
2 Sets
Dimensions :
2000mm x 1500mm x 1800mm
Depositionrate :
0.1 to 10 nm/s
Chamber Material :
Stainless Steel 304 Or Carbon Steel
Operation Mode :
Manual/Automatic
Chambermaterial :
Stainless Steel
Chamber Materia :
304 stainless steel
Pump Brand :
Chinese
Type :
Coating Machine
Description

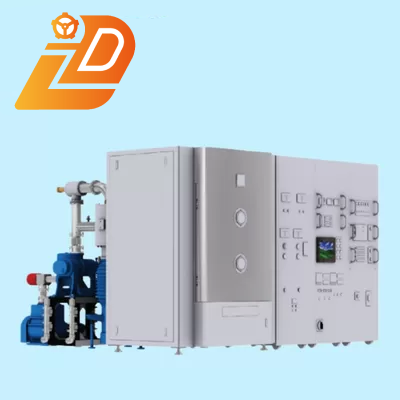

Optical Electron Beam Coating Machine
Advanced vacuum coating equipment providing precise monitoring and adaptability for various optical component coatings with superior performance characteristics.
Core Characteristics
Compared with conventional resistance heating and small electronic beam coating equipment, large optical electron beam vacuum coating systems offer significant advantages in heating efficiency, film layer accuracy, adaptability, and automation.
Key Features
  • High-Energy Electron Beam Evaporation Source: Precise heating with high purity coating materials
  • Ultra-High Vacuum & Film Control: Advanced monitoring systems meeting optical-grade requirements
  • Large Capacity & Flexible Configuration: Compatible with various types of optical components
  • Automation & Intelligence: Optimized for large-scale production with reduced human error
Application Areas
This equipment specializes in preparing high-performance optical films for multiple high-end manufacturing sectors including optical instruments, optoelectronic displays, semiconductors, and laser technology.
Optical Instruments & Imaging Systems
Core coating equipment for cameras, microscopes, telescopes, and imaging systems. Capable of depositing:
  • Anti-reflection films to increase lens transmittance and reduce glare
  • High-reflection films for reflectors with reflection rates ≥ 99.5%
  • Diffraction films for proportional light splitting in projectors and optical sensors
Example: Multi-layer anti-reflection films for single-lens reflex cameras prepared through alternating deposition of SiO₂ (low refractive index) and TiO₂ (high refractive index) materials.
Large-Diameter Optical Components
Specialized coating for astronomical telescope mirrors, lithography machine projection lenses, and other large components requiring exceptional film uniformity and purity.
Optoelectronic Display & Consumer Electronics
Applications in display panel optical films and consumer electronics components:
  • Brightening films, anti-reflection films, and filter films for LCD and OLED panels
  • Infrared cutoff filters for mobile phone cameras
  • Optical lenses for 3D face recognition modules and VR/AR devices
Semiconductor & Laser Technology
Critical applications in semiconductor manufacturing and laser systems:
  • Optical components for lithography machines and semiconductor lasers
  • Filter films for photodetectors
  • High-threshold high-reflection films for laser resonator mirrors
New Energy & Special Optical Fields
Advanced coating solutions for energy and specialized applications:
  • Anti-reflection films for solar photovoltaic cells to improve sunlight absorption
  • Optical lenses for concentrating photovoltaic systems
  • Specialized films for infrared optical components, aerospace
