Specifications
Brand Name :
Zhongda
Price :
above USD76,923
Coating Process :
Vacuum arcs coating
Coating Color :
Silver, Gold, Rose Gold, gun Black, rainbow color, etc.
Packaging Details :
packing with strech film, then pack with wooden box.
Coating Chamber Size :
Customized
Coating Material :
Ti, Cr, Zr, etc
Coating Temperature :
≤200℃
Place of Origin :
Zhaoqing, Guangdong
Payment Terms :
T/T
Coating Application :
Decorative, Functional, Protective
Coating Control System :
PLC/Touch Screen
Certification :
CE
MOQ :
1
Delivery Time :
45 wording days
Model Number :
ZD-125-TI
Coating Power Supply :
arc power supply
Coating Technology :
Multi Arc Ion
Supply Ability :
10 sets /month
Coating Size :
Customized
Description
ZD-125-ZT High Quality PVD Multi Arc Ion Vacuum Coating Machine
Advanced PVD coating equipment for decoration hardware, ceramic, plastic, metal, glass, titanium, and furniture applications.
Technology Overview
Multi-arc ion plating is a PVD technique that uses high-current arcs (100-500 A) to vaporize metallic or ceramic targets in a vacuum chamber (pressure < 10⁻² Torr). The ionized vapor is accelerated toward the substrate by a bias voltage, forming dense, ultra-hard coatings with superior adhesion. This method excels in depositing nitride, carbide, and oxide films such as TiN, TiAlN, CrN, etc. Arc ion plating machines are popular for industrial and decorative applications.

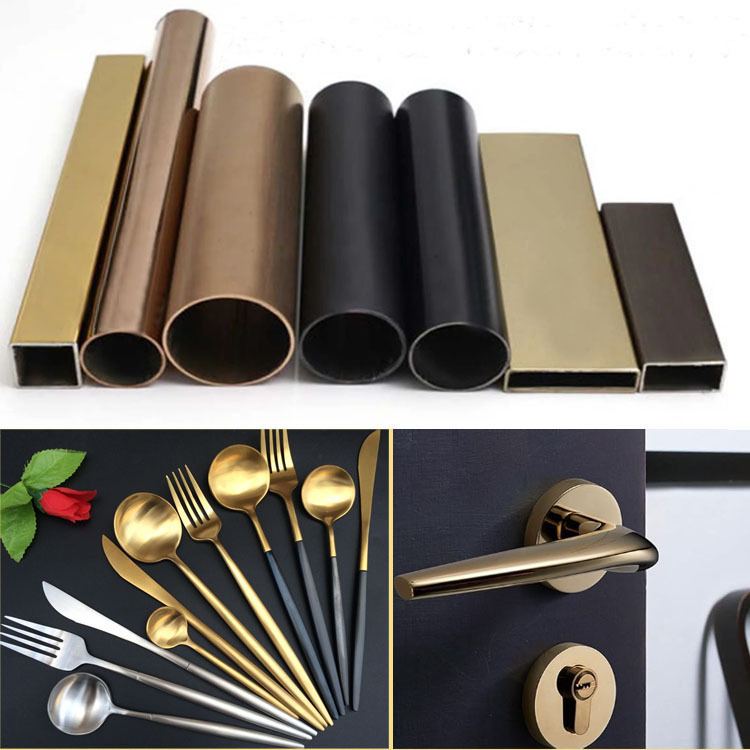

Coating Effects & Colors
The machine can achieve various colors on products, including golden, rose gold, bronze, antique-bronze, coffee, blue, purple, and black.
Color Series
  • Imitation Gold Series: TiN, ZrN, TiN+Au, ZrN+Au
  • Rose Gold Series: TiCN, TiAlN, TiCN+Au-Cu, TiAlN+Au, Cu
  • Silver White Series: CrN, CrSiN, Zr (micro N)
  • Grey Series: Ti, stainless steel (S.S), (S.S) N
  • Coffee Color Series: TiCN, TiAlCN, ZrC
  • Blue Series: TiO, CrO, TiAlN
  • Black Series: TiC, TiC+iC, TiCN, TiAlN, TiAlCN, Ti (C,O), etc.
Models & Specifications
Model ZD-9090 ZD-1012 ZD-1215TI ZD-1416 Lion-1618 ZD-1820ion
Chamber Inner Size Φ900*900mm Φ1000*1200mm Φ1200*1400mm Φ1400*1600mm Φ1600*1800mm Φ1800*2000mm
Arc Source 4-6 units 8-10 units 10-16 units 14-16 units 16-18 units 18-20 units
Vacuum System: Oil diffusion Pump + Mechanical pump + Maintenance Pump + Roots Pump (the number of pumps are designed according to customer's need)
Control Mode: Manual, semi-auto, auto, touch screen operation, PLC or computer control
Cooling System: Water-cooling system
Remark: The specific configuration of coating equipment can be designed according to process requirements of coating products
Technical Configuration
Item Specifications
Chamber Structure Vertical front-door design with rear-mounted vacuum system; vacuum chamber made of high-quality SUS304 stainless steel
Multi-Arc Targets Standard configuration includes multiple sets of titanium or stainless steel targets
Rotation System Planetary rotation (spin + revolution) with frequency control
Vacuum System Diffusion pump (molecular pump optional) + Roots pump + Mechanical pump + Rotary vane pump (cryogenic pump optional)
Gas Control Multi-channel mass flow controllers (for precise gas flow regulation)
Bias Power Supply Single-stage pulsed bias power supply
Heating System Adjustable temperature range: Room temperature to 250°C (equipped with PID temperature control)
Control Mode Integrated manual, semi-automatic, and automatic operation; touchscreen HMI + PLC control
Water Supply Water pressure ≥ 0.2 MPa; Water flow rate ≥ 3 m³/h; Water temperature ≤ 25°C
Applied Industries
  • Hardware: Sanitary ware, door lock, hotel ware
  • Tools & Molds: Cutting tools, drill bits, punches and precision molds
  • Glassware: Glass cup, glass lamps, glass artworks, etc.
  • Automotive: Piston rings, alloy wheels, engine components and decorative trim
  • Consumer Goods: Watch straps and cases, mobile phone cases, jewelry, and pens
  • Medical: Sterile, bio-compatible coatings for surgical instruments

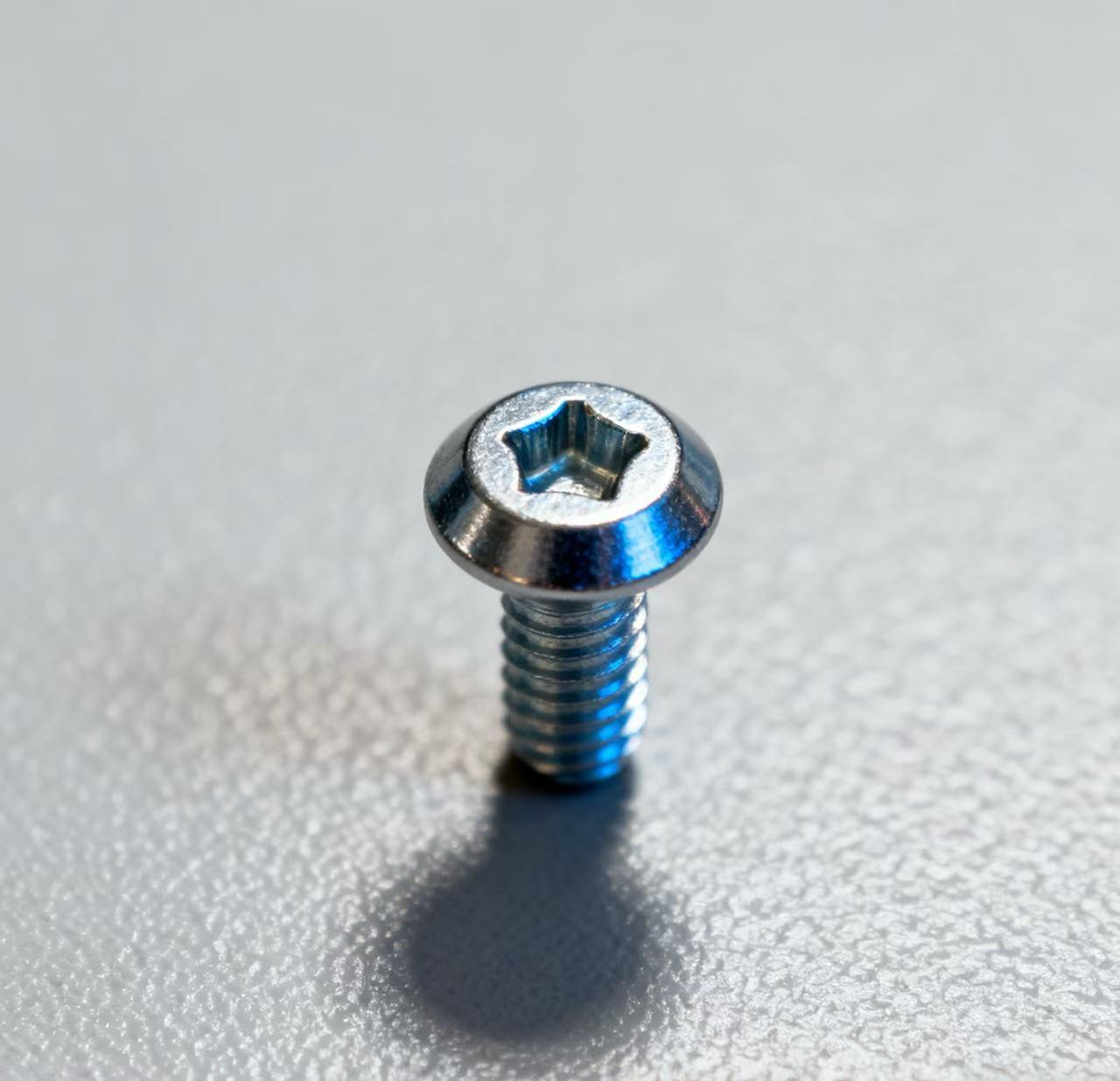

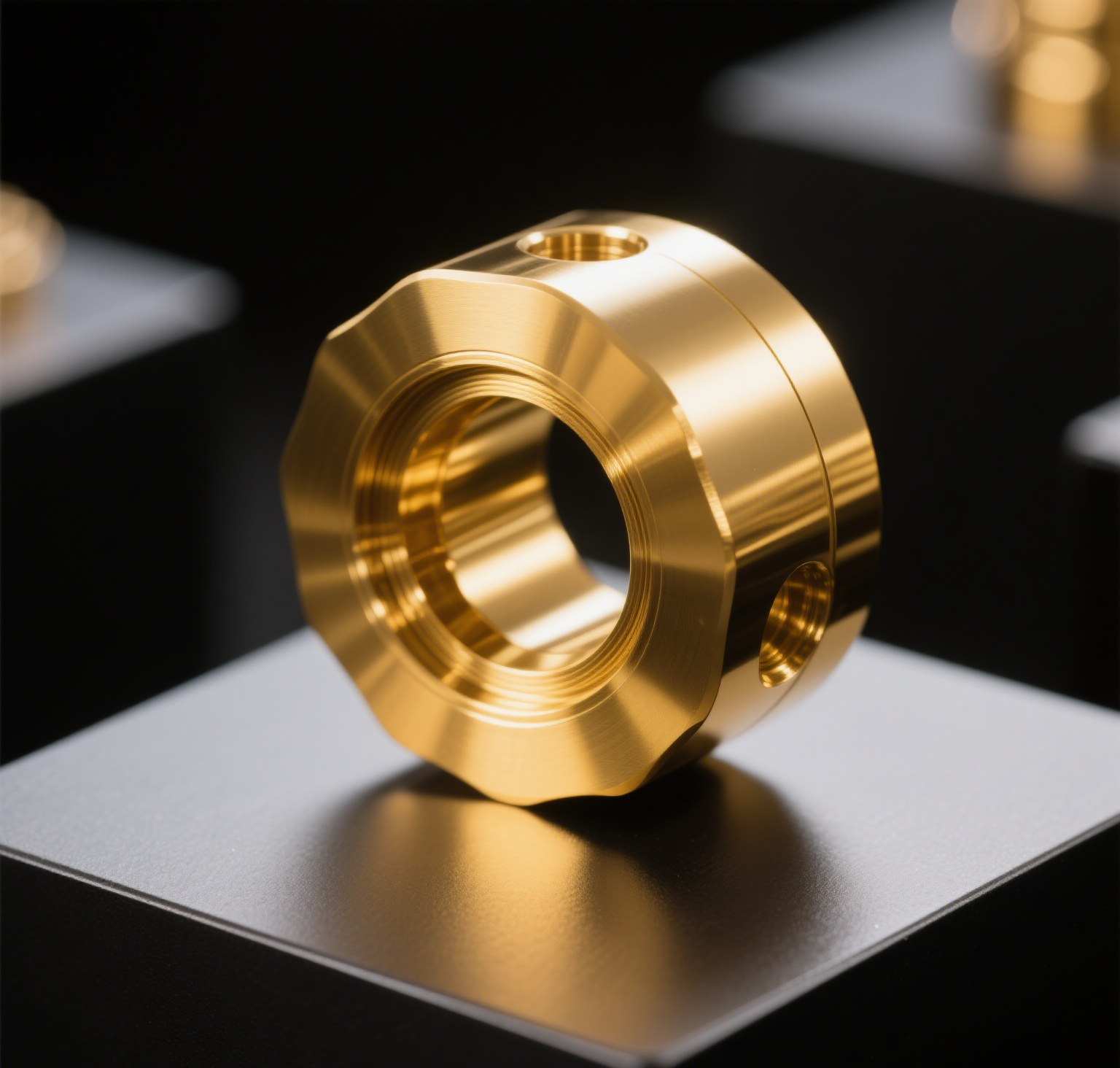

Product Images
ZD-125-ZT Multi Arc Ion Vacuum Coating Machine with PLC/Touch Screen Control and Customized Coating Size for Decorative and Functional Applications ZD-125-ZT Multi Arc Ion Vacuum Coating Machine with PLC/Touch Screen Control and Customized Coating Size for Decorative and Functional Applications ZD-125-ZT Multi Arc Ion Vacuum Coating Machine with PLC/Touch Screen Control and Customized Coating Size for Decorative and Functional Applications
