Front Open Style Small Size Vacuum Coating Machine with Multiple Function Coating for Cosmetics
Front Open Style Small Size Vacuum Coating Machine with Multiple Function Coating for Cosmetics
Specifications
Payment Terms :
T/T
Model Number :
ZD-8090
High vacuum pumps :
diffusion pumps
MOQ :
1 Unit
Delivery Time :
30 working days
Rotation system :
Planet rotation
Packaging Details :
packing with strech film, then pack with wooden box.
Price :
above USD15,384
Machine surface color :
white or OEM
Supply Ability :
10 sets /month
Certification :
CE
chamber size :
OEM
Brand Name :
Zhongda
Machine chamber :
carbon steel or SUS304
Place of Origin :
Zhaoqing city, Guangdong, China
Quality warranty :
1 year
Description
OEM Low Price Front Open Small Size Vacuum Coating Machine for Cosmetics Products
Machine Overview

The front door open small size vacuum coating machine is widely used for small products such as jewelry PVD coating, cosmetic metalizing, and toys vacuum coating. The single door design reduces machine cost, making it ideal for lower quantity production with high quality output.

The machine can coat Al, Cr, Ni, In, MgF, ZnS, and other materials to achieve metal effects, NCVM function coating, rainbow color coating, and more.

Key Features
  • Smaller size at low cost
  • Stable quality coating film
  • Multiple function coating
  • Easy operating
  • Long service time
Technical Specifications
Item Detail Information
Chamber size OEM size (φ600x800H, φ800x900mm, φ1000x1200mm, φ1400mmx1600mm...)
Chamber style Front open style, single door
Chamber material SUS304 stainless steel or carbon steel
Machine Serial Evaporation metallizing coating
Coating system Evaporation transformer
Clean system High voltage cleaning system with argon
Vacuum pumps Diffusion pumps, roots pumps, mechanical pumps
Machine control system Touch screen + Mitsubishi PLC
System language Chinese & English or others for switch
Applications

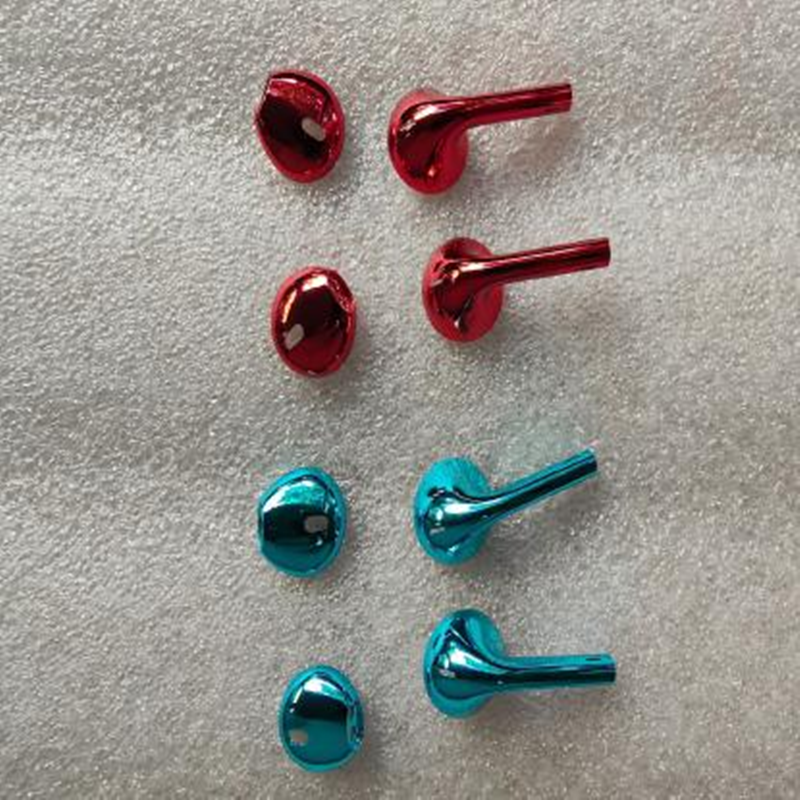

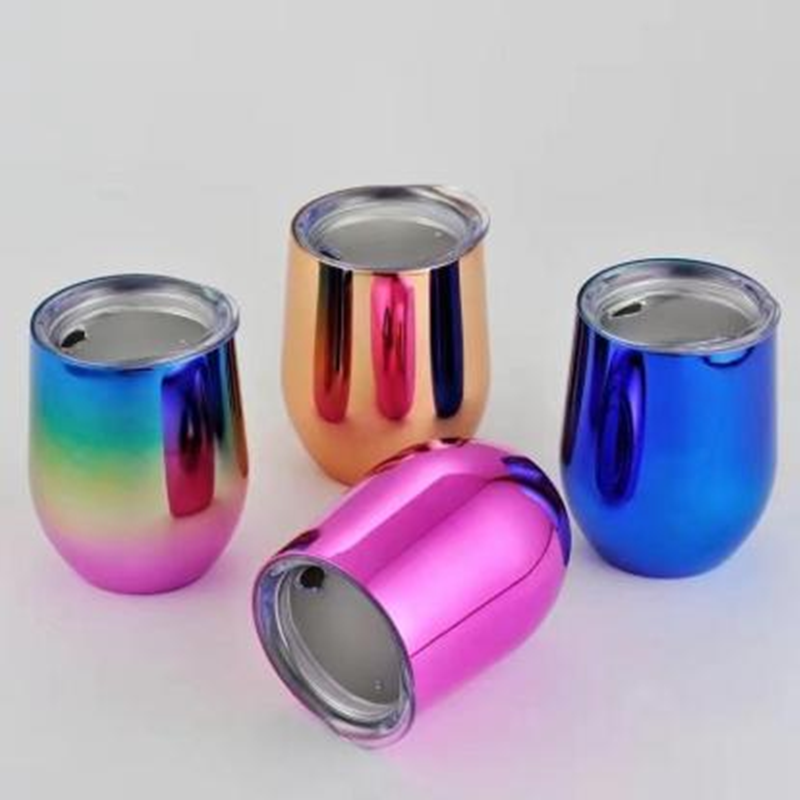

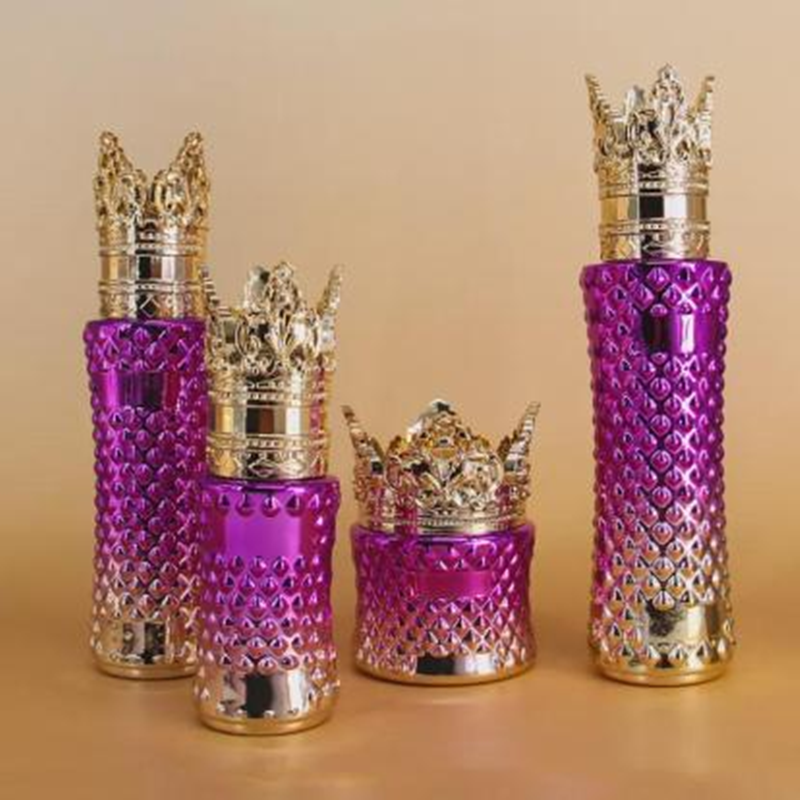

This series of small size vacuum PVD machines are mainly used for customers who produce lower production quantities, including cosmetic industry, toys, earphones, glass products, lights.etc

Front Open Style Small Size Vacuum Coating Machine with Multiple Function Coating for Cosmetics Front Open Style Small Size Vacuum Coating Machine with Multiple Function Coating for Cosmetics Front Open Style Small Size Vacuum Coating Machine with Multiple Function Coating for Cosmetics
