ZD-2530GX Vacuum Optical Coating Machine with Multi-layer Coating, Touch Screen Control, and Ion Source Cleaning
ZD-2530GX Vacuum Optical Coating Machine with Multi-layer Coating, Touch Screen Control, and Ion Source Cleaning
ZD-2530GX Vacuum Optical Coating Machine with Multi-layer Coating, Touch Screen Control, and Ion Source Cleaning
ZD-2530GX Vacuum Optical Coating Machine with Multi-layer Coating, Touch Screen Control, and Ion Source Cleaning
ZD-2530GX Vacuum Optical Coating Machine with Multi-layer Coating, Touch Screen Control, and Ion Source Cleaning
ZD-2530GX Vacuum Optical Coating Machine with Multi-layer Coating, Touch Screen Control, and Ion Source Cleaning
ZD-2530GX Vacuum Optical Coating Machine with Multi-layer Coating, Touch Screen Control, and Ion Source Cleaning
ZD-2530GX Vacuum Optical Coating Machine with Multi-layer Coating, Touch Screen Control, and Ion Source Cleaning
Specifications
Payment Terms :
T/T
Model Number :
ZD-2530GX
MOQ :
1 Unit
Delivery Time :
60 working days
Packaging Details :
packing with strech film, then pack with wooden box.
Price :
above USD76,923
Supply Ability :
10 sets/2 month
Certification :
CE
Brand Name :
Zhongda
Place of Origin :
Zhaoqing city, Guangdong, China
Description
Stable Quality ZD-2530GX Vacuum Thin Film Optical Coating Machine
Machine Overview

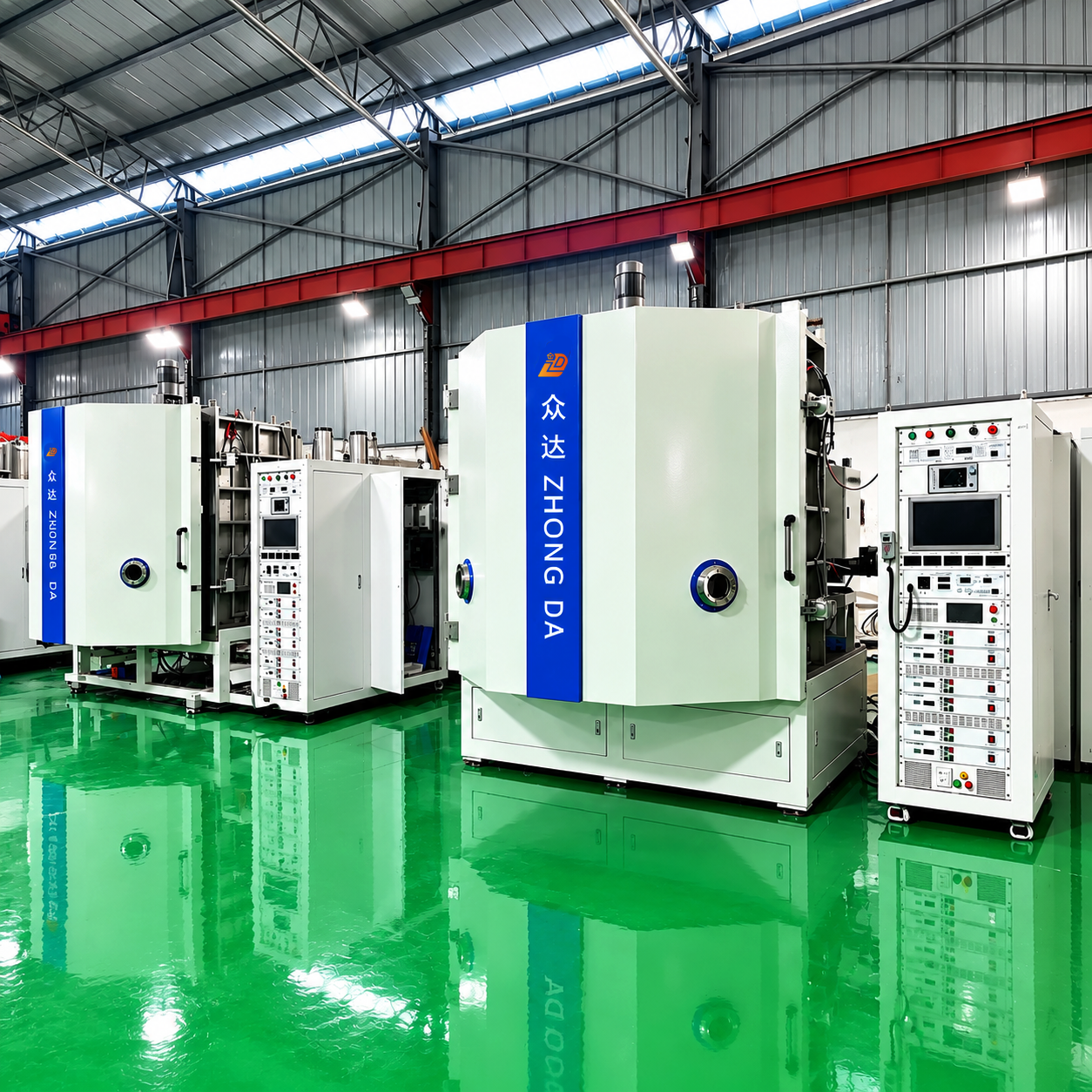

The ZD-2530GX vacuum optical coating machine features electric beam sources and ion source for pre-coating product cleaning, significantly improving coating film adhesion. Equipped with a renowned brand film thickness deposit controller for online coating thickness measurement. The inner chamber includes an umbrella-shaped rotation shelf for convenient product loading and unloading.

Key Features

  • High production quantity
  • Precise real-time detecting
  • Good purity film layer
  • Easy operation
Technical Specifications

Item Detail Information
Chamber Size φ2530×2050mm height (inner size) (other sizes available)
Chamber Style Horizontal design, single door
Chamber Material SUS304 stainless steel
Machine Serial Optical film vacuum coating series
Coating System 4 sets of electric beam + φ200 crucible
Clean System 2 sets of ion source
Vacuum Pumps 6 sets of turbo molecular pumps + 1 set 1320L/S roots pumps + Mechanical pumps
Water Vapor Cryopump 1 set of Guangzhou Xieyi XH2600 model water vapor cryopump
Machine Control System 15 inch touch screen + Mitsubishi PLC, machine language: both Chinese & English
Operating Mode Manual, Semi-auto, Full-auto
Applications

The optical coating machines are designed for various oxide and metal coating materials. Capable of depositing multi-layer precision optical films including AR, long-pass filters, short-pass filters, AS/AF IRCUT filters, color filter systems, gradient color films, and more. Widely used in mobile phone glass covers, camera lenses, sunglasses, swimming goggles, PET & PMMA raw material sheets, and cosmetic industry applications.
